42 Multi Format LCD Monitor
<ZOOM 75%>
<ZOOM 50%>
<ZOOM OFF>

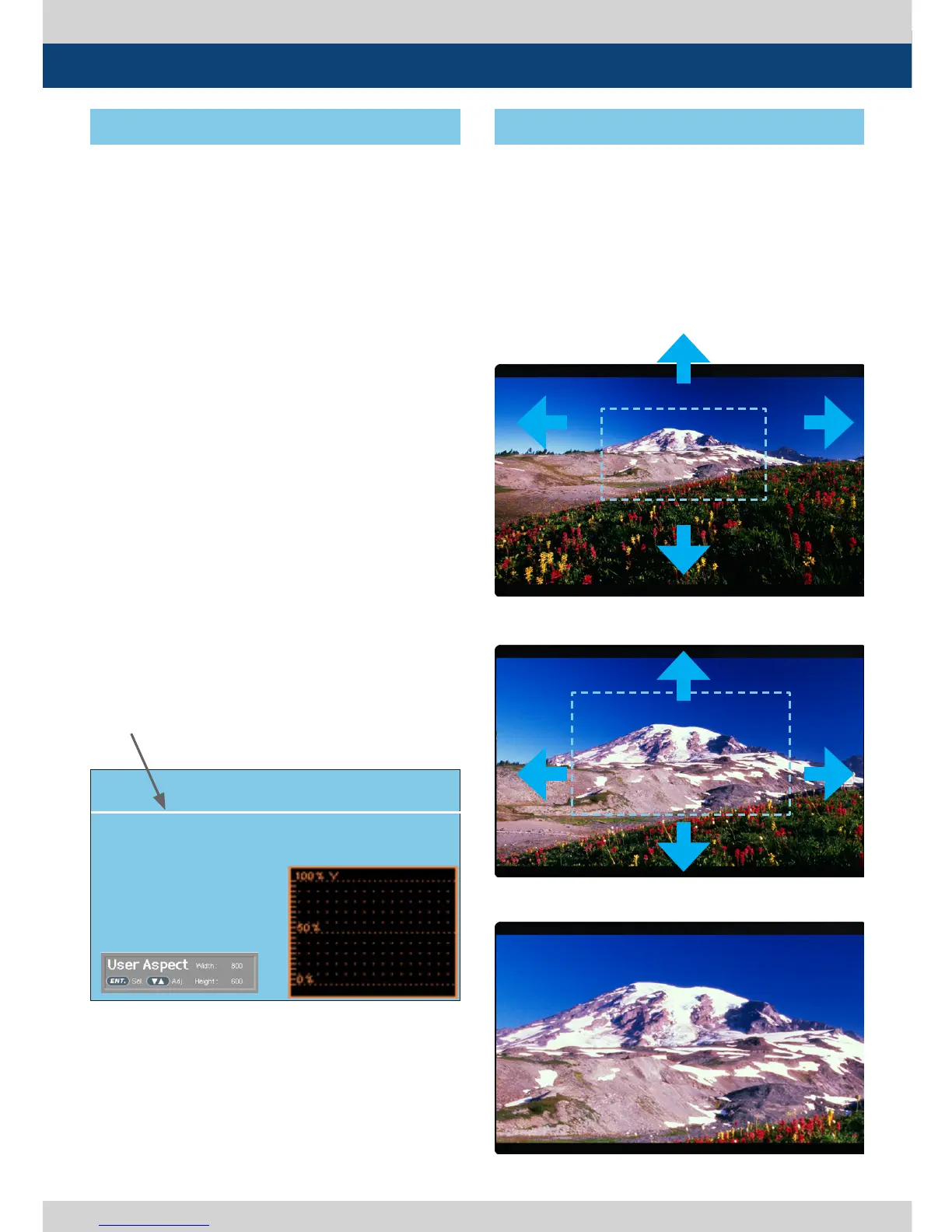

● Used to select specic Vertical Line for
WaveForm/VectorScope.
- It is available when LINE WaveForm is
activated.
- To activate this feature, go to [Waveform]-
[Select Line Position] and use the Knob to
select a vertical line.
- Control range varies according to the
resolution of the input SDI signal. (shows in
active line)
* PAL : Min 17, Max 522
* NTSC : Min 23, Max 623
* 720p : Min 26, Max 750
* 1080i : Min 21, Max 1123
* 1080p : Min 42, Max 1121
- Control range for HDMI/Analog signal varies
according to the output resolution of the
signal.
* LVM-176W/182W : Min 0, Max 768
* LVM-232W/246W : Min 0, Max 1080
* Selected line is
indicated on the screen.
[4] LINE SELECT
(Waveform/Vectorscope)
[5] ZOOM
● Used to magnify the input signal from 0%
to 90%.
● Supports Zoom Width Scroll / Zoom
Height Scroll function.
● Zooms IN/OUT focused on the scrolled
area.
8. Other Functions
