TVLogic LVM-180A User Manual

05 MENU OPERATIONS
18
Multi Format LCD Monitor

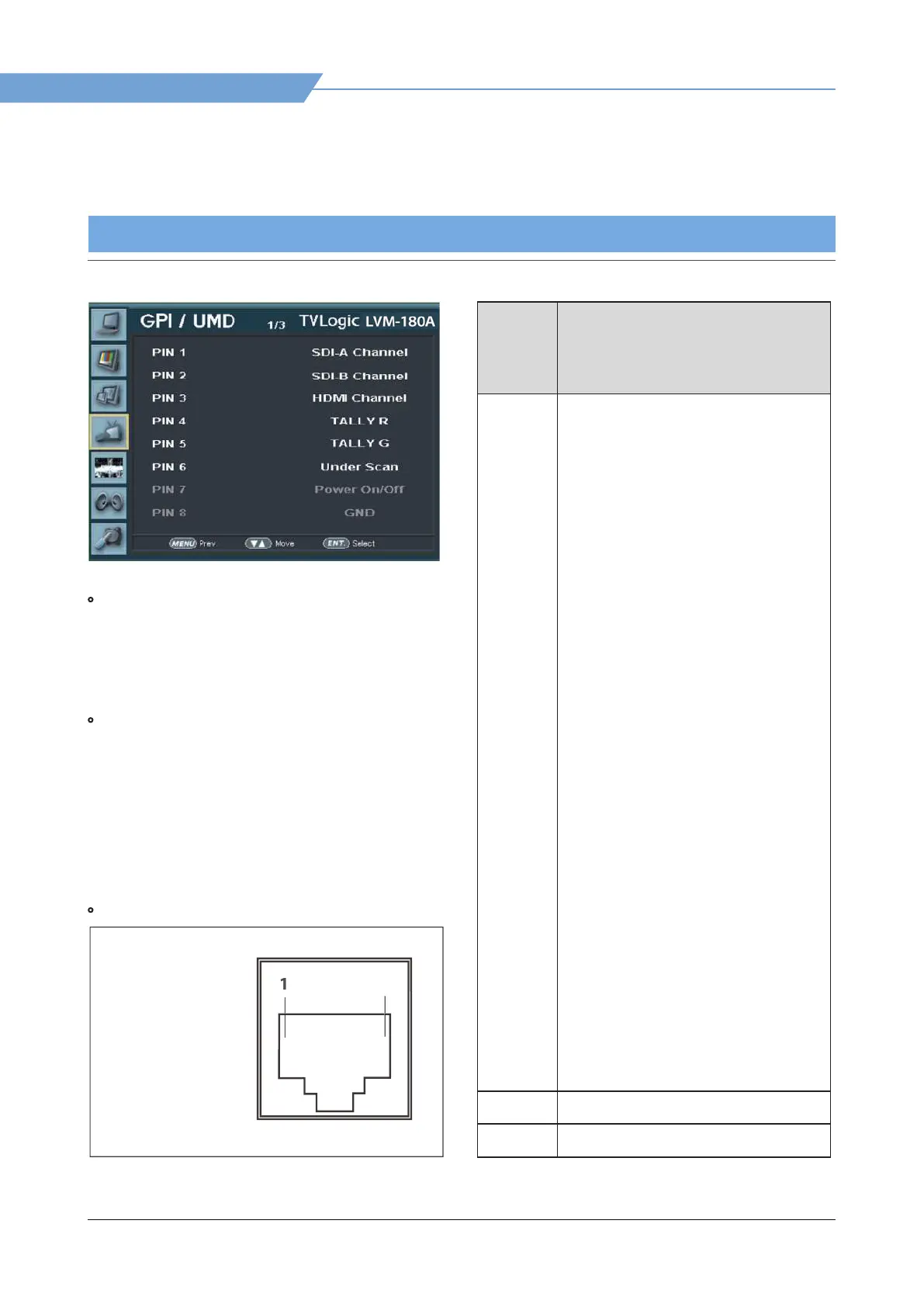

[4] GPI / UMD
REM
O
TE (
R
J
-45
)
1:
P
in1
2
:
P
in2
3:
P
i
n
3
4:
P
in4
5: P
i
n5
6:
P
i
n
6
7:
P
in7
8
:
G
ND
1
8
PIN No. Settable Values
PIN
1~6
NONE
ANALOG CHANNEL
DIGITAL CHANNEL
SDI-A/B CHANNEL
TALLY R
TALLY G
BLUE ONLY
UNDER SCAN
ASPECT
H/V DELAY
16:9 MARKER
15:9 MARKER
14:9 MARKER
13:9 MARKER
4:3 MARKER
4:3 ON AIR MARKER
1.85:1 MARKER
2.35:1 MARKER
1.85:1 & 4:3 MARKER
CENTER MARKER
SAFETY AREA 80%
SAFETY AREA 88%
SAFETY AREA 90%
SAFETY AREA 93%
SAFETY AREA 100%
D-UMD
FOCUS ASSIST
CC608(ANC)
CC608(LINE21)
CC708
PIN 7
POWER ON/OFF CONTROL
PIN 8
GROUND
• This product provides a REMOTE CONTROL
mode.
The user may connect RJ-45 jack to the
REMOTE terminal on the rear of the unit and
designate a function for each pin.
• The default settings are as follows :
PIN 1 : ANALOG Channel
PIN 2 : Digital Channel
PIN 3 : SDI-A Channel
PIN 4 : SDI-B Channel PIN 5 : TALLY R
PIN 6 : TALLY G
PIN 7 : POWER ON/OFF use only
PIN 8 : GND
• The pin positions are as follows :
