35
Multi Format LCD Monitor
08 OTHER FUNCTIONS

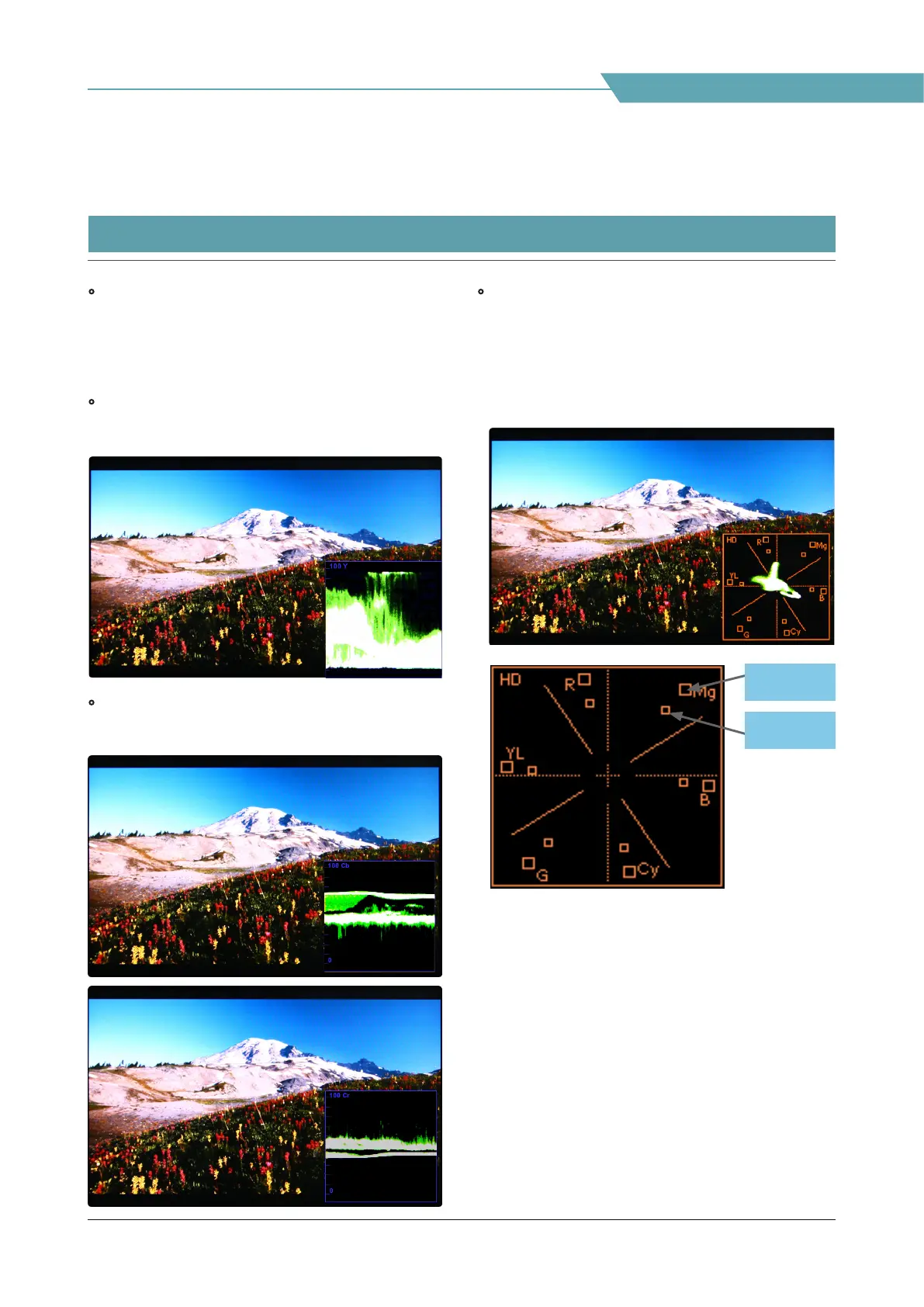

[3] WAVEFORM / VECTORSCOPE
• Waveform / Vector
- This function sets the Waveform and Vectorscope.
- Activates in order of O, Waveform, VectorScope,
Waveform Wide, Waveform YCbCr, Wave_Vector,
FULL Waveform(Y), FULL VectorScope.
• Waveform Y
- Displays the Luma(Y’) component of the input
signal into waveform.
• Waveform Cb, Cr
- Displays the Cb, Cr components of the input
signal into waveform.
• VectorScope
- Displays the color components ‘B-Y’ and ‘R-Y’ of
the input signals onto the X-Y axis.
- Two dierent types of VetorScopes are displayed
according to SD or HD input signals.
- 100% and 75% scales are indicated on the
VetorScope.
100%
75%
*Wave_Vector: Displays the Waveform(Y’) and
the Vectorscope simultaneously
*Vector_YCbCr: Displays the Vectorscope and
the Waveform(Y,Cb,Cr) simultaneously.
*Full waveform(Y): Displays the Waveform(Y) to
full screen.
*Full VectorScope: Displays the Vectorscope to
full screen.
