36
Multi Format LCD Monitor
08 OTHER FUNCTIONS

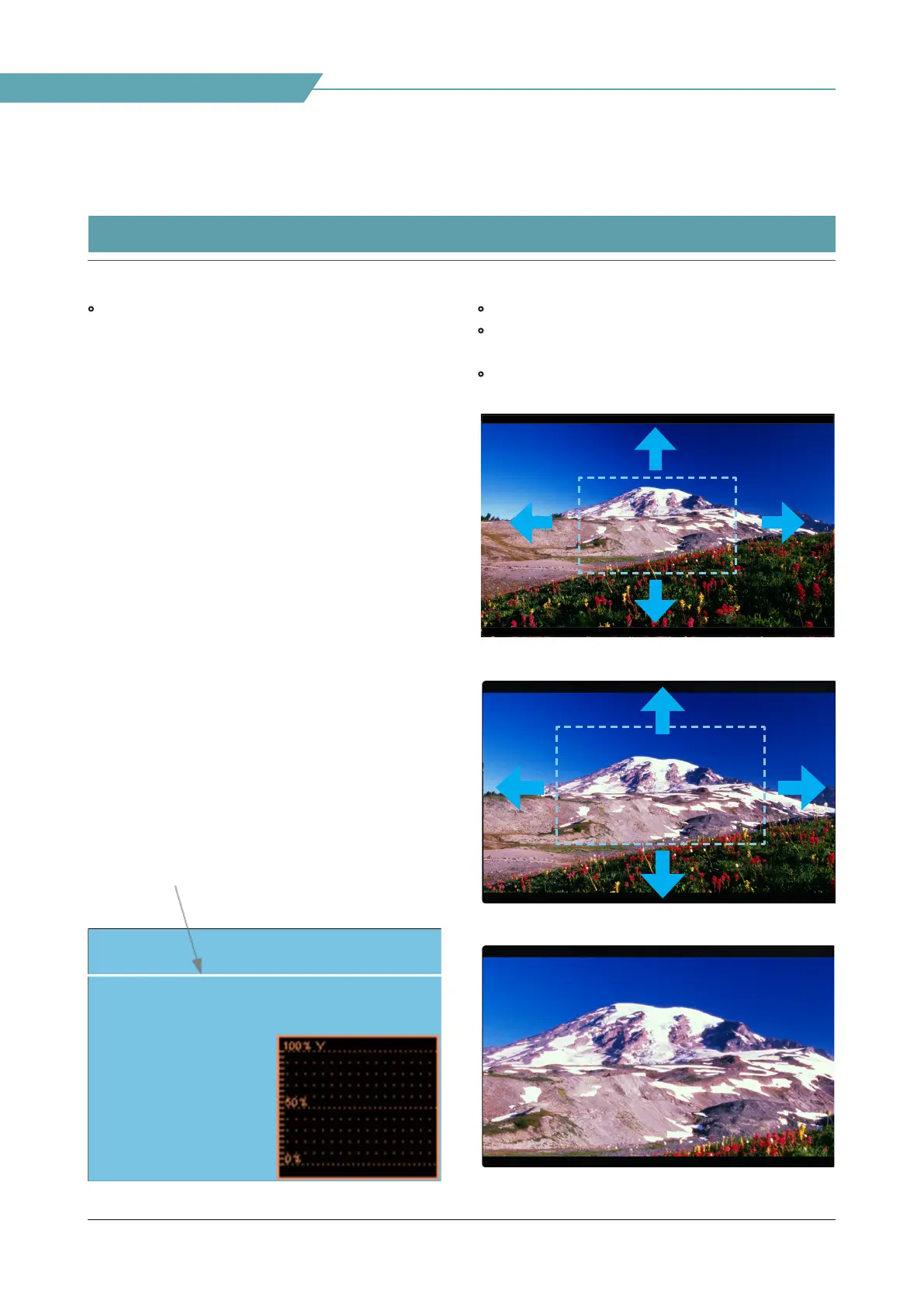

[4] SELECT LINE POSITION
(Waveform / VectorScope) /
[5] ZOOM
• Used to select a specic horizontal line for
WAVEFORM and VECTOR SCOPE.
- This function works when the [Line Waveform]
is activated.
- To activate this function, go to [Waveform] >
[Waveform type] and select [Waveform] or
[VectorScope] or other modes. And then, set
[Line Waveform] On and adjust the horizontal
line in [Select Line Position] using the Knob
button.
- Adjustment range varies according to the
resolution of the input SDI signal.
*PAL : Min 17, Max 522
*NTSC : Min 23, Max 623
*720p : Min 26, Max 750
*1080i : Min 21, Max 1123
*1080p : Min 42, Max 1121
- Adjustment range for HDMI and Analog signal
varies according to the output resolution of the
signal.
*Min 0, Max 1080
- The selected line is indicated in White on the
screen.
• Used to magnify the input signal from 0% to 90%.
• Supports Zoom Width Scroll / Zoom Height
Scroll function.
• Zooms IN/OUT focused on the scrolled area.
<ZOOM OFF>
<ZOOM 50%>
<ZOOM 75%>
