37
Multi Format LCD Monitor
08 OTHER FUNCTIONS
[6] LUMA(Y") ZONE CHECK
• COLOR PATTERN TYPE
- Displays the pixels with the designated
Luma(Y’) levels of the input image in colors.
Pixels whose Y’ level is over 100% are displayed
as Red. Pixels whose Y’ level is below 0% are
displayed as Green.
- Pixels with Y’ levels which are designated by
the user are displayed in following colors -
yellow, pink, cyan.
- Factory Default Y’ (Border line between pink
and yellow) level is 70%. The upper 2.5% and
lower 2.5% zone from the Y’ level set in
[LUMA(Y’) ZONE ADJUST] menu is displayed in
Pink. The upper 10% zone from the Pink zone
is displayed in Yellow, and the lower 10% zone
from the Pink zone is displayed in Cyan. So,
25% zone is displayed in colors and the other
75% zone is displayed mono and white.
• ZEBRA PATTERN TYPE
- Displays the pixels with the designated Luma(Y’)
levels of the input image in zebra pattern. Pixels
whose Y’ level is over 100% are displayed as red
diagonal stripes.
Pixels whose Y’ level is below 0% are displayed as
green diagonal stripes.
- Pixels with Y’ levels which are designated by the
user are displayed as black diagonal stripes.
- Factory Default Y’ level is 70%. The pixels with Y’
level from 65% to 75% are displayed as black
zebra pattern. So, totally 10% zone is displayed as
black diagonal stripes.
• LUMA(Y’) ZONE CHECK function is convenient to
set the exposure or the lighting so that the skin
tone or the specic color tone is correctly shot.

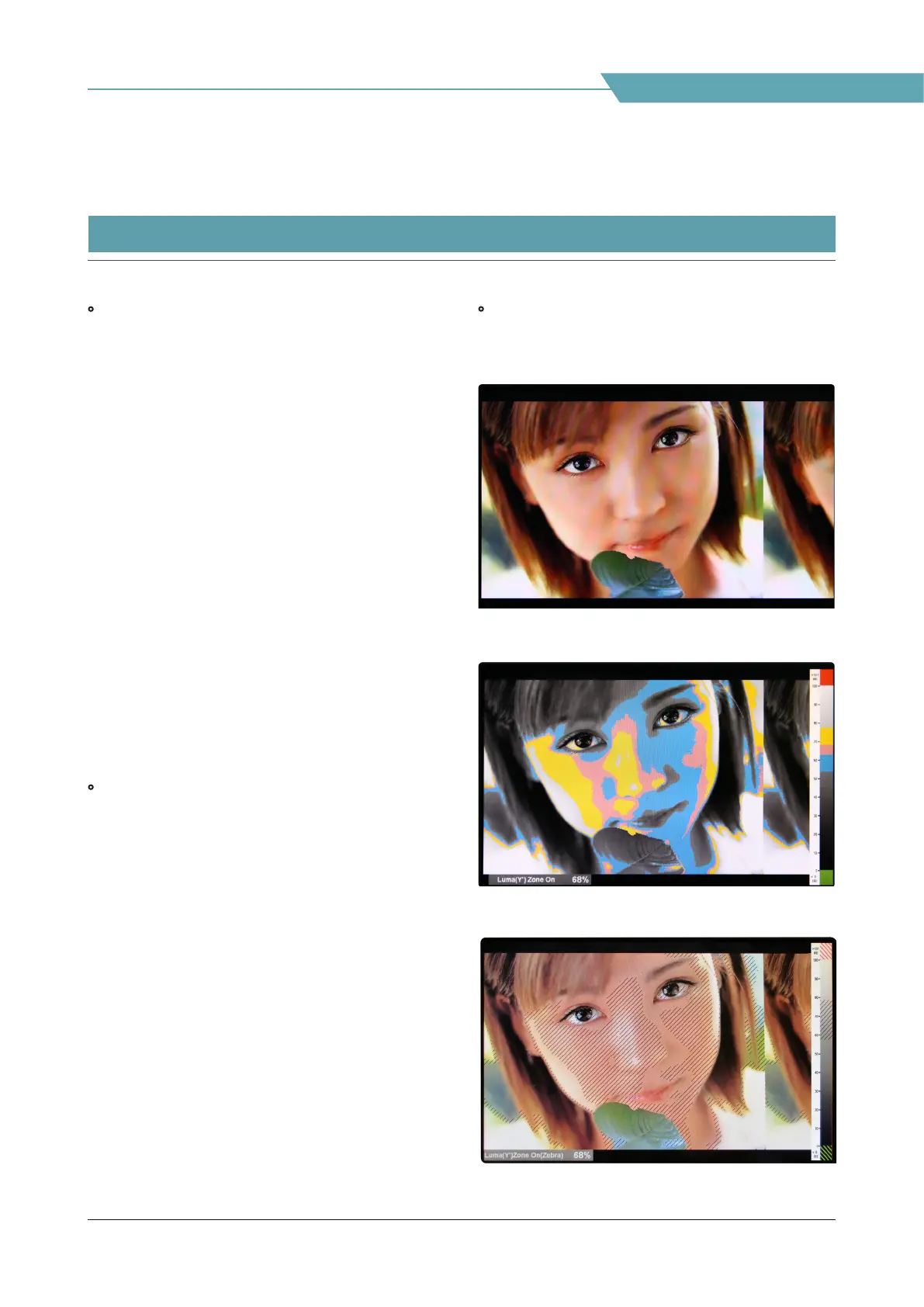

<Luma Zone Check OFF>
<Luma Zone Check ON_Color Pattern Type>
<Luma Zone Check ON_Zebra Pattern Type>
