05 MENU OPERATIONS
20
Multi Format LCD Monitor

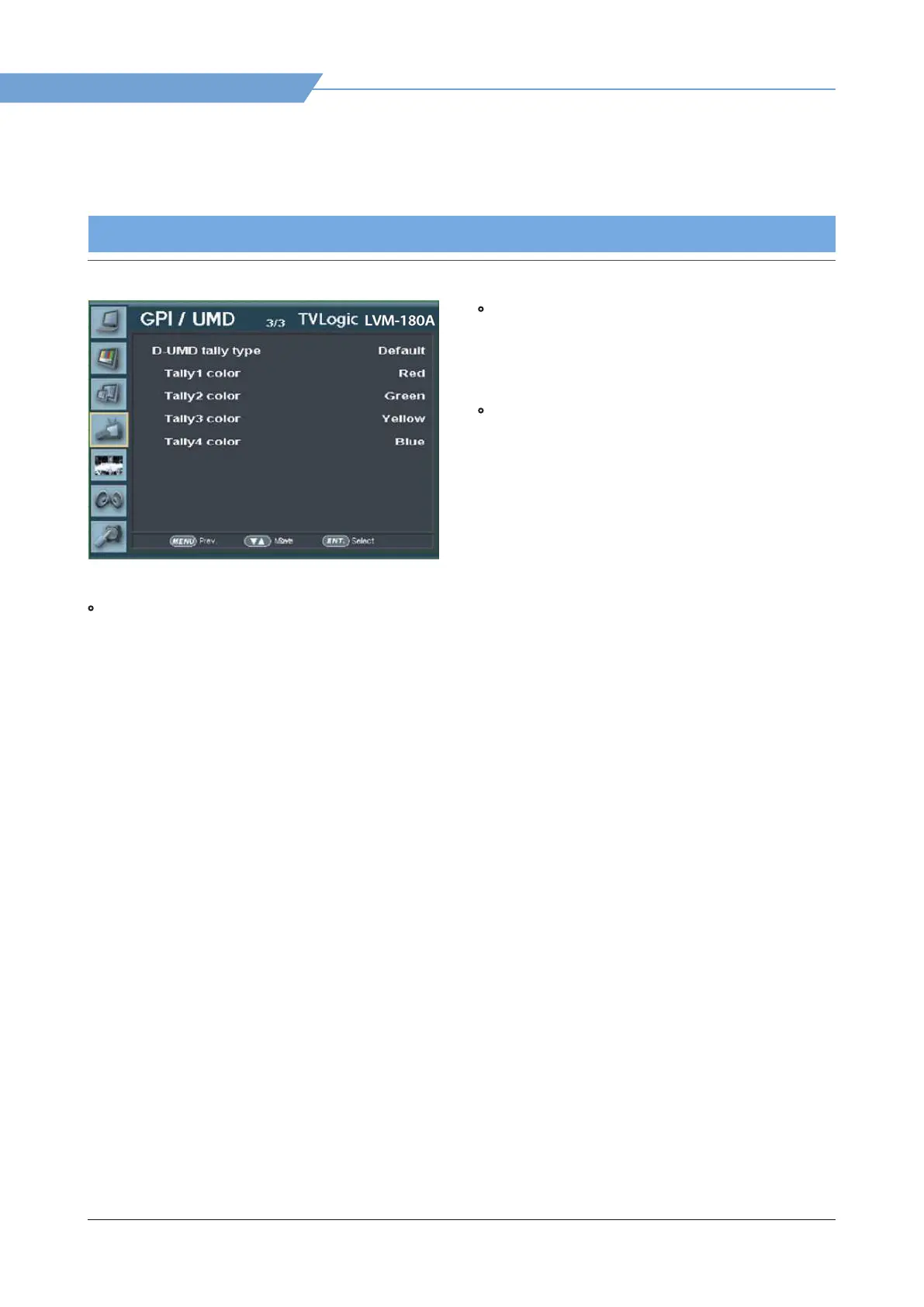

[4] GPI / UMD
• D-UMD tally type
- This menu sets the tally operation when
D-UMD(TVL_D8C) is set in UMD DISPLAY.
- The selectable values are [Default] and
[User Color].
* Default: Original TVLogic managing method
(VRT)
* User color: The user can set each tally color.
- When User color is selected, Tally1 Color ~
Tally4 Color items are activated.
* Character: Shows tally in the letter color.
The operation is the same as [Default].
* B.G. color: Show tally in the letter background
color. The operation is the same as [Default].
* User tally: This mode receives the signal fed as
bit0 and bit1 of TSL Protocol control byte,
adjusts the color the user wants, and then
shows the tally.
Available modes are O, White, Red, Green,
Blue, Yellow, Cyan, Magenta.
* User character: Shows tally in letter color.
The method is the same as User tally.
* User B.G.: Show tally in letter background
color.
The method is the same as User tally.
• Tally1 Color ~ Tally4 Color
- This menu sets the color of Tally1, Tally2, Tally3,
Tally4 respectively.
- The selectable colors are Red, Green, Yellow.
• B0:0 B1:0 ~ B0:1 B0:1
- This menu sets the color of the input condition
for byte0, byte1 in TSL Protocol Control Byte.
- The selectable colors are O, White, Red, Green,
Blue, Yellow, Cyan, Magenta.
Multi Format LCD Monitor
LVM-180A
