TVLogic LVM-180A User Manual

03 CONTROLS & FUNCTIONS
9
Multi Format LCD Monitor
LVM-180A REAR
• [Audio In] (PHONE JACK)
- Inputs external audio.
• [AC IN]
- 100 ~ 240V AC 50/60Hz
• [POWER S/W]
- Power On/O switch
• [DC IN]
- 12V DC
• [REMOTE] (RJ-45)
- Provides connection to control equipment for
external monitor control.
- Features can be changed in the [REMOTE]
section of OSD menu.
• [RS422 IN/OUT] (RJ-45)
- Controls the monitor by a protocol provided
by TVLogic or supports TSL protocol.
• [DVI-I] (DVI-I)
- Signal input terminal for DVI ANALOG or DVI
DIGITAL signal.
• [HDMI(HDCP)] (HDMI)
- Signal input terminal for HDMI signal.
• [CVBS IN] (BNC)
- Signal input terminal for COMPOSITE signal.
• [CVBS OUT] (BNC)
- Signal output terminal for COMPOSITE input
signal through CVBS-IN.
• [SDI-IN A] (BNC)
- Signal input terminal for 3G/HD/SD SDI signal.
• [SDI-IN B] (BNC)
- Signal input terminal for 3G/HD/SD SDI signal.
• [SDI-OUT] (BNC)
- Signal output terminal for 3G/HD/SD SDI input
signal through SDI-IN.
* SDI Output is not activated when the
unit is turned o or in Standby mode.
<WARNING!!>
When using the product make sure to ground,
whenever possible, before connecng the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal noise,
malfuncon of main board or display panel.
And the connected devices such as camera or
video source player may also be inuenced
through signal cable. Please check if the AC
power source and the power extender or
power distributor is grounded.

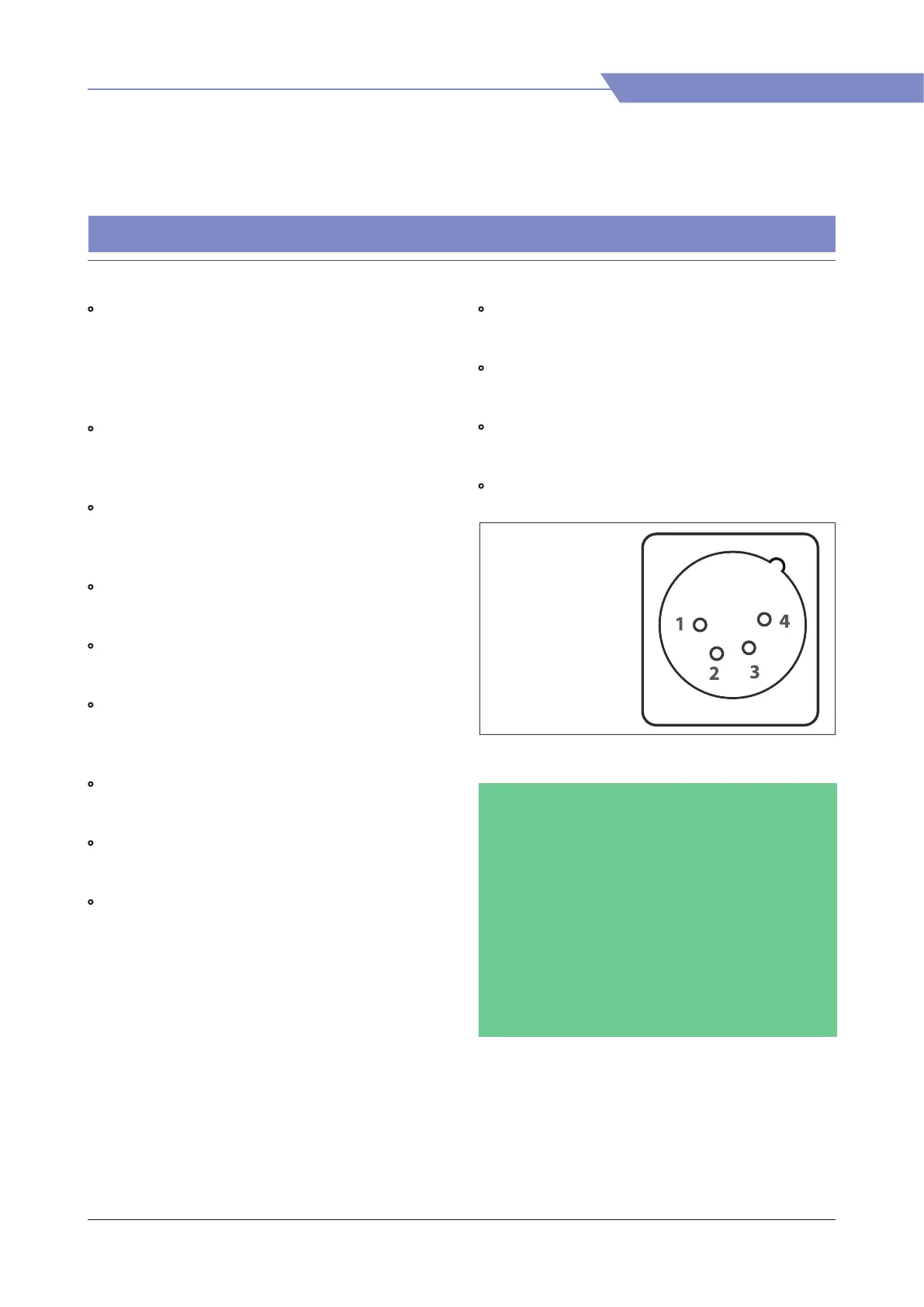

DC IN socket
1,2 : GND
3,4 : +12V
