TVLogic TSM-232W User Manual

22 TVLogic Security Monitor

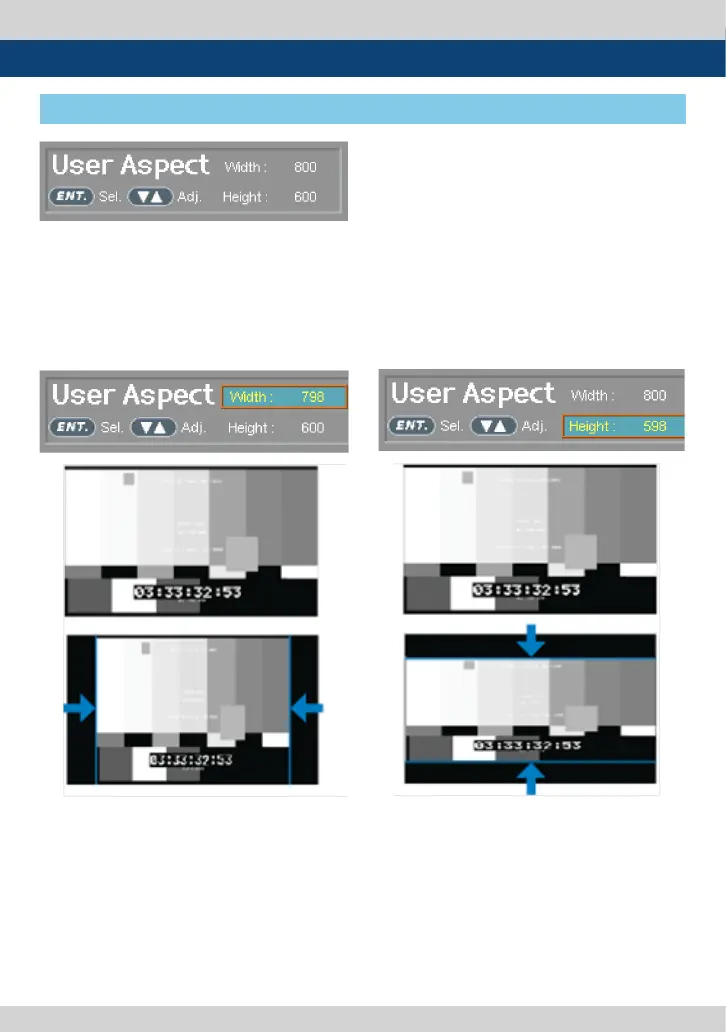

[4] USER ASPECT
● Select [Aspect] mode in the OSD menu to
activate the[User Aspect] mode.
● After activation, press the Knob to get
ready for controlling.
- Adjust the ratio using the Knob.
- Control range for width :
TSM-182W : Min[100] ~ Max[1366]
TSM-232W : Min[100] ~ Max[1920]
- Control range for height :
TSM-182W : Min[100] ~ Max[768]
TSM-232W : Min[100] ~ Max[1080]
- The size-adjusted picture always stay in the
center of the screen.
# To adjust the 16:9 aspect ratio of 1920X1080
resolution into 2.35:1 aspect ratio, adjust the
width and height as TSM-182W : 1366X582
TSM-232W : 1920X817.
8. Other Functions
