7. Button Functions
● TSM-182W/232W support CVBS analog
input signal.
1. Press [CVBS] in front of the monitor and
activate OSD menu as the left photo. Select
input you would like to use by Knob or UP/
DOWN KEY and press the knob.
2. There is current input signal on bottom of
OSD.
3. Press [CVBS] again, then OSD menu
disappears.
#If no image displays after selecting the
desired input mode, check and
make sure that your connection is not lose
or disconnected.
● TSM-182W/232W support HDMI input
signal.
1. Press [HDMI] in front of the monitor and
activate OSD menu as the left photo.
Select input you would like to use by Knob
or UP/DOWN KEY and press the knob.
2. There is current input signal on bottom of
OSD.
3. Press [HDMI] again, then OSD menu
disappears.
# If no image displays after selecting the
desired input mode, check and make sure
that your connection is not lose or
disconnected.
#None of HDMI and DVI-Digital can be co-
selected as each main input and PIP/PBP at
the same time.

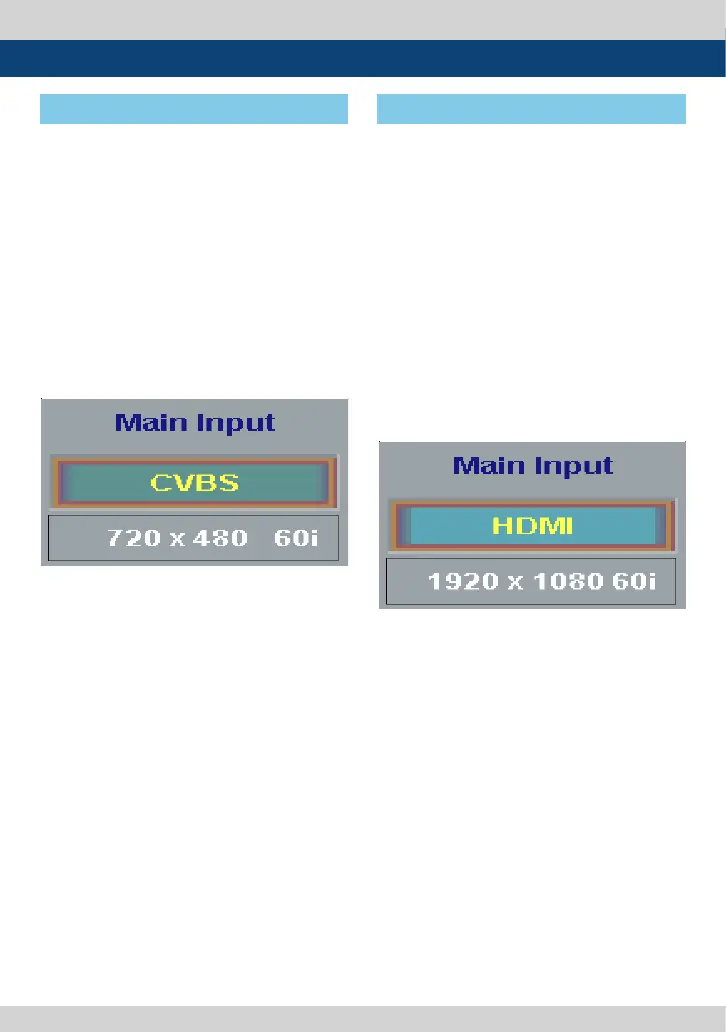

[1] ANALOG [2] HDMI INPUT
