20 TVLogic Security Monitor
● TSM-182W/232W support PIP/PBP MODE.

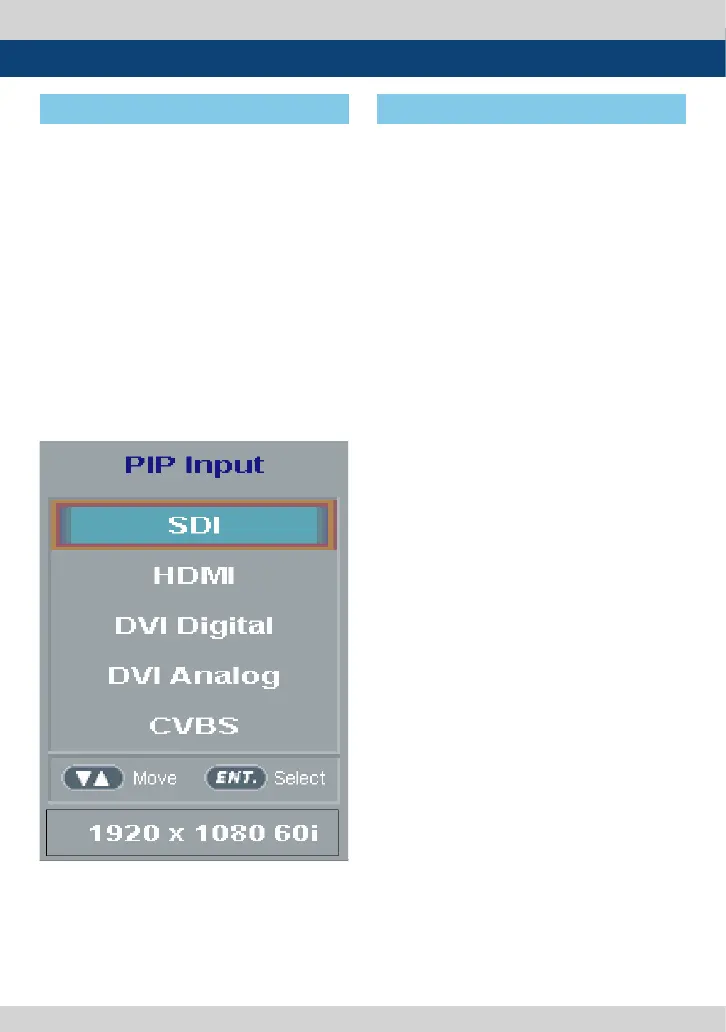

1. Press [SOURCE] in front of the monitor and
activate OSD menu as the left photo. Select
input you would like to use by Knob or UP/
DOWN KEY and press the knob.
2. There is current input signal on bottom of
OSD.
3. Press [SOURCE] again, then OSD menu
disappears.
#If no image displays after selecting the
desired input mode, check and
make sure that your connection is not lose or
disconnected.
None of HDMI and DVI-Digital can be co-
selected as each main input and PIP/PBP at
the same time.
[1] SOURCE INPUT
8. Other Functions
● Selects various aspect ratio.
- It changes in order of 16:9 > 4:3 > 2.35:1 >
1.85:1 > 15:9 > 16:10 > Auto.
* It sets output aspect ratio no matter what
kind of input signal.
[2] ASPECT
To Next Page
