1. Speedometer
Indicates the road speed in kilometers per
hour.
2. Fuel gauge
Fuel gauge indicates the level of fuel available
in fuel tank. Recharge the fuel, if the needle
on the indicator shows the position of the red
line. This indicates that there is 1.3 liters of
fuel in the tank. Mark "E" indicates empty
(blank), but still has 0.7 liters fuel in the tank.
3. Odometer
Registers the total distance covered by the
vehicle in kilometers. The last digit denotes
one tenth of a kilometer.
4. High beam indicator lamp
When the head lamp high beam is ON, a blue
indicator lamp will glow.
5.Turn signal indicator lamps
When the turn signal lamp switch knob is
operated to the right or left side, the

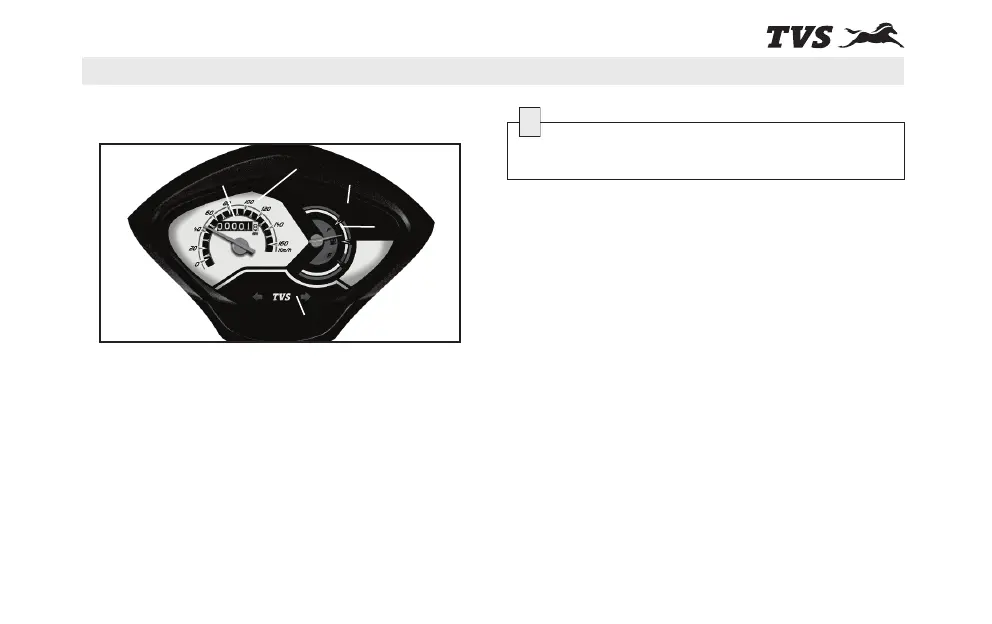

INSTRUMENT CLUSTER
KNOW ABOUT YOUR TVS DAZZ
The position of the fuel tank should always be
horizontal when the gas gauge reading.
12
1
2
3 4
5
