TYAN S5547 - Page 14

http://www.tyan.com
14

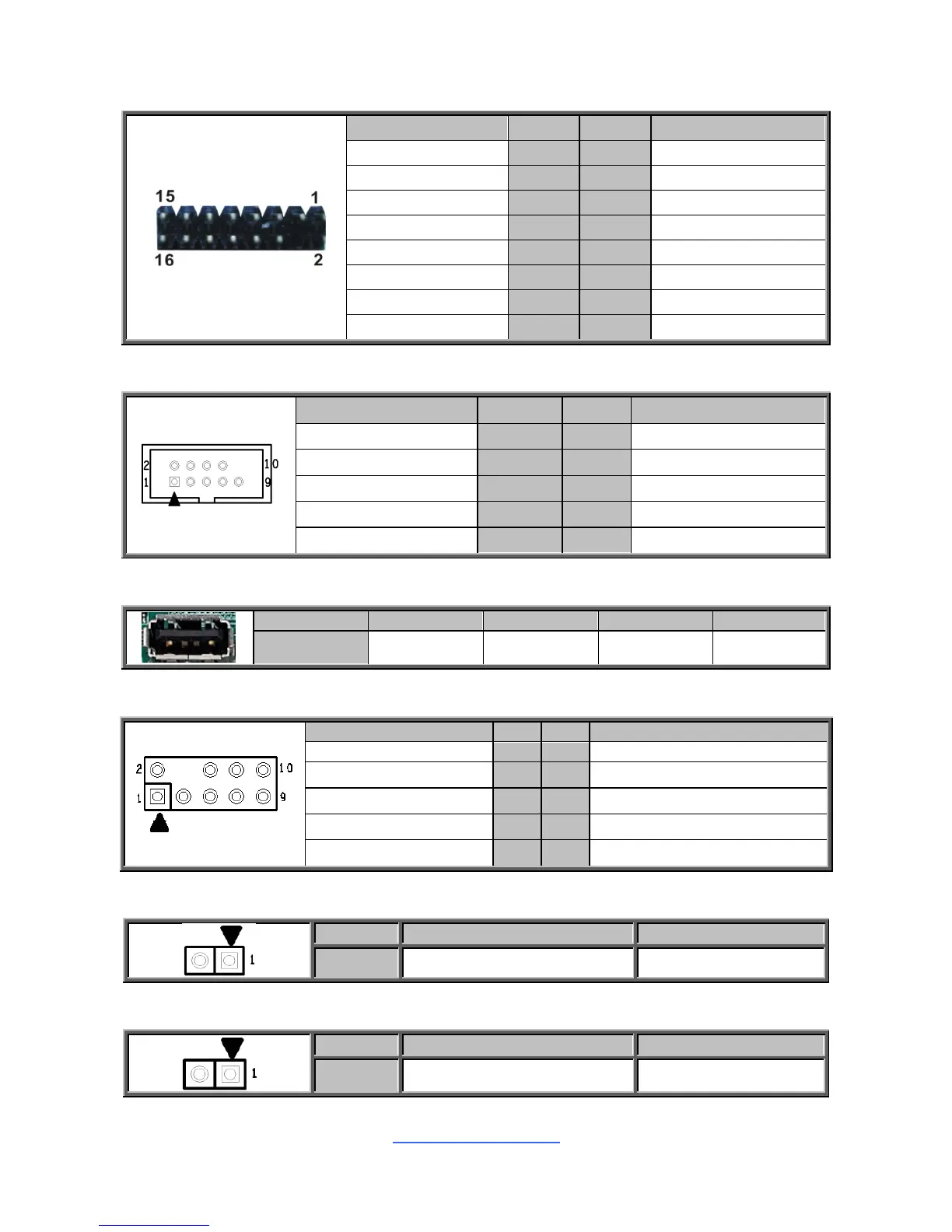

DBG_HD1: TYAN Module Header (Port80 Debug Header)
Signal
Pin
Pin
Signal
P3V3
1
2
FRAME_N
LAD0
3
4
KEY
LAD1
5
6
PLT_RST_N
LAD2
7
8
GND
LAD3
9
10
CLK_24M
DBG_SERIRQ
11
12
GND
DBG_PRES_N
13
14
VCC3_AUX
TPM_ADDR_MB
15
16
PCH_TPM_PP_EN
J10: COM Header
Signal
Pin
Pin
Signal
DCD
1
2
DSR
SIN
3
4
RTS
SOUT
5
6
CTS
DTR
7
8
RI
GND
9
10
KEY
J13: Vertical (Type A) USB2.0 Connectors
Pin
1
2
3
4
Signal
5V_AUX
USB_DN
USB_DP
GND
J8: LPC Header
Signal
Pin
Pin
Signal
+3.3V
1
2
LPC_LFRAME_N_ESPI_CS0
LPC_LAD0_ESPI_IO0
3
4
KEY-Pin
LPC_LAD0_ESPI_IO1
5
6
NIC_RESET#
LPC_LAD0_ESPI_IO2
7
8
GND
LPC_LAD0_ESPI_IO3
9
10
CLK_24M
J1: LAN2 LED Header
Pin
1
2
Signal
LAN1_LED1_FP+
LAN1_LINK_ACT#
J12: LAN1 LED Header
Pin
1
2
Signal
LAN2_LED1_FP+
LAN2_LINK_ACT#
