15

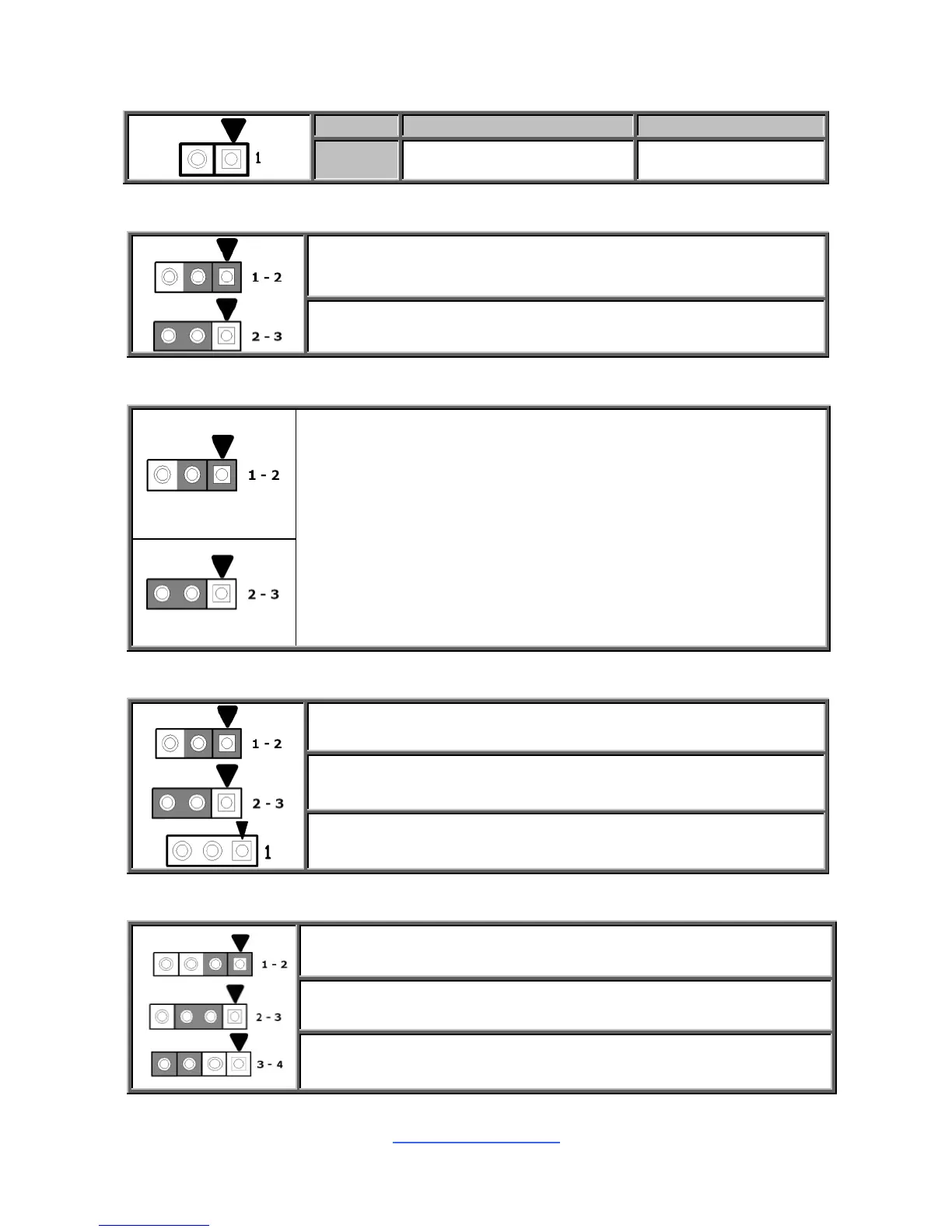

INTRD1: Intruder Header
Pin
1
2
Signal
GND
INTRUDER
J15: ME DISABLE Jumper
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: ME Disable Mode
J17: Clear CMOS Jumper
Normal (Default)
You can reset the CMOS settings by using this jumper. This can be
useful if you have forgotten your system/setup password, or need to
clear the system BIOS setting.
1. Power off system and disconnect power connectors from the
motherboard.
2. Remove the jumper from Pin_2 and Pin_3 (Default setting).
3. Move the jumper cap to close Pin_1 and Pin_2 for several seconds
to Clear CMOS.
4. Put jumper cap back to Pin_2 and Pin_3 (Default setting).
5. Reconnect power connectors to the motherboard and power on
system.
Clear CMOS
J19: Recovery Jumper
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: Configure
Remove Cap: Recovery
J20: BUZZER Jumper
Pin 3-4 Closed: Disable
Pin 2-3 Closed: Disable
Pin 3-4 Closed: Enable (Default)
