2.3 - Board Parts, Jumpers and Connectors

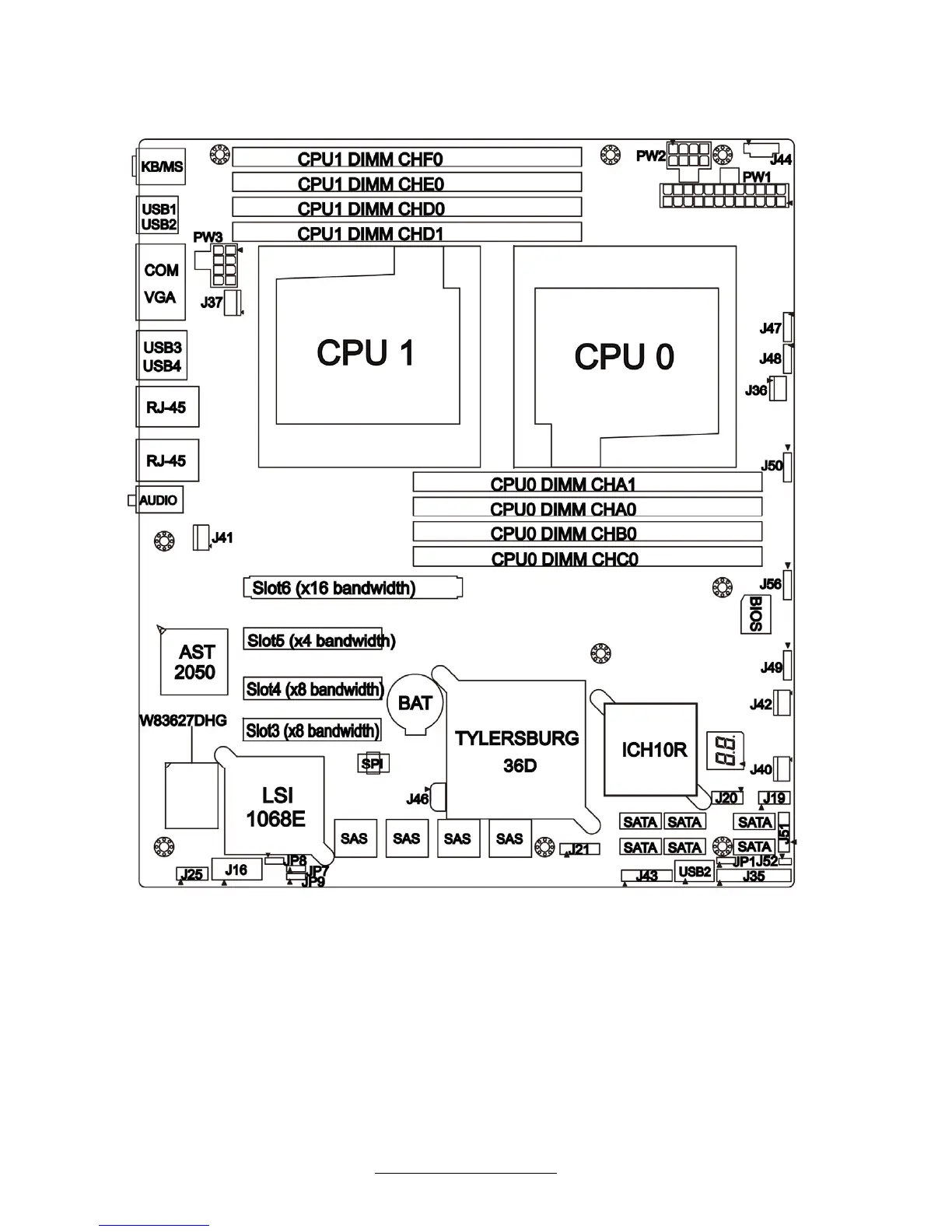

This diagram is representative of the latest board revision (S7002WAP2NR)
available at the time of publishing. The board you receive may not look exactly
like the above diagram.
