Memory Installation Procedure
Follow these instructions to install memory modules into the S7002.

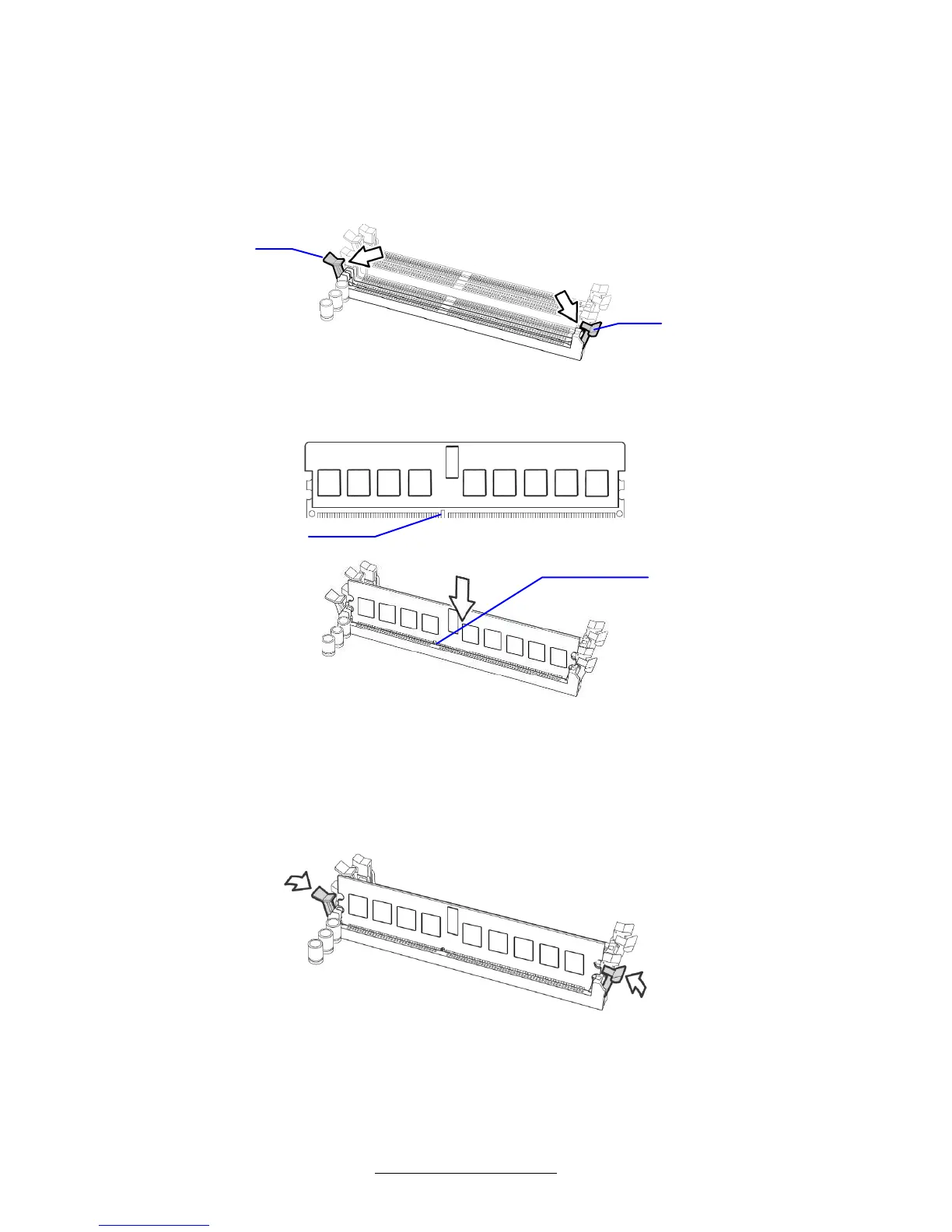

1. Unlock a DIMM socket by Press the retaining clip outwardly in the following
illustration.
2. Align the memory module with the socket，such that the DIMM NOTCH
match the KEY SLOT on the socket.
3. Hold the DIMM by both of its ends . Insert the module vertically into the
socket . Apply force to both ends of the DIMM simultaneously until the
retaining clip pop up into place. And the DIMM cannot be pushed in any
further to ensure proper sitting of the DIMM。
KEY SLOT
Unlocked
retainin
