2.10 - Attaching Drive Cables
Attaching Serial ATA Cables
S7002 is equipped with 6 Serial ATA (SATA) channels. Connections for the
drives are very simple.
There is no need to set Master/Slave jumpers on SATA drives.
If you are in need of SATA/SAS cables or power adapters please contact your
place of purchase.

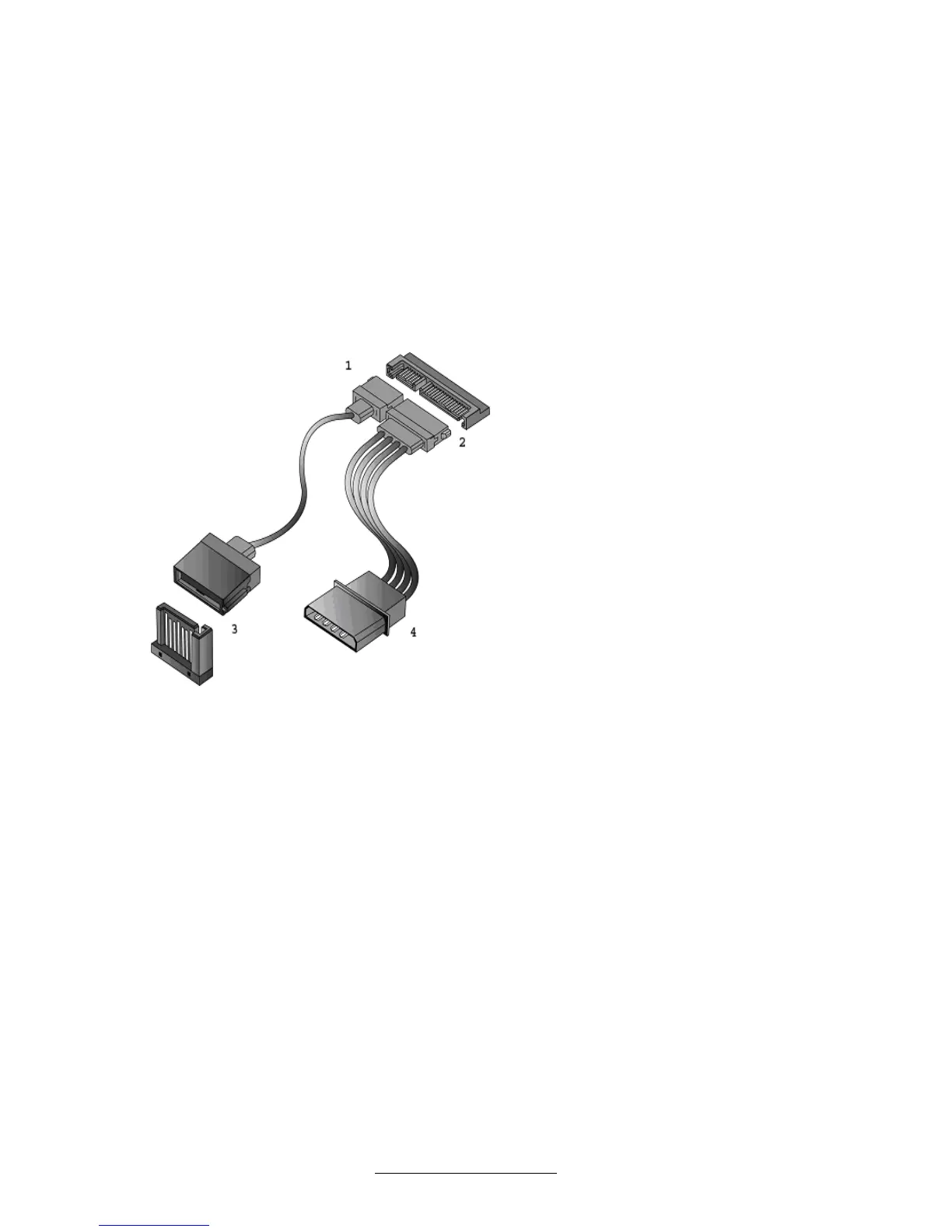

The following pictures illustrate how to connect an SATA drive
1. SATA drive cable
connection
2. SATA drive power
connection
3. SATA cable motherboard
connector
4. SATA drive power
adapter
