2.8 Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Check the TYAN Web site at http://www.tyan.com for
details of the type of memory recommended for your motherboard.

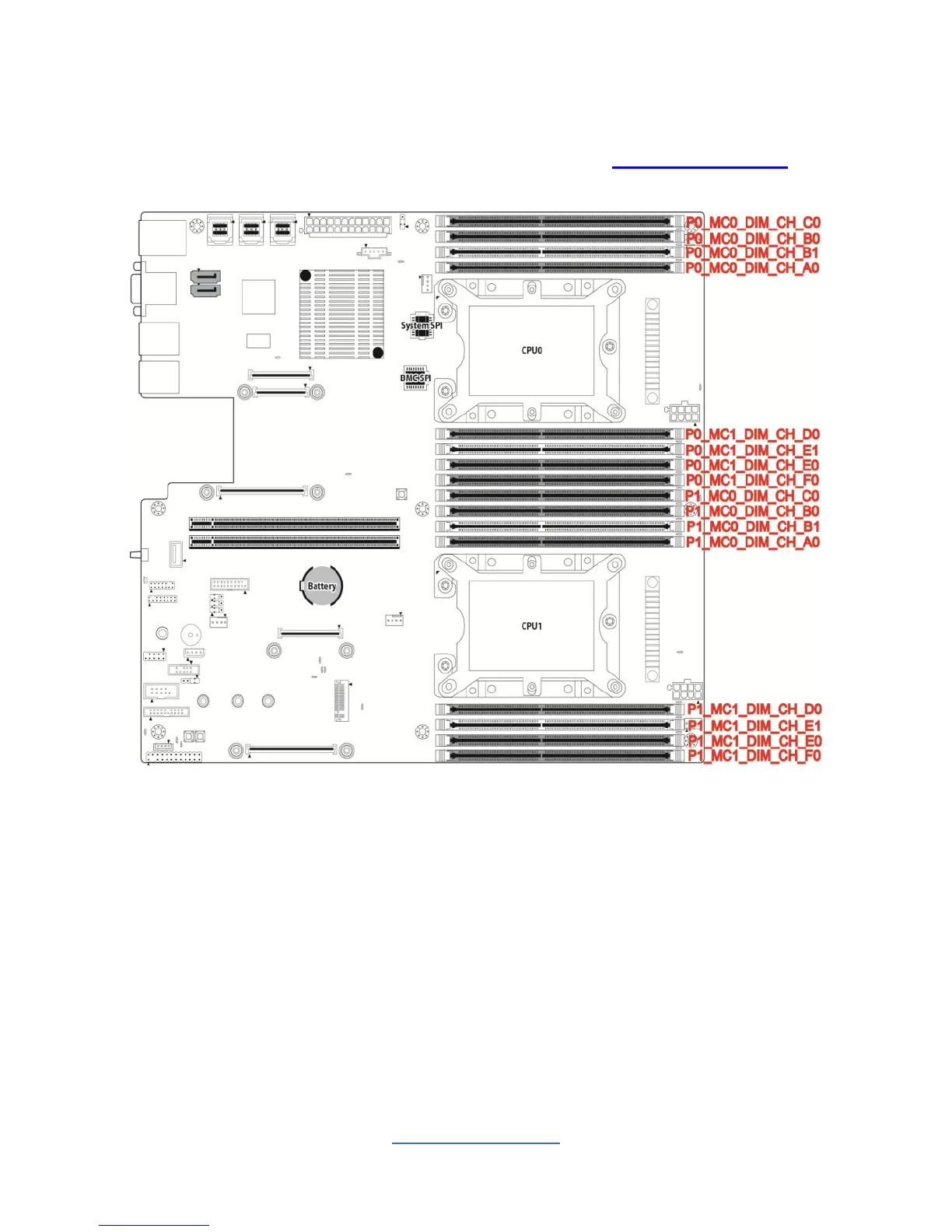

 Support (16)DDR4 288-pin DIMM slots,
 Support (6) memory channels per CPU
 RDIMM DDR4 2666Mhz w/ ECC (1.2V) when 1DPC
 RDIMM DDR4 2133, 2400Mhz w/ ECC (1.2V) when 2DPC. NO 3DPC support
 LRDIMM DDR4 2666Mhz w/ ECC (1.2V) when 1DPC
 LRDIMM DDR4 2133, 2400Mhz w/ ECC (1.2V) when 2DPC. NO 3DPC support
 Channel B, E, 2DPC, others 1DPC
