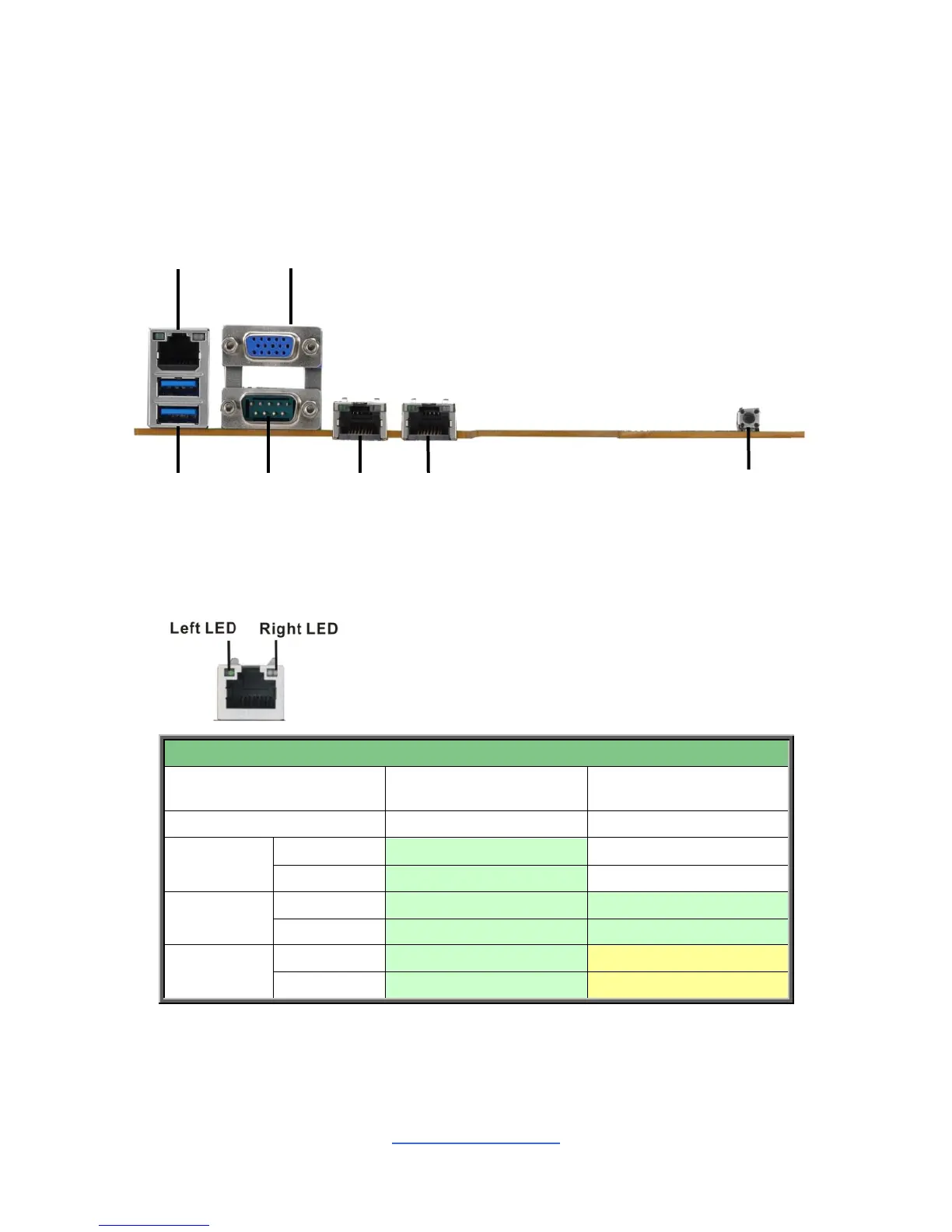

2.11 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
Onboard LAN LED Color Definition
The Three (3) onboard Ethernet ports have green and Amber LEDs to indicate LAN
status. The chart below illustrates the different LED states.
1Gbps LAN Link/Activity LED Scheme
Description
Left LED
(Link/Activity)
Right LED
(Speed)
No Link
OFF
OFF
10 Mbps
Link
Green
OFF
Active
Blinking Green
OFF
100 Mbps
Link
Green
Solid Green
Active
Blinking Green
Solid Green
1Gbps
Link
Green
Solid Amber
Active
Blinking Green
Solid Amber
LAN2(I210)
COM Port
ID_Button
VGA Port
Dedicate to BMC
LAN1(I210)
USB3.0
