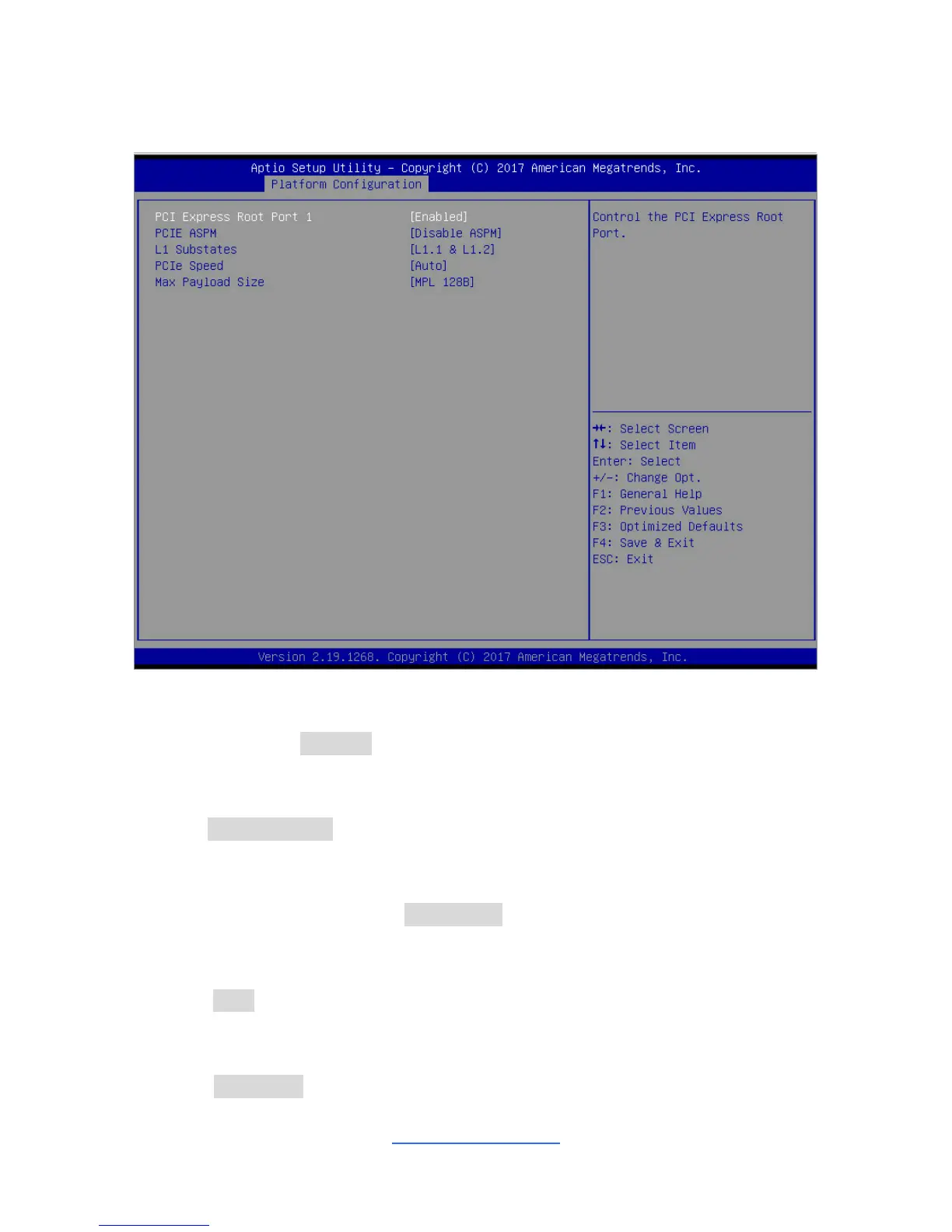

3.4.1.2.1 PCI Express Root Port
1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20 Configuration
PCI Express Root Port 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20
Control the PCI Express Root Port
Disabled / Enabled
PCIE ASPM
PCI Express Root port ASPM Setting
Disable ASPM / ASPM L1 / ASPM Auto
L1 Substates
PCI Express L1 Substates settings.
Disabled / L1.1 / L1.2 / L1.1 & L1.2
PCIe Speed
PCI Express Root Port Completion Timer TO settings
Auto / Gen1 / Gen2 / Gen3
Max Payload Size
PCIE Max Payload Size Selection.
MPL 128B / MPL 256B
