18

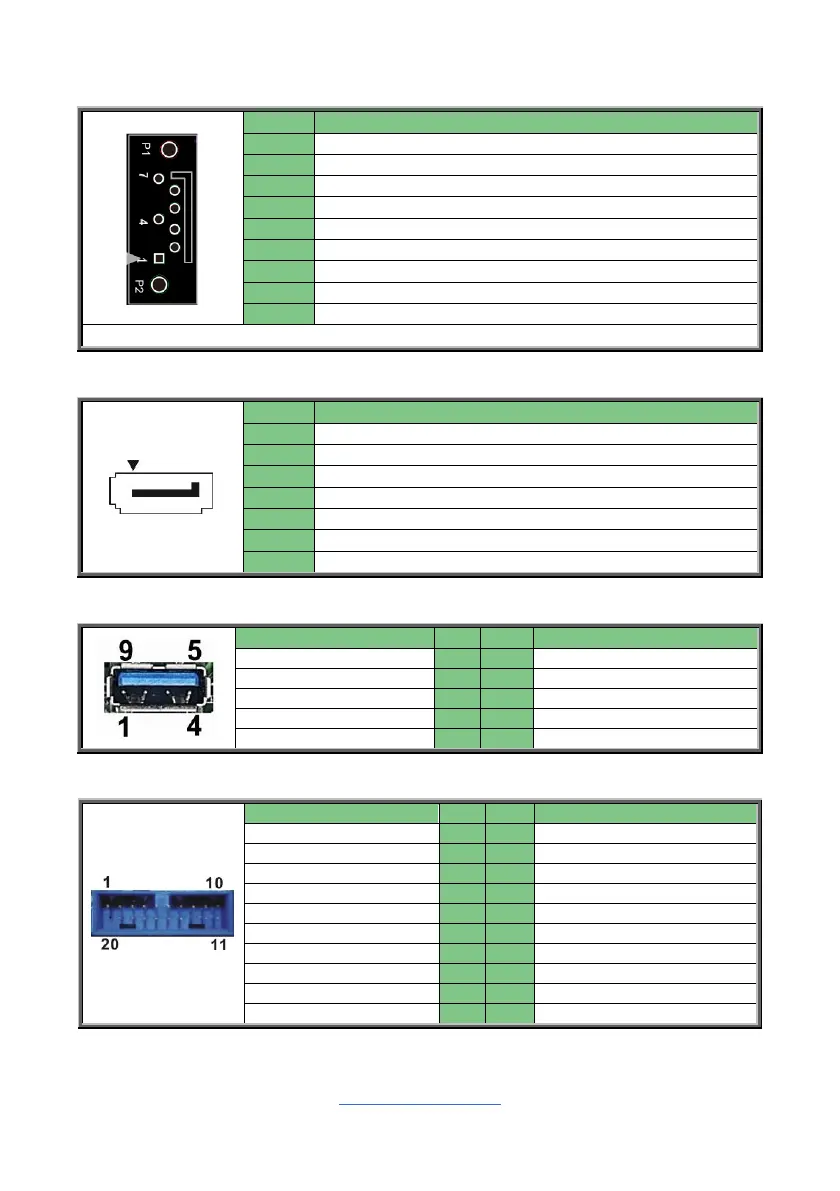

SATADOM1/SATADOM2: SATA Connector
Name
TYPE
1
GND
2
SATA TX DP
3
SATA TX DN
4
GND
5
SATA RX DN
6
SATA RX DP
7
GND
P1
VCC(P5V)
P2
GND
Connects to the Serial ATA ready drives via the Serial ATA cable.
SATA_3/SATA_4: 7-pin SATA 3.0 Connector
Name
TYPE
1
GND
2
SATA TX DP
3
SATA TX DN
4
GND
5
SATA RX DN
6
SATA RX DP
7
GND
TYPEA_USB1: Vertical (Type_A) USB3.0 Connector
Signal
Pin
Pin
Signal
+5V
1
2
USB2.0_DATA_N
USB2.0_DATA_P
3
4
GND
USB3.0_RX_N
5
6
USB3.0_RX_P
GND
7
8
USB3.0_TX_N
USB3.0_TX_P
9
USB3_FPIO1: Front USB3.0 Header
Signal
Pin
Pin
Signal
USB3_VCC_FP
1
2
P0_RXN
P0_RXP
3
4
GND
P0_TXN
5
6
P0_TXP
GND
7
8
P0_N
P0_P
9
10
OC_N
P1_P
11
12
P1_N
GND
13
14
P1_TX_P
P1_TX_N
15
16
GND
P1_RX_P
17
18
P1_RX_N
USB3_VCC_FP
19
20
NA
