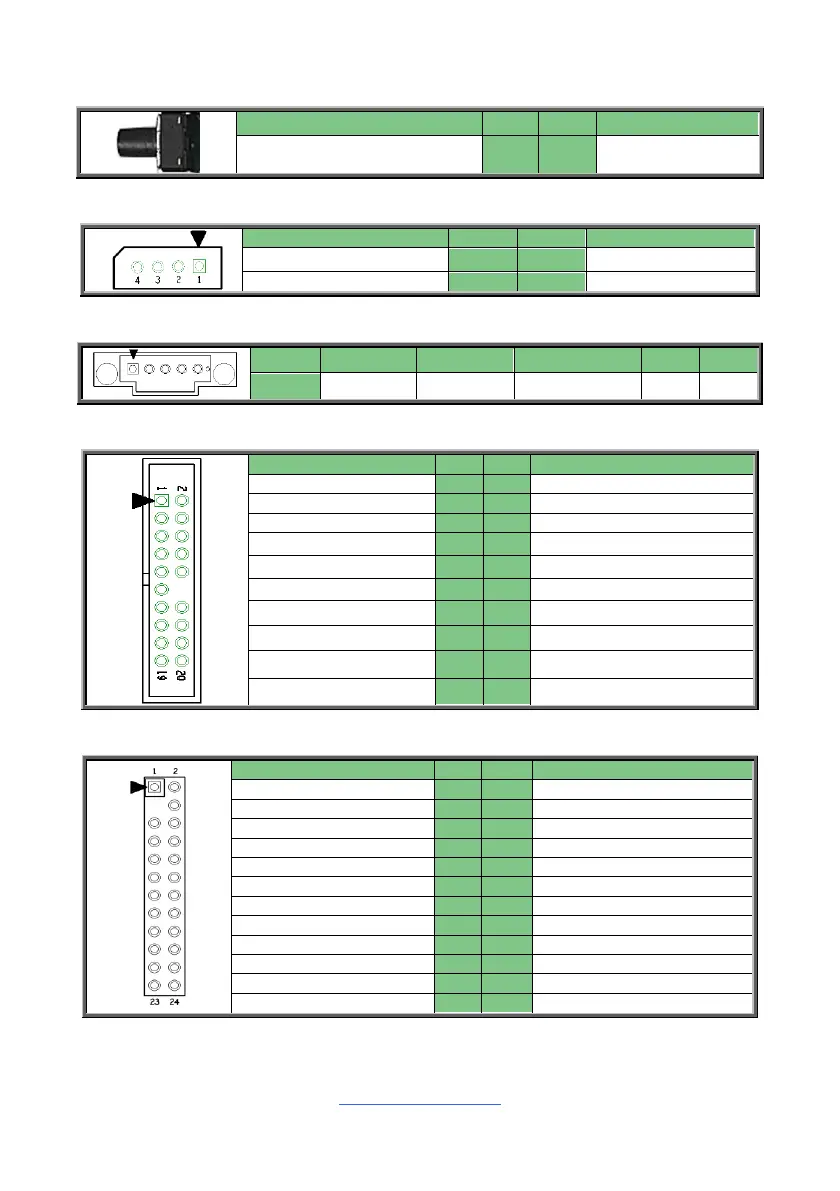

ID LED_BTN1: Rear IO IDLED Button
Signal
Pin
Pin
Signal
FP_IDLED_BTN_N
1
2
GND
IPMB_HD1: IPMB Connector
Signal
Pin
Pin
Signal
BMC_SMB_DATA
1
2
GND
BMC_SMB_CLK
3
4
NC
PSMI_HD1: PSMI Connector
Pin
1
2
3
4
5
Signal
SMB_CLK
SMB_DAT
SMB_ALERT#
GND
V3P3
FAN_HD1: System FAN Connector
Signal
Pin
Pin
Signal
TACH1
1
2
TACH6
TACH2
3
4
TACH7
TACH3
5
6
TACH8
TACH4
7
8
TACH9
TACH5
9
10
TACH10
GND
11
12
KEY
PWM2
13
14
PWM1
TACH11
15
16
SMB_DATA
TACH12
17
18
SMB_CLK
NC
19
20
PWM3
FPIO2: Front Panel Connector
Signal
Pin
Pin
Signal
PWRLED+
1
2
V3P3_AUX
KEY
3
4
IDLED+
PWRLED-
5
6
IDLED-
HDDLED+
7
8
SYS_FAULT1-
HDDLED-
9
10
SYS_FAULT2-
PWR_SW#
11
12
LAN0LED+
GND
13
14
LAN0LED-
RESET_SW#
15
16
SMBDATA
GND
17
18
SMBCLK
IDLED_SW#
19
20
INTRUSION#
SYS_Air_Inlet
21
22
LAN1LED+
NMI_SW#
23
24
LAN1LED-
