2.6 Installing the Processor and Heatsink
The types of processors supported by the S8036 are listed in the 1.2 Hardware
Specifications section on page 4. Check our website at http://www.tyan.com for
the latest list of validated AMD
®
processors for this specific motherboard.
NOTE: MiTAC is not liable for damage as a result of operating an
unsupported configuration.
Processor Installation (Single Socket / for AMD
®
EPYC™ 7002 Series CPU)
Follow the steps below to install the processors and heat sinks.
Please note that the illustrations are based on socket which may not look exactly
like the motherboard you purchased. Therefore, the illustrations should be held for
your reference only.
NOTE: Please save and replace the flip CPU protection cap when returning for
service.

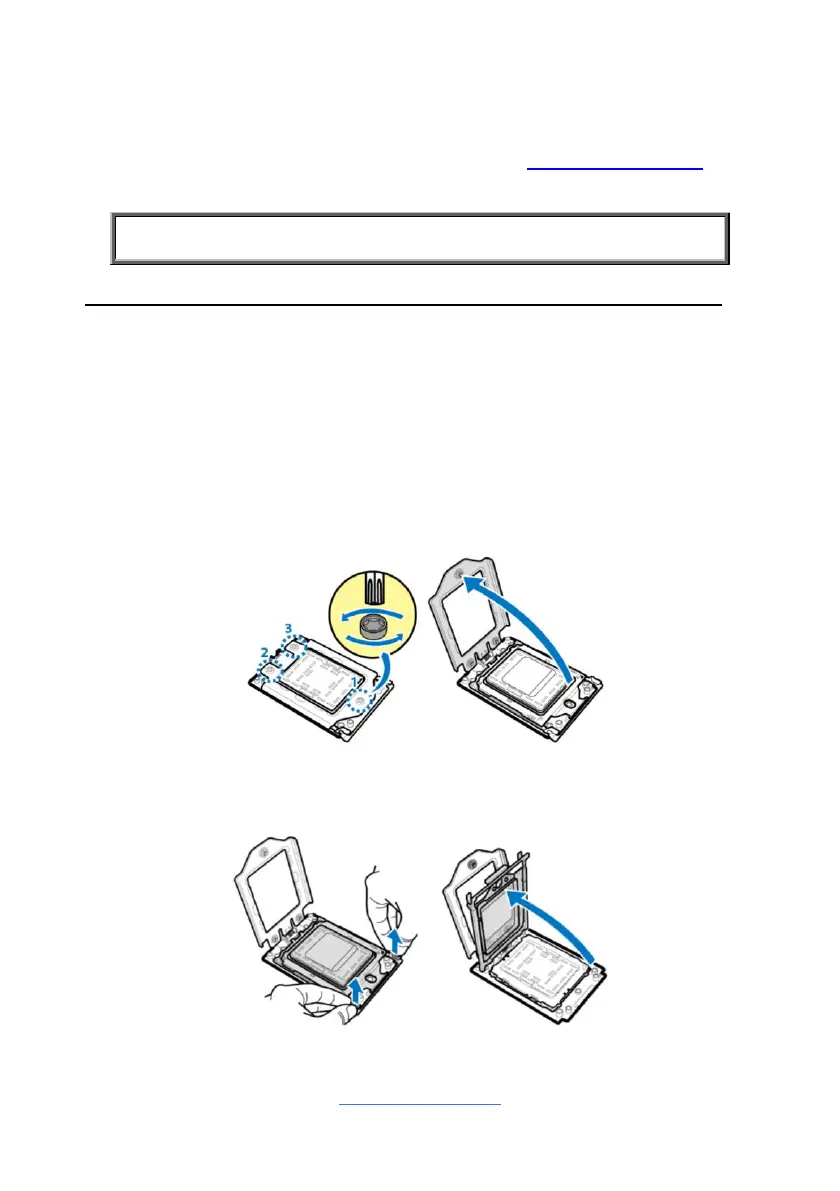

1. Use a T20 Torx screwdriver to loosen the screws securing the force frame in
a sequential order(3->2->1).Note: The force frame will automatically eject
after the captive screws are being released.
2. By placing your both index fingers on the sides on the metal handle, pull to
release the rail frame. Then lift the rail frame to its fully open position.
