MODEL CC3
SPRINKLER
60" (1524 mm)
MAXIMUM
FRAME ARMS OF
SPRINKLER MUST
BE INSTALLED
IN-LINE WITH
PIPE RUN
4-1/2" (114 mm) MINIMUM
FROM FACE OF WOOD TRUSS
OR TOP CHORD OF BAR JOIST
TOP CHORD
4" (102 mm)
OR LESS
6" (152 mm)
MINIMUM
1-1/2" (40 mm)
MINIMUM
4" (102 mm)
MAXIMUM
CEILING
UPPER DECK
FRAME ARMS OF SPRINKLER
MUST BE INSTALLED
IN-LINE WITH PIPE RUN
UPPER
DECK
CEILING
FRAMING
84" (2134 mm)
MAXIMUM
2x FLOOR SOLID
WOOD JOISTS
6" (152 mm)
MINIMUM
60" (1524 mm)
MAXIMUM
MODEL CC3
SPRINKLER
1-1/2" (38 mm)
MINIMUM
2" (51 mm)
MAXIMUM
CEILING

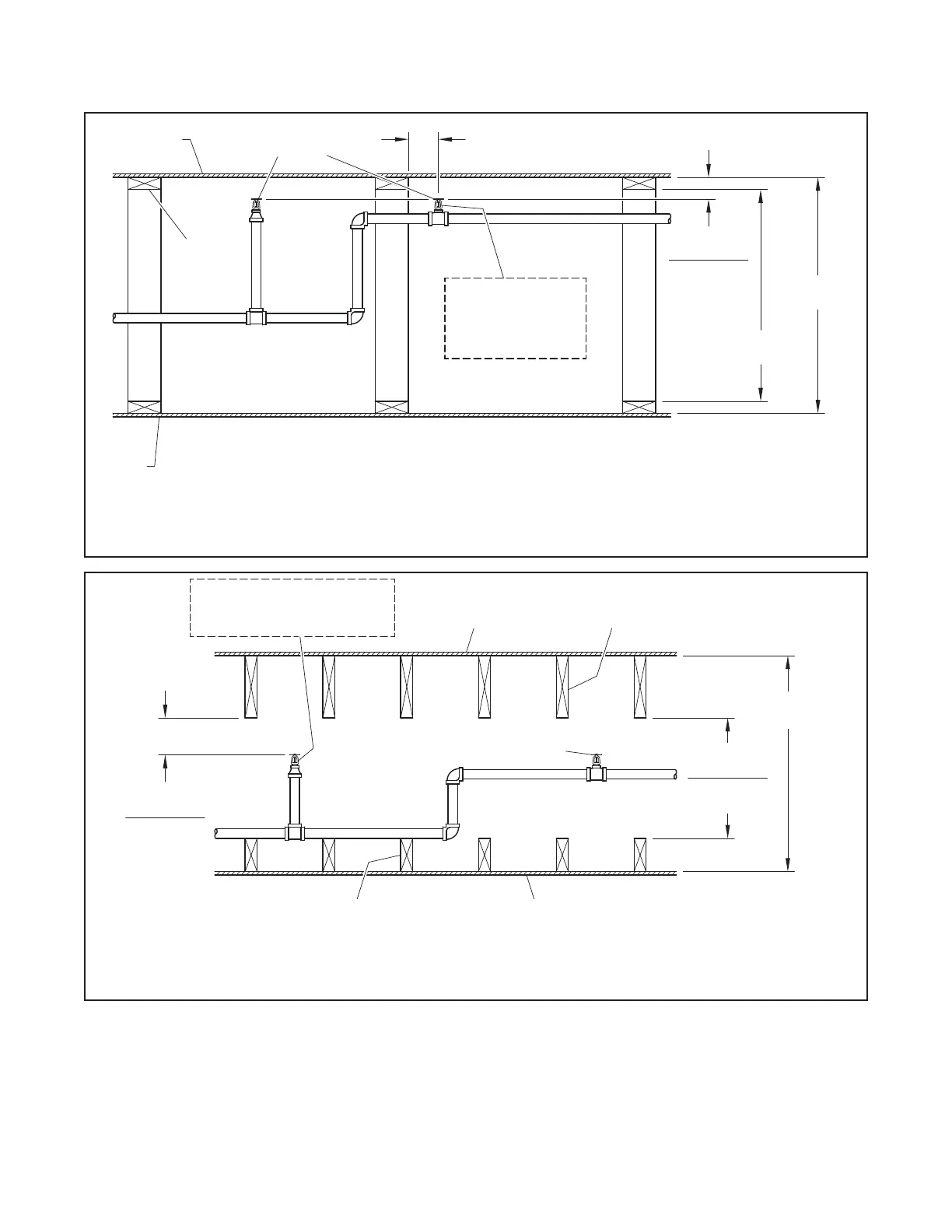

FIGURE 4
UNOBSTRUCTED WOOD TRUSS CONSTRUCTION
OR UNOBSTRUCTED BAR JOIST CONSTRUCTION
CROSS SECTION ELEVATION VIEW
STEEL PIPE
FIGURE 5
SOLID WOOD JOIST CONSTRUCTION
CROSS SECTION ELEVATION VIEW
STEEL PIPE
