Tyco P5400 series - Figure 7-7: Full Cycle Battery Charge Indicator

MM-012099-001
29

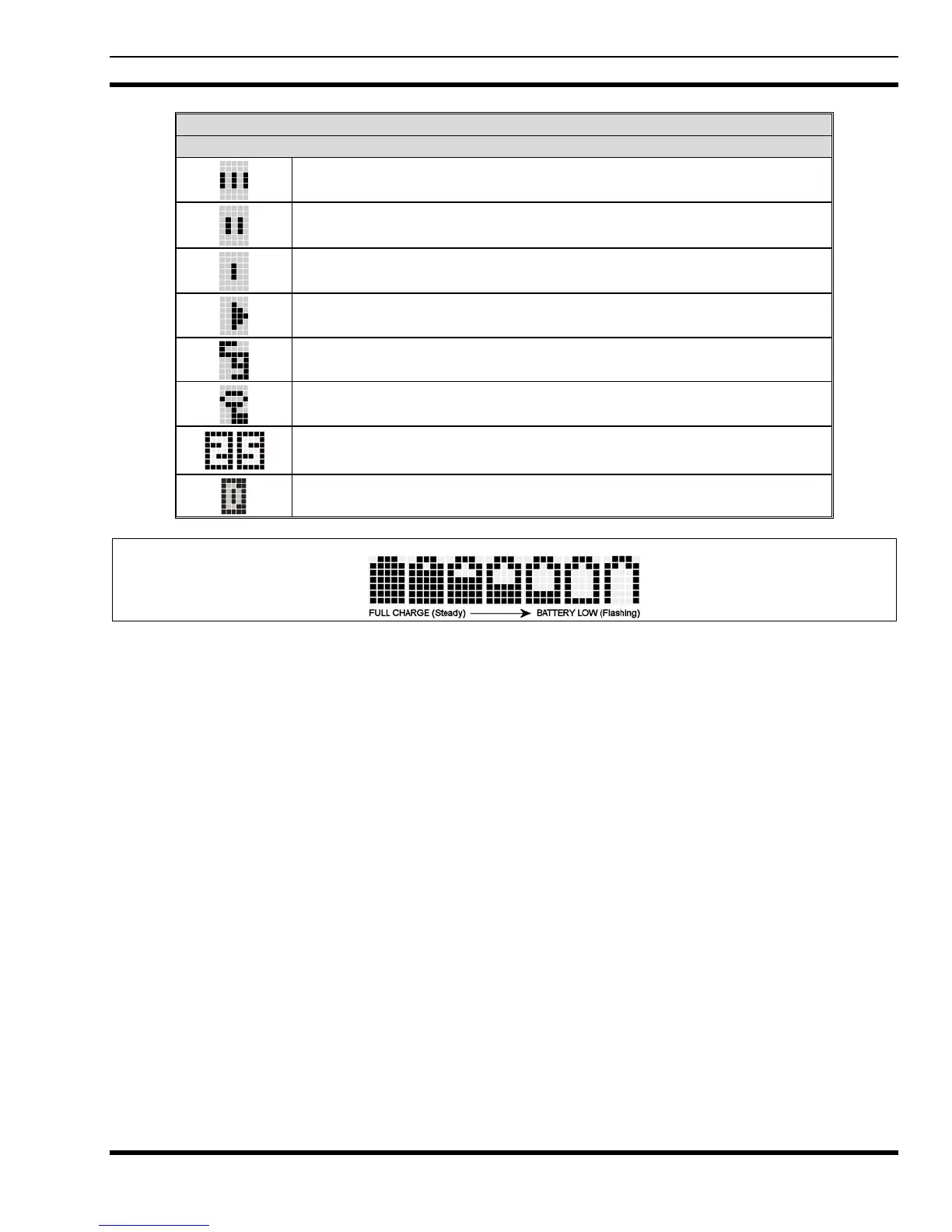

STATUS ICON DESCRIPTIONS
EDACS, CONVENTIONAL, AND P25 ICONS
Steady – group or channel in scan list. Appears in the 10th position of the display.
Steady – priority 2 group or channel. Appears in the 10th position of the display.
Steady – priority 1 group or channel. Appears in the 10th position of the display.
Steady (rotates clockwise) – scan mode enabled. Appears in the 9th position of the display.
If icon is not visible – scan is disabled
Steady – Channel Guard enabled. Appears in the 4th position of the display.
If icon is not visible – Channel Guard is disabled
Steady – transmit in encrypt mode. Appears in the 6th position of the display.
Flashing – receiving an encrypted call
Steady – Indicates the current channel is set up as a Project 25 (P25) channel.
Steady – Indicates the current channel is set up as a ProVoice channel. Appears in the 7th
position of the display.
Figure 7-7: Full Cycle Battery Charge Indicator
The battery charge indicators illustrate approximate level only, based on battery voltage. Refer to Figure
7-7.
