10.4 RADIO STATUS ICONS
Status Icons indicate the various operating characteristics of the radio. The icons show operating modes
and conditions and appear on the third line of the display (see Table 10-2).

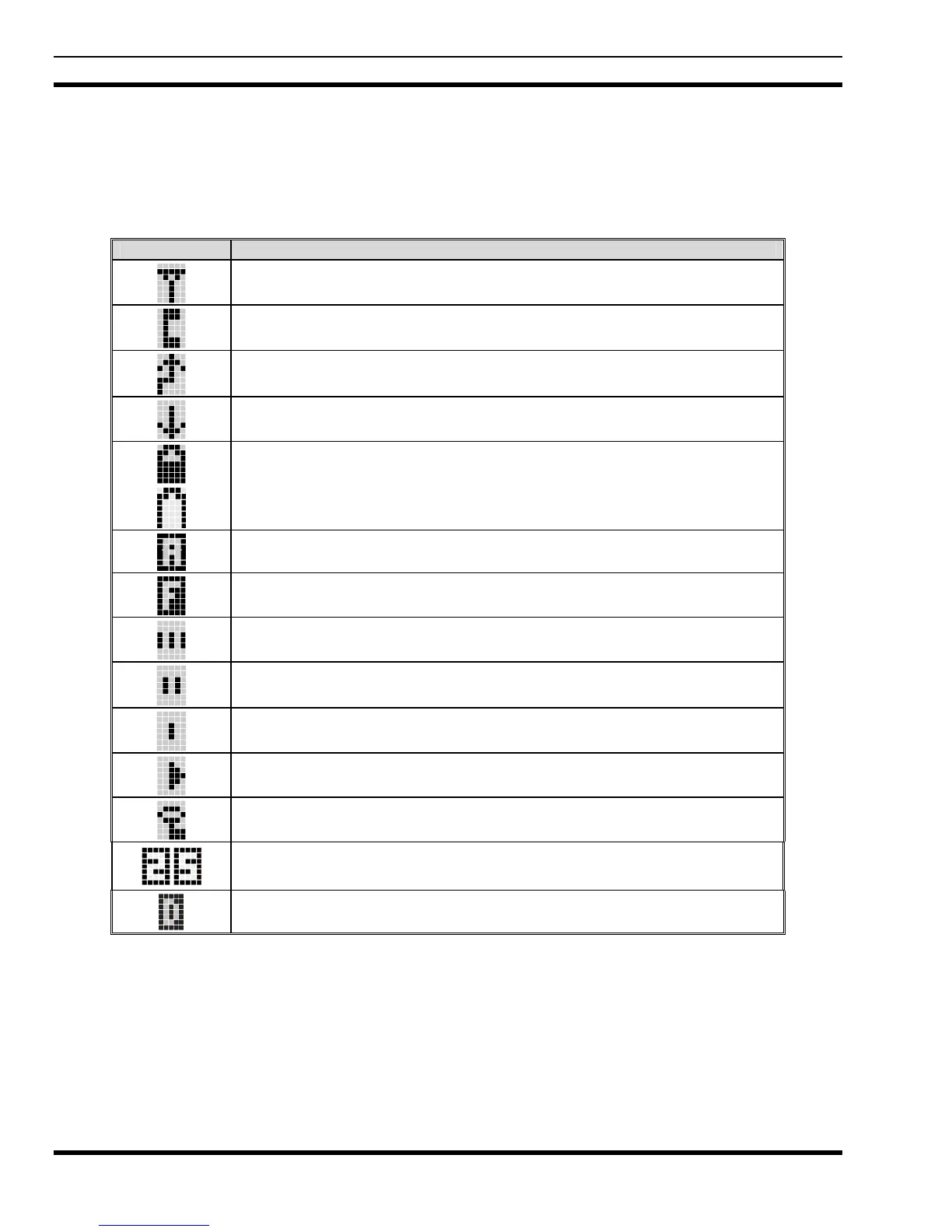

Table 10-2: Display Descriptions
Steady – “Busy” transmitting or receiving. Appears in the 2
nd
position of the display.
Flashing – call queued
Steady – special call mode (individual or telephone). Appears in the 11
th
position of the display.
Steady – during all radio transmissions. Appears in the 1
st
position of the display
Steady – transmit at low power. Appears in the 5th position of the display.
If icon is not visible – transmit at high power
Steady – battery charge indicator. Appears in the 12th position of the display.
Flashing – Low battery indicator.
Steady – Indicates the current channel is set up as an analog channel. Appears in the 7th
position of the display.
Steady – trunked system in Failsoft
™
mode. Appears in the 4th position of the display.
Steady – group or channel in scan list. Appears in the 10th position of the display.
Steady – priority 2 group or channel. Appears in the 10th position of the display.
Steady – priority 1 group or channel. Appears in the 10th position of the display.
Steady (rotates clockwise) – scan mode enabled. Appears in the 9th position of the display.
If icon is not visible – scan is disabled
Steady – transmit in encrypt mode. Appears in the 6th position of the display.
Flashing – receiving an encrypted call
Steady – Indicates the current channel is set up as a Project 25 (P25) channel.
Steady – Indicates the current channel is set up as a ProVoice channel. Appears in the 7th
position of the display.
