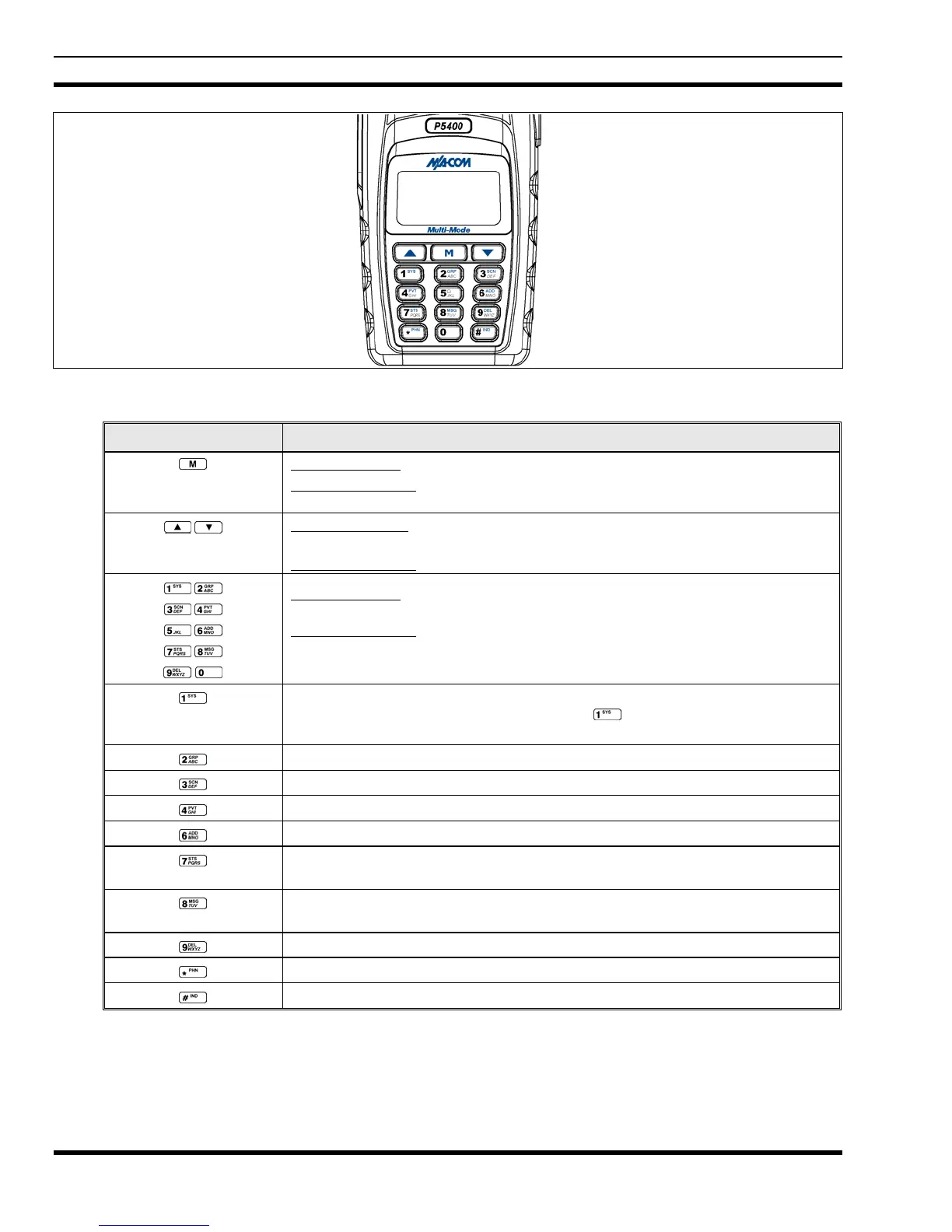

Figure 10-2: P5470 “System” Radio Front Panel
KEY FUNCTION
Primary Function
: Accesses the pre-stored menu.
Secondary Function
: Activates a selected item within the menu. This is similar to an
“Enter” key.
Primary Function:
Allows the user to scroll through available systems, groups, or
channels, depending on personality programming.
Secondary Function
: Changes the selection for an item within a list.
Primary Function
: Refer to the separate key definitions within this table.
Secondary Function
: These keys function much as a typical DTMF telephone pad 0-9,
*, and # keys; and are used to place telephone interconnect and individual (unit-to-
unit) calls.
Selects a specific system. If the rotary knob is used to select the system and more than
16 systems are programmed in the radio, the
key is used to select additional
banks (groupings) of systems.
Selects a specific group.
Turns the Scan operation ON and OFF.
Enables or disables Private Mode for the system/group/channel displayed.
Adds groups or channels from the currently selected system to the Scan list.
Status. Access to the status list (0-9). The Status key permits the transmission of a pre-
programmed status message to an EDACS site.
Message. Access to the message list (0-9). The Message key permits the transmission
of a pre-programmed message to an EDACS site.
Deletes selected groups or channels of the currently selected system from the Scan list.
Initiates telephone interconnect calls.
Initiates individual unit-to-unit calls.
