T1200
MARINEC-P-A
3 02/14
PAGE 10 of 67
4.2 Fire Detection and Alarm Panel Description

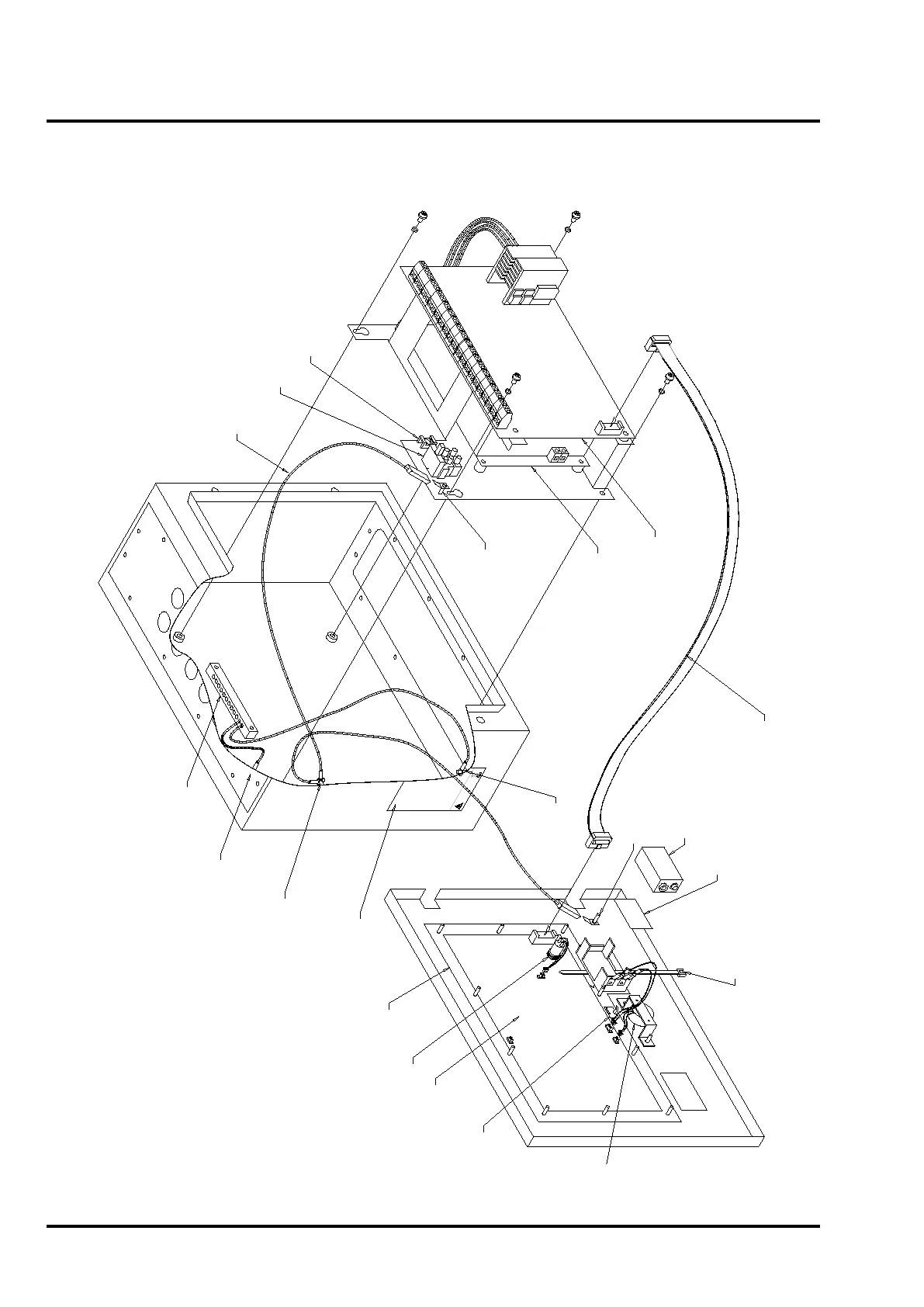

See exploded general assembly drawings below.
Figure 4 – T1204 Panel – General Assembly
DISPLAY BOARD
EARTH BAR
EARTH POST
EARTH POST
MAINS TERMINAL BLOCK
MAINS CABLE CLAMP
MOTHERBOARD
EARTH STRAP
EARTH POST
POWER SUPPLY
RIBBON CABLE ASSEMBLY
EARTH POST
EARTH POST
INSULATION PLATE
CABLE TIE
9V BATTERY
CABLE CLIP
DISPLAY PLATE
KEYSWITCH
BUZZER
Fuse
:
Input:
Serial No:
Part No:
Product:
Standards:
Approval:
Fire Alarm System
0086-CPR-607217
Made in Great Britian
RATING LABEL
