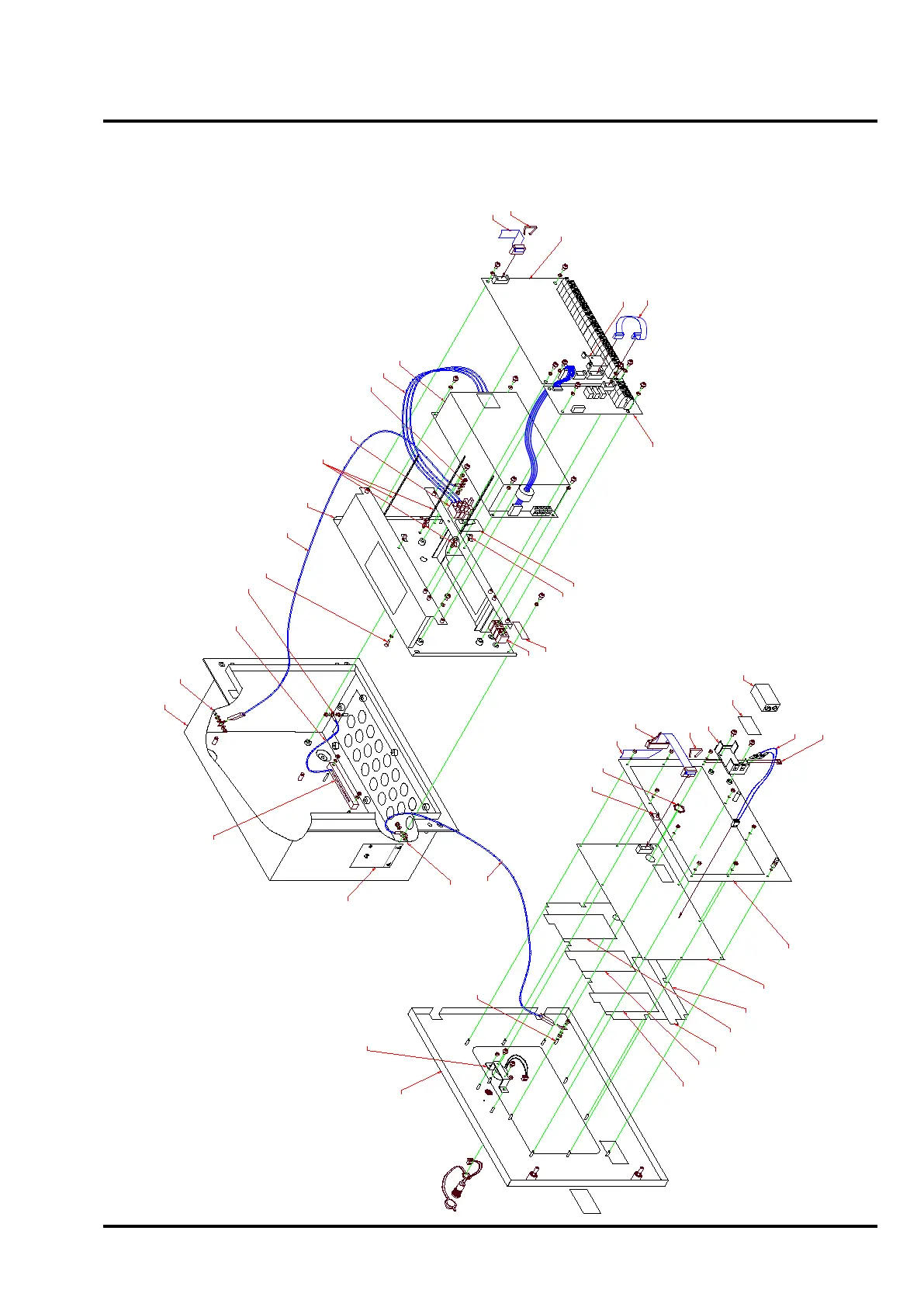

Figure 5 – T1216-C Panel – General Assembly
SWITCH INSERT
LED INSERT
MEMBRANE
KEYSWITCH MOUNTING NUT
20 WAY
RIBBON
CABLE
EARTH POST
EARTH POST
MAINS TERMINAL BLOCK
WITH 5
A FUSE
P
.C.BOARD SUPPORTS (2 OFF)
POWER SUPPLY (110V/230V)
16 ZONE
MOTHERBOARD
(C1627)
C1714 SERIAL VDR I/F BOARD
C1630 EXPANSION INTERFACE
POWER SUPPLY LEAD
BATTERY HOLDER
BATTERY LEAD
20WAY RETAINING CLIP
RETAINING
CLIP
BUZZER MOUNTING BRACKET
EARTH POST
RIBBON CABLE CLAMPS -
4 OFF
CABLE CLIP
INSULATION PLATE
CABLE TIE USED
TO SECURE BATTERY
10 WAY RIBBON CABLE
CONNECT PP
3
BATTERY
LEAD TO
J4 ON DISPLAY BOARD
IMMEDIATELY BEFORE
POWERING UP THE PANEL
SEE
"POWERING UP" IN THE
INSTALLATION MANUAL
Fuse:
Input:
Serial No:
Part No:
Product:
Standards:
Approval:
0086/14
Fire Alarm System
Thorn Security Ltd
Isolate Supply Before
0086-CPR-607217
Made in Great Britian
Opening Cover
THIS UNIT MUST
BE EARTHED
RATING LABEL
ZONE LOCATION INSERT
INSTRUCTION INSERT
4 WAY PSU TERMINAL BLOCK
TERMINAL BLOCK LABEL
L
N
Fuse
Mains
Replace Fus
With Same Type
THERM
THERM
BAT +
BAT
-
EARTH POST
CABLE TIE (3 OFF)
9
V BATTERY
RIBBON CABLE TO MOTHERBOARD
12 WAY EARTH BAR
TERMINAL BLOCK MOUNTING
ENCLOSURE
CHASSIS
DOOR
KEYSWITCH
MAINS TERMINAL LABEL
LOGO
CHASSIS EARTH CABLE
DOOR EARTH CABLE
GLAND EARTH CABLE
EARTH POST
DISPLAY BOARD
(C1628
)
DISPLAY SUPPORT PLATE
