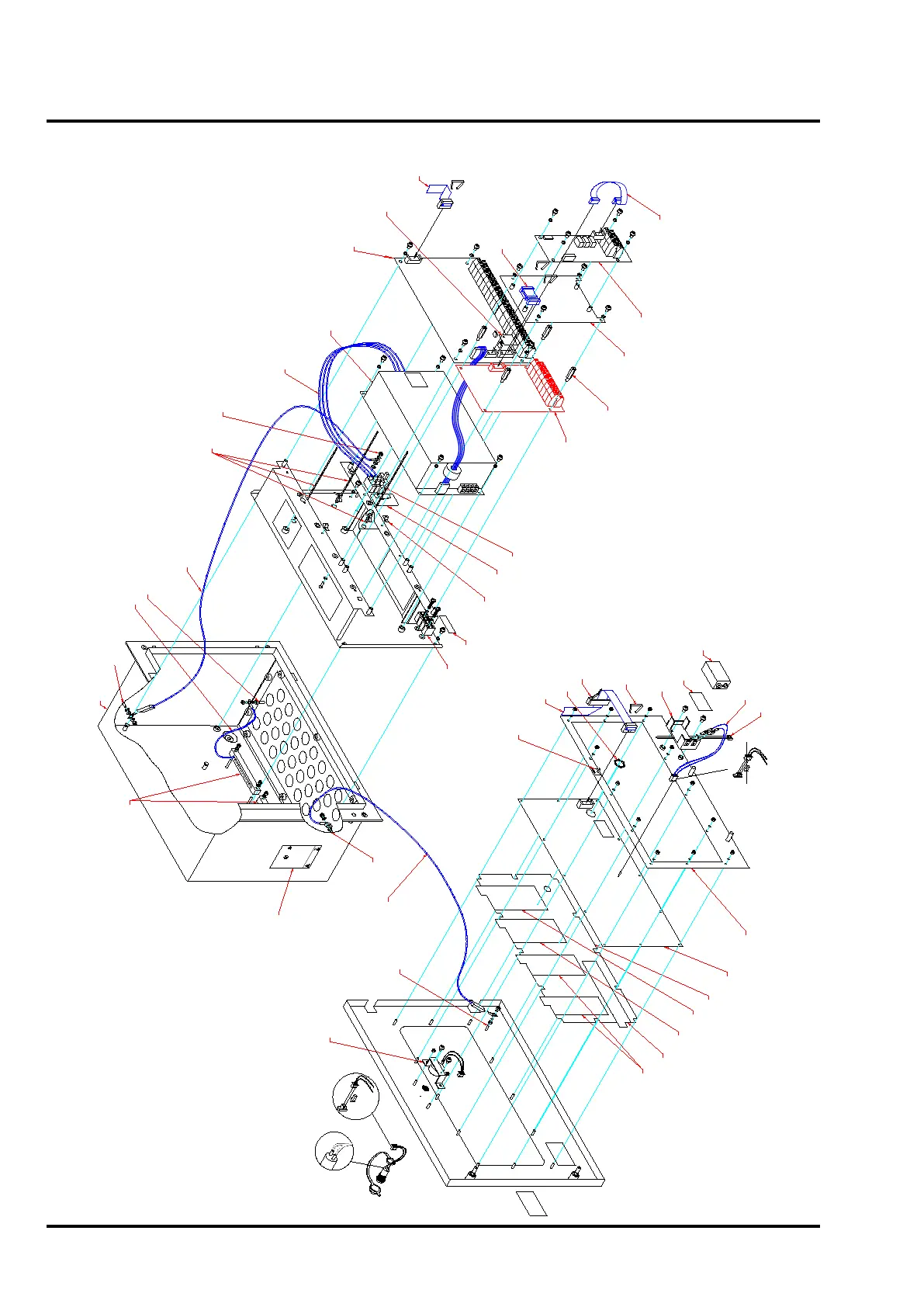

EARTH POST
EARTH POST
MAINS TERMINAL BLOCK 5A0 FUSE
MAINS TERMINAL LABEL
POWER SUPPLY (110V/230V)
MEMBRANE
DISPLAY BOARD (C1629)
ZONE LOCATION INSERT - 2 OFF
SWITCH INSERT
LED INSERT
INSTRUCTION INSERT
EARTH POST
12 WAY EARTH BAR (2 OFF)
PANEL MOTHERBOARD
(C1627)
C1714 SERIAL VDR I/F BOARD
CHASSIS EARTH CABLE
C1632 EXPANSION BOARD
C1632 + C1714 MTG DETAILS
M3x22 HEX SPACER (4 OFF)
10 WAY RIBBON CABLE ASSEMBLY
LOGO
P.C.BOARD SUPPORTS (2OFF)
L
N
Fuse
Mains
Replace Fu
With Same Typ
POWER SUPPLY LEAD
BATTERY CLAMP
BATTERY LEAD
KEYSWITCH
BUZZER MOUNTING BRACKET
GLAND EARTH CABLE
DOOR EARTH CABLE
EARTH POST
INSULATION PLATE
9V BATTERY
CABLE TIE USED
TO SECURE BATTERY
CONNECT PP3 BATTERY LEAD
TO
J4 ON DISPLAY BOARD
IMMEDIATELY BEFORE
POWERING UP THE PANEL
SEE
"POWERING UP" IN THE
INSTALLATION MANUAL
RATING LABEL
Fuse:
Input:
Serial No:
Part No:
Product:
Standards:
Approval:
0086/14
Fire Alarm System
Isolate Supply Before
0086-CPR-607217
Opening Cover
THIS UNIT MUST
BE EARTHED
4 WAY PSU TERMINAL BLOCK
SERIAL VDR I/F BOARD MOUNTING BRACKET
ENCLOSURE
CABLE TIE (3 OFF)
THERM
THERM
BAT +
BAT -
TERMINAL BLOCK LABEL
EARTH POST
Thorn Security Ltd
Made in Great Britian
KEYSWITCH MOUNTING NUT
CABLE CLIP
20 WAY RIBBON
CABLE TO DISPLAY
RETAINING
CLIP
20W RETAINING CLIP
RIBBON CABLE CLAMPS - 4 OFF
RIBBON CABLE TO MOTHERBOARD
14 WAY CABLE
ASSEMBLY
C1630 EXPANSION
INTERFACE BOARD
DISPLAY SUPPORT PLATE
