AquaFlex Stainless Steel sprinkler Fittings provide fast, easy sprinkler installation in a suspended
ceiling grid with a flexible, stainless steel hose.
System Options:
• Braided and unbraided flexible stainless steel hose in lengths:
31, 48, 60, 72"/790, 1220, 1525, 1830 mm
• Branch line nipples for attaching to rigid pipe.
• ½ and ¾"/15 and 20 mm straight and 90º reducers for connecting sprinklers.
• FM Approved patent-pending, light-weight pre-assembled, ready-to-install 1-Bee
2
mounting bracket available in 24 and 48" widths. 24" width bracket is also cULus Listed.
• Institutional bracket for wall or ceiling installations also available (see Submittal
Publication 10.88).
• Optional pre-assembled systems with factory-installed sprinkler heads available. In these
systems, sprinkler connections are leak-tested by Victaulic. Contact Victaulic for sprinkler
model availabilty.

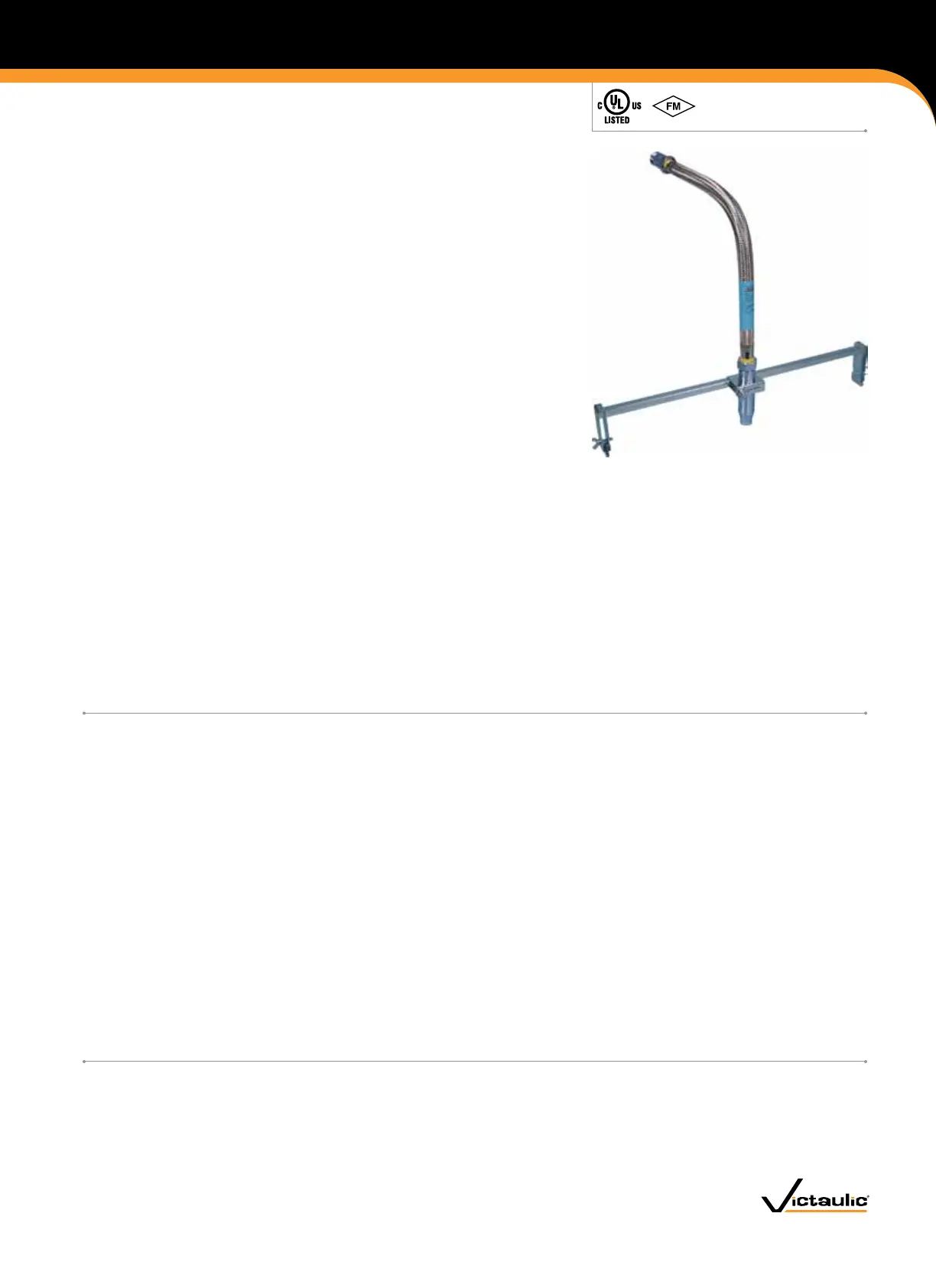

AquaFlex Stainless Steel Flexible Drop 1-Bee
2
bracket allows complete lateral alignment of
sprinklers during installation. The bracket provides center points and reference marks 6" and
12"/152 mm and 304 mm from the tile edge (on the 24" bracket) for ease of positioning without
need for measuring.
The system requires no welding for assembly.
The braided 1" nominal diameter system is FM Approved for T-Bar Grid commercial suspended
ceilings and metal or wood frame sheetrock suspended ceilings. The unbraided
7
∕
8
" nominal
diameter system is UL 2443 Listed.
TECHNICAL SPECIFICATIONS Maximum temperature: 225˚F/107.2˚C
Maximum Working Pressure:
•200psi/1375kPa(FMApprovalforbraidedsystem)
•175psi/1206kPa(ULListingforunbraidedsystem)
Connections:
To branch line (inlet) via 1"/25.4 mm NPT male thread
To sprinkler head (outlet) via ½" or ¾"/15 mm or 20 mm NPT female thread
Minimum Bend Radius:
•7"/178mm(FMApprovalforbraidedsystem)
•4"/102mmfor(ULListingforunbraidedsystem)
Maximum Number of Bends per Flexible Drop: See friction loss charts later in this document
•Donotbendwithin2"/63.5mmfromconnectionnut.
10.85_1
AquaFlex
®
Stainless Steel
Sprinkler Fittings
SERIES AQB BRAIDED FLEXIBLE HOSE ASSEMBLIES
SERIES AQU UNBRAIDED FLEXIBLE HOSE ASSEMBLIES
PATENT PENDING
10.85
FIRE PROTECTION PRODUCTS – ACCESSORIES
JOB/OWNER CONTRACTOR ENGINEER
System No. ______________________________ Submitted By ____________________________ Spec Sect _______________ Para ___________
Location ________________________________ Date ___________________________________ Approved _______________________________
Date ___________________________________
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2010 VICTAULIC COMPANY. ALL RIGHTS RESERVED.
REV_F
