Installation
The Series TY-B Sprinklers must be
installed in accordance with the follow-
ing instructions:
NOTES
Do not install any bulb type sprinkler if
the bulb is cracked or there is a loss of
liquid from the bulb. With the sprinkler
held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 inch
(1,6 mm) for the 135°F/57°C to 3/32
inch (2,4 mm) for the 360°F/182°C
temperature ratings.
A 1/2 inch NPT sprinkler joint should
be obtained with a minimum to maxi-
mum torque of 7 to 14 ft.lbs. (9,5 to
19,0 Nm). A 3/4 inch NPT sprinkler
joint should be obtained with a mini-
mum to maximum torque of 10 to 20
ft.lbs. (13,4 to 26,8 Nm). Higher levels
of torque may distort the sprinkler inlet
and cause leakage or impairment of
the sprinkler.
Do not attempt to make-up for insuffi-
cient adjustment in the escutcheon
plate by under- or over-tightening the
Page6of8

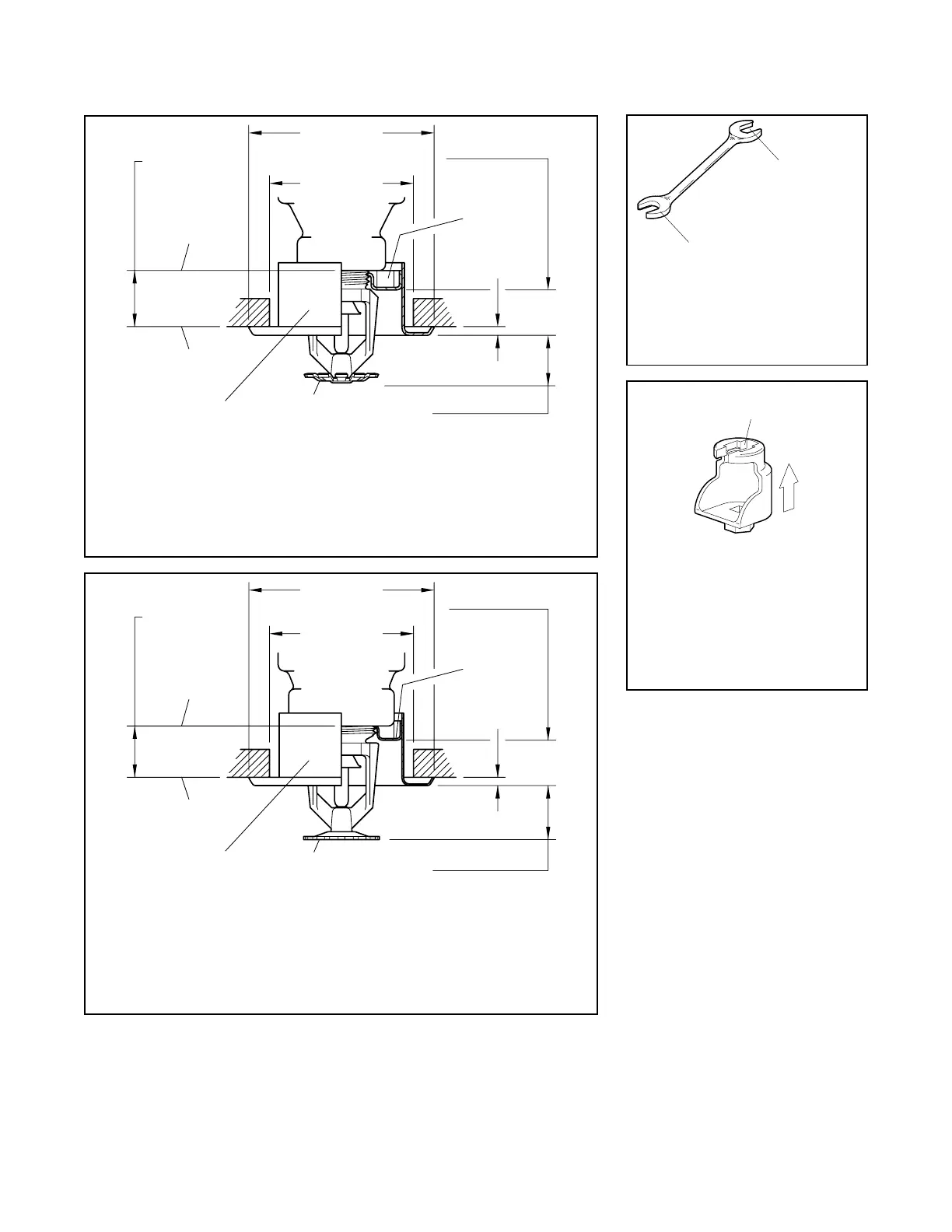

TFP151
FIGURE 5
SERIES TY-B RECESSED PENDENT SPRINKLER ASSEMBLY
WITH TWO-PIECE 3/4 INCH TOTAL ADJUSTMENT
STYLE 10 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
FIGURE 7
W-TYPE 6 SPRINKLER
WRENCH
FIGURE 8
W-TYPE 7 RECESSED
SPRINKLER WRENCH
FIGURE 6
SERIES TY-B RECESSED PENDENT SPRINKLER ASSEMBLY
WITH TWO-PIECE 3/4 INCH TOTAL ADJUSTMENT
STYLE 40 RECESSED ESCUTCHEON
8.0 K-FACTOR, 3/4 INCH NPT
(57,2 mm)
2-1/4" DIA.
(73,0 mm)
2-7
8" DIA.
SPRINKLER
MOUNTING
CLOSURE
SURFACE
FACE OF
FITTING
(15,9±6,4 mm)
5/8±1/4"
(3,2 mm)
3/4" (19,1 mm)
1-1/4" (31,8 mm)
PLATE
MOUNTING
1/8"
1/4" (6,4 mm)
3/4" (19,1 mm)
SERIES
TY-B
WRENCH RECESS
(END "A" USED FOR
1/2" NPT MODELS)
WRENCH RECESS
(END "B" USED FOR
3/4" NPT MODELS
RECESS
WREN
H
WITH SPRINKLER
ENGAGEMENT
IN TO ENSURE
WREN
HIN
AREA
PUSH WRENCH
2-7
8" DIA.
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
MOUNTING
SPRINKLER
CLOSURE
SURFACE
FITTING
FACE OF
(15,9±6,4 mm)
5/8±1/4"
MOUNTING
PLATE
1-5/16" (33,3 mm)
13/16" (20,6 mm)
(3,2 mm)
1/8"
3/4" (19,1 mm)
1/4" (6,4 mm)
SERIES
TY-B
