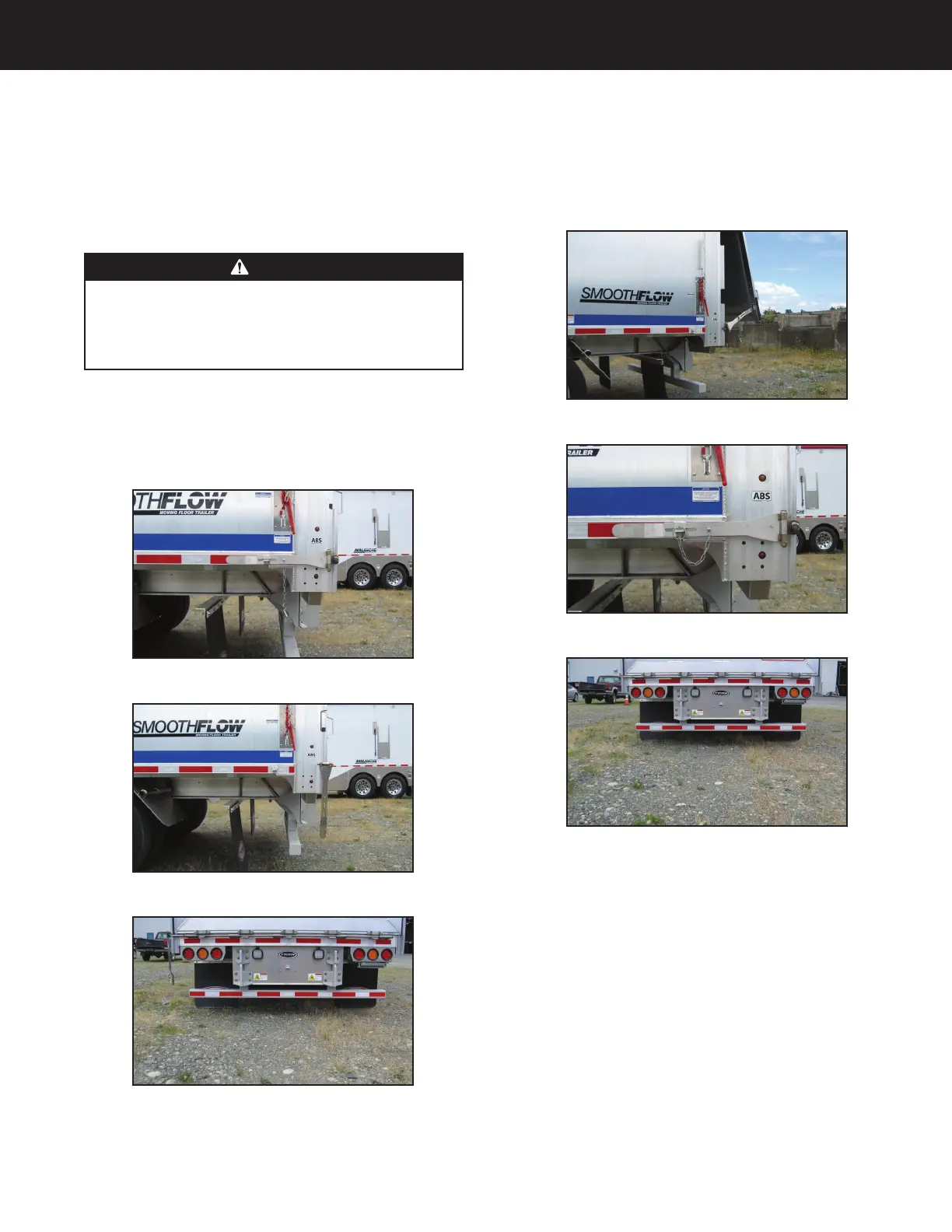

TYCROP SMOOTHFLOW - Option: Top Hinge Door; Opening Top Hinge Door; Closing Top Hinge Door

Operator’s Manual | Moving Floor Trailer 33
Option: Top Hinge
Door
DANGER
Depending on the material being hauled, the load can
potentially settle and put extreme pressure on the rear
doors. Use caution - the door may burst open when
opening.
Opening Top Hinge Door
Release the lever (Figure 01 - 9) on the driver side rear corner
of the trailer. Rotate the lever up 90 degrees until the hook
end is clear from the pin (Figure 02 - 9) and secure with the
provided chain and hook (Figure 03 - 9).
Figure 01 - 9
Figure 02 - 9
Figure 03 - 9
Closing Top Hinge Door
Release the lever (Figure 04 - 9) on the driver’s side rear corner
of the trailer. Rotate the lever down 90 degrees until the hook
end is hooked around the pin (Figure 05 - 9) and secure with
the provided chain and hook (Figure 06 - 9).
Figure 04 - 9
Figure 05 - 9
Figure 06 - 9
Option: Top Hinge Doors - 9
