TYCROP SMOOTHFLOW - Page 53

Operator’s Manual | Moving Floor Trailer 51
Schematics

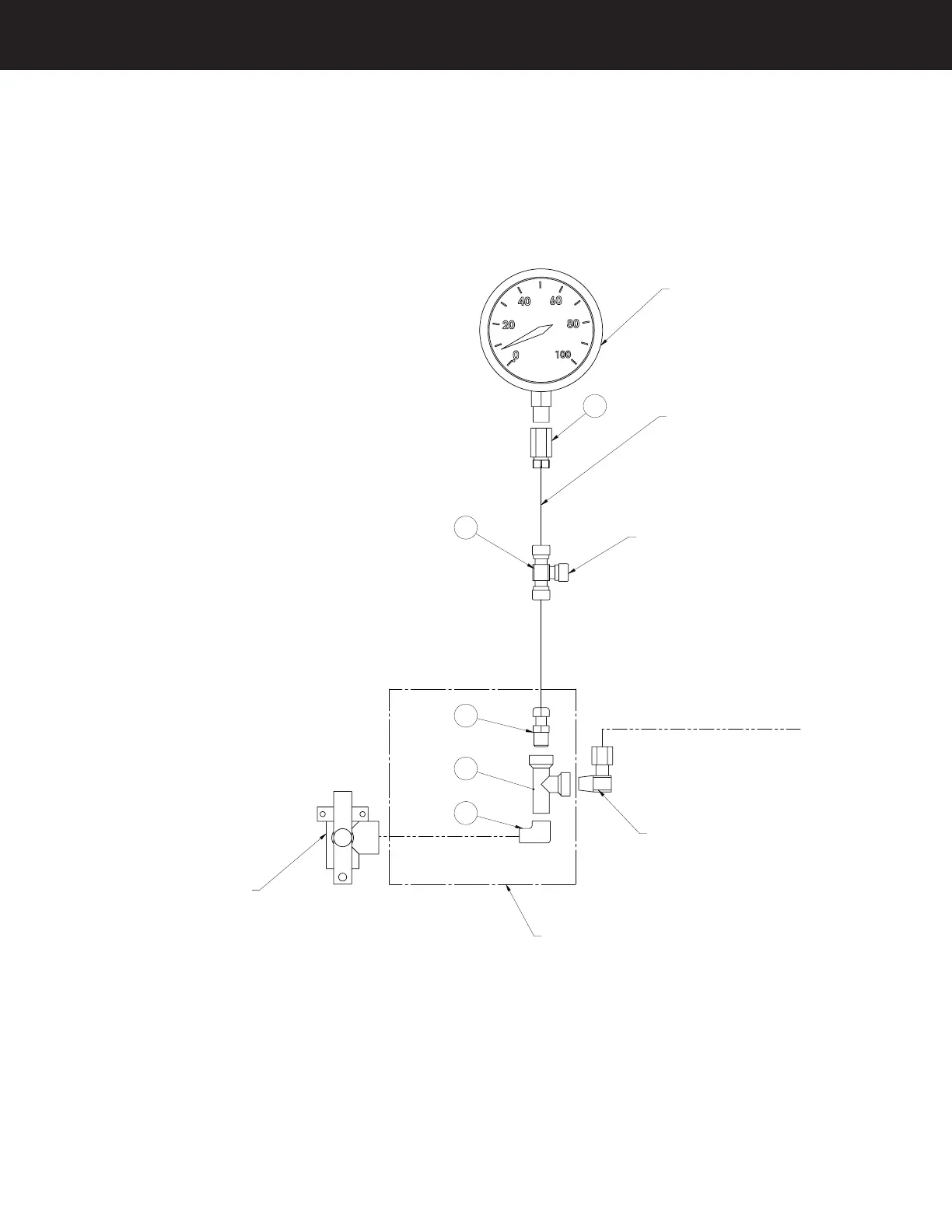

Dual Air Scale
Drawing No. 1106-1493 | Revision 00
1
1/4" TUBING
TO AIR BAGS
AIR SCALE, REF
57011108,
REF.
3
5
2
APOLLO VALVE,
3 PORTS, REF
2nd AIR SCALE
OPTION
3rd AND MORE
AIR SCALE OPTION
6
