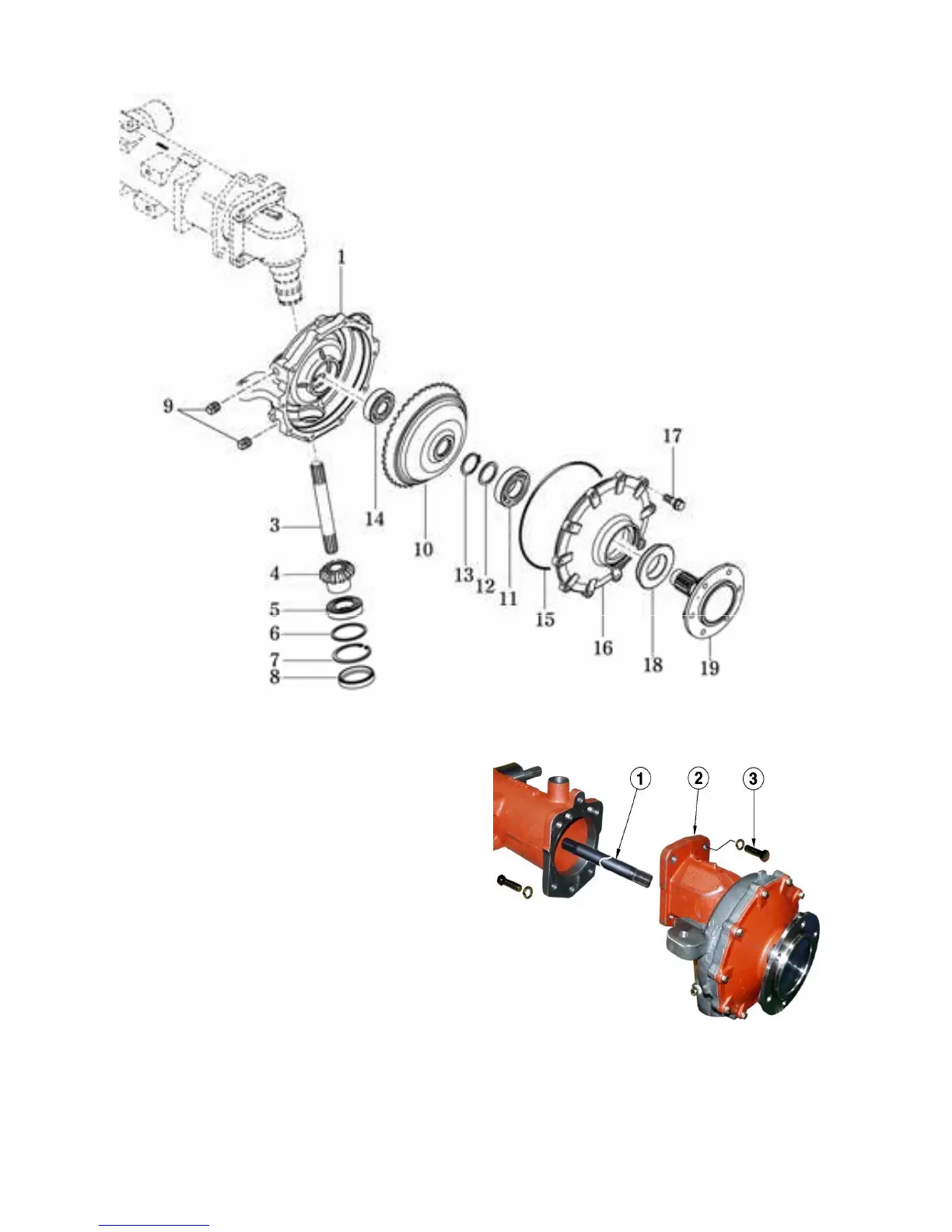

Ⓑ. Front gear case 2.
1.CASE , RH FINAL DRIVE B 2.CASE , RH FINAL DRIVE B
3.SHAFT 4.GEAR , BEVEL 8T
5.BEARING , BALL 6006 6.SHIM
7.C-RING , HOLE 55 8.CAP , 55
9.PLUG , SQUARE R3/8 10.GEAR , BEVEL 44T
11.BEARING , BALL 6207 12.WASHER , 35X45X2
13.C-RING , SHAFT 35 14.BEARING , BALL 6305
15.O-RING , S210 16.COVER , WHEEL SHAFT
17.BOLT , HEX/S M8X25 18.SEAL , SHAFT
19.SHAFT , FRONT WHEEL
6-11
Fig.6-19
3.1 Disassembly
1) Drain oil from the final case by removing the
drain plug.
2) Remove the tie rod or the tie rod end.
3) Remove the final drive case clamping bolts and
take out the assembly of the wheel shaft
4) Remove the wheel shaft cover clamping bolts
and cap
(55)
Note: Discard the removed Cap(55) and install a
new cap(55) when reassembled,because this
cap is apt to be damaged when removed.
5) Detach the snap ring C from the bevel gear.
6) Extract the wheel shaft bearing together with
the bevel gear, using a bearing puller
Fig.6-20
