TYM T233 HST User Manual

SECTION 4. REMOTE HYDRAULIC CONTROL

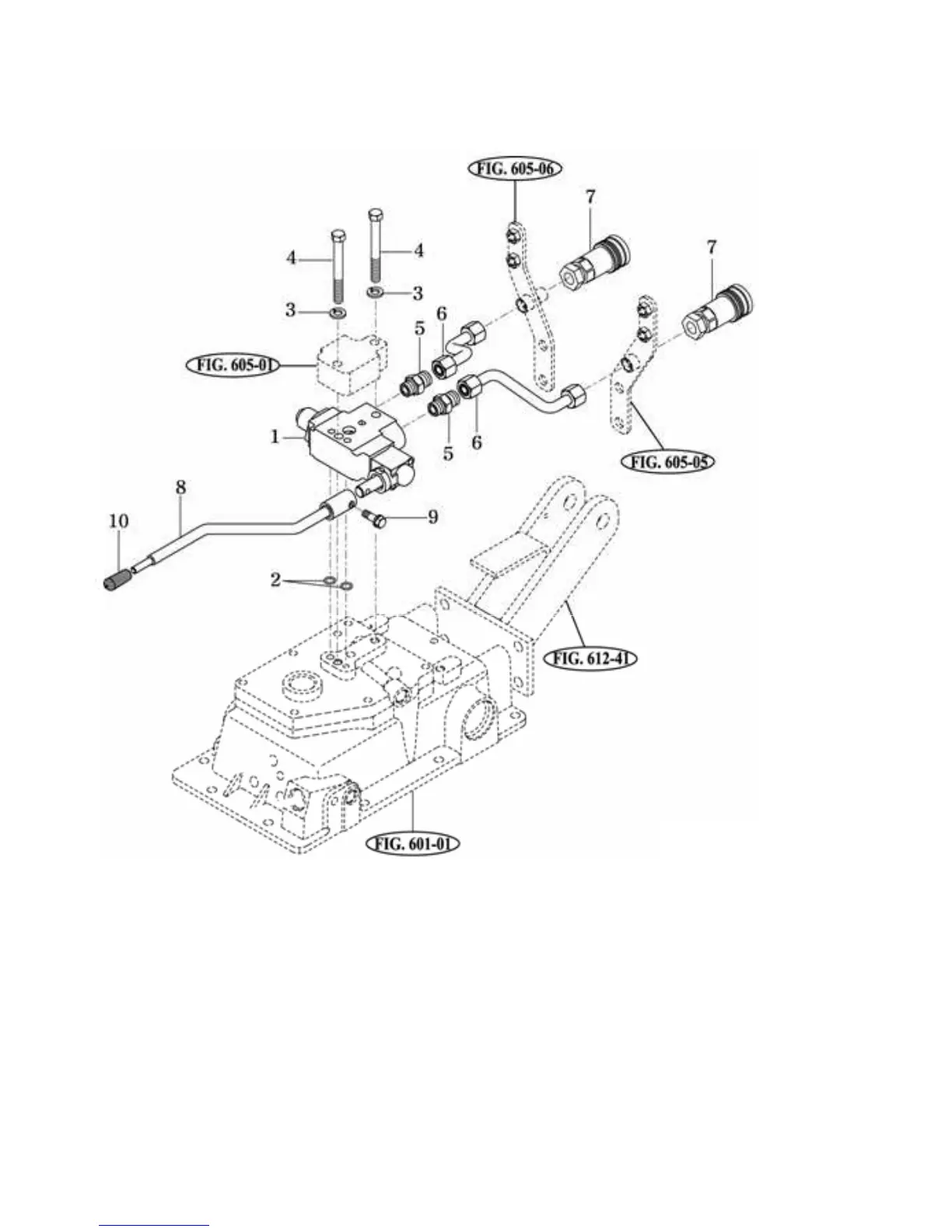

1.Remote hydraulic control valve( OPTIONAL)
1.VALVE , DETENT
2.O-RING , P10
3.O-RING , P16
4.BOLT , HEX M10X90
5.UNION , O-RING
9-16
Fig. 9-31 Remote hydraulic pump
6.PIPE , AUX VALVE
7.COUPLING A
8.LEVER COMP,
AUX VALVE
9.BOLT , HEX/S M8X25
10.GRIP , LEVER/RED

TYM T233 HST Specifications

General

Brand	TYM
Model	T233 HST
Category	Tractor
Language	English
