TYM T233 HST - Section 1. Radiator

2. Radiator

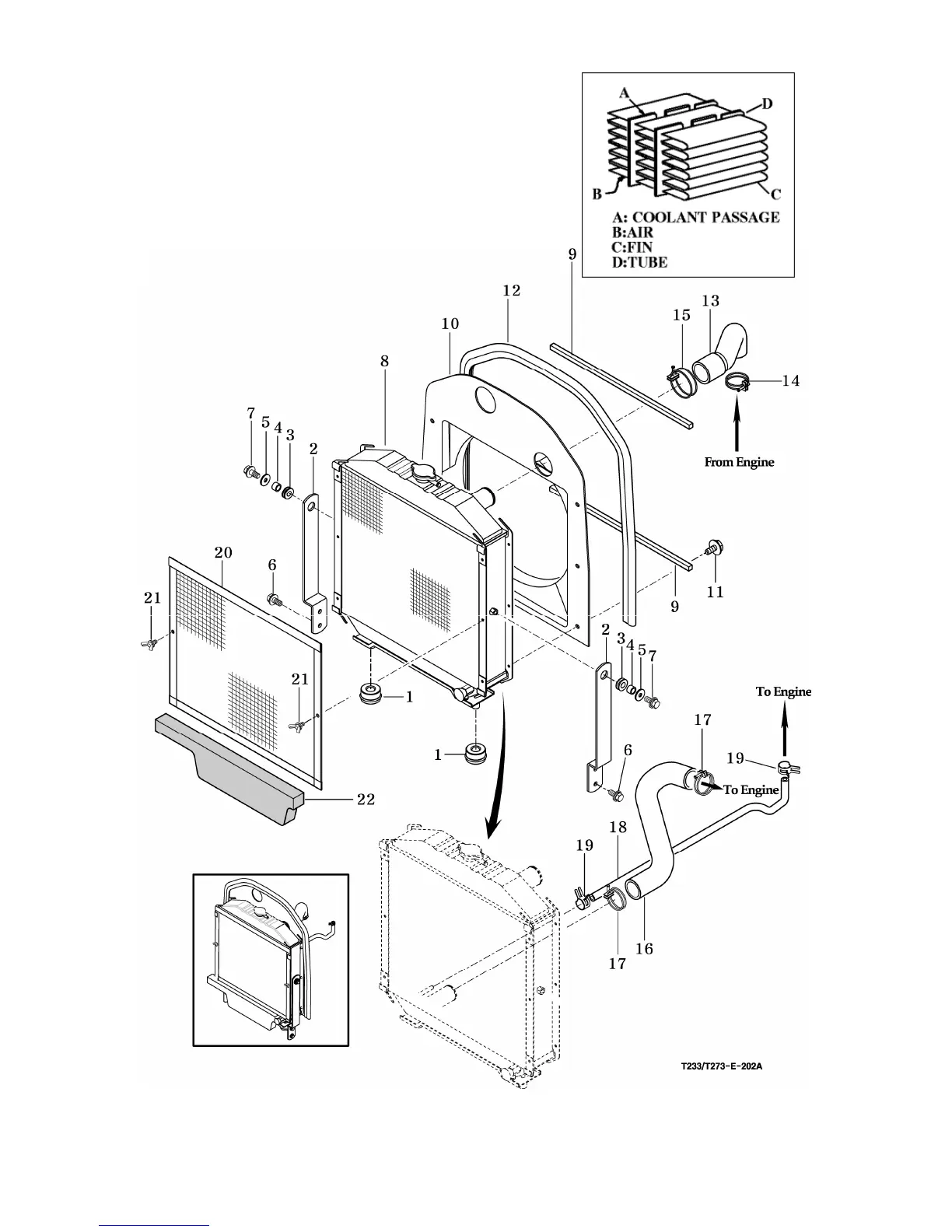

The radiator consists of radiator cores, a tank
to Flow coolant,side plates to install the radiator,
and a fan guide.
Fin-tube type cores are used and the cores and
tank is made of anti corrosive copper and
Copper alloy.
FIG.3-3
3-2
