TYM T233 HST - Section 7.Repair; Tractor Splitting(Front)

SECTION 7. REPAIR
1.TRACTOR SPLITTING (FRONT)
Note: It is not necessary to remove the flywheel
housing from the engine unless engine is
being removed. Split the tractor between the
tunnel and flywheel housing as outlined in
the story below.

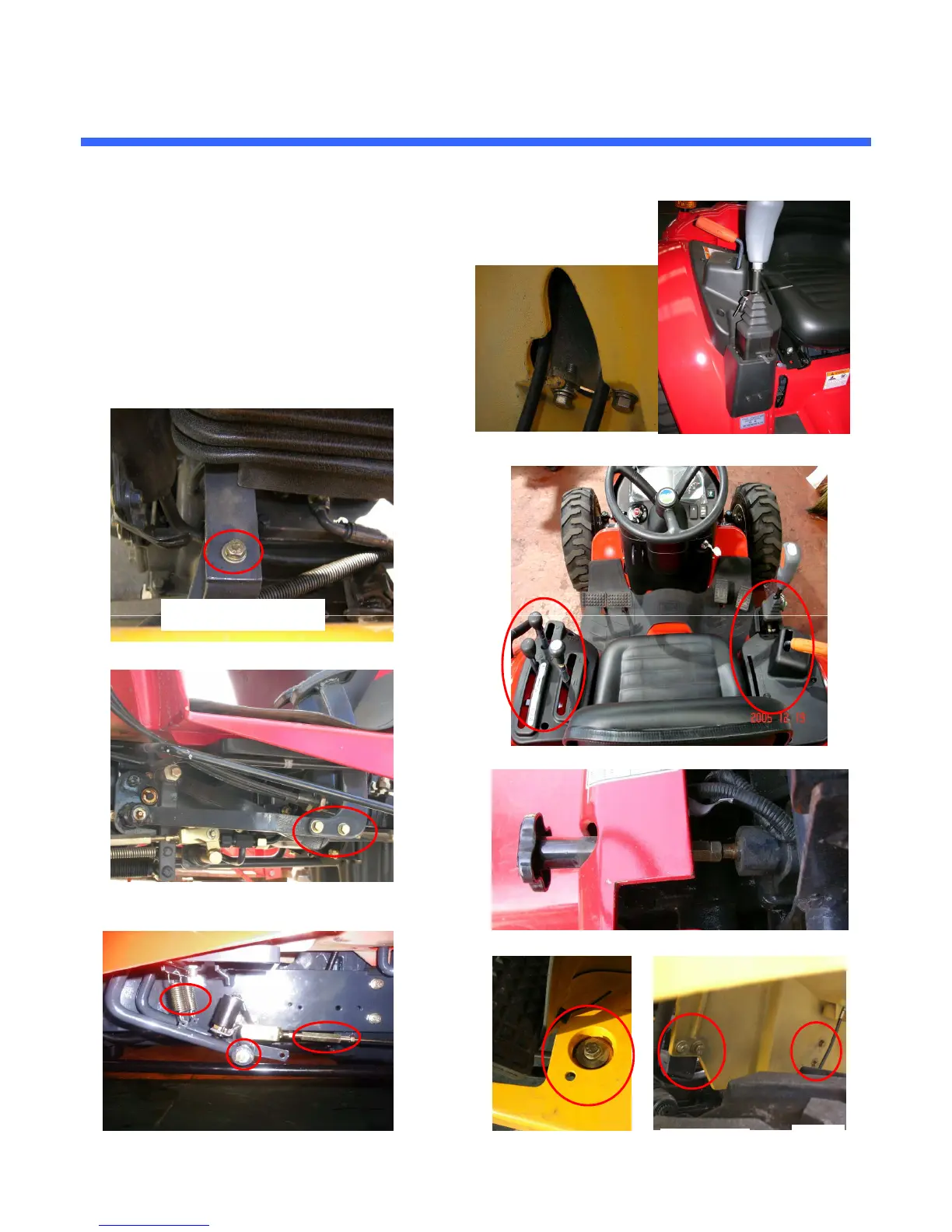

Prepare the Tractor:
1.Park tractor on a level surface. shut off engine.
2.Disconnect battery negative terminal.
3.Remove the seat and the floor mat.
Tow bolts (LH, RH)
6.Remove the joy stick
7.Remove the guide LH/RH and levers.
4-16
4.Remove the speed control pedals.
Tow bolts (LH, RH)
5.Remove the brake pedals.
(Spring, Snap ring, Turn buckle LH/RH)
8.Remove the slow return levers.
9.Remove the operator’s platform.
(LH, RH)
(LH, RH)
(RH)
