TYM T233 HST - Page 144

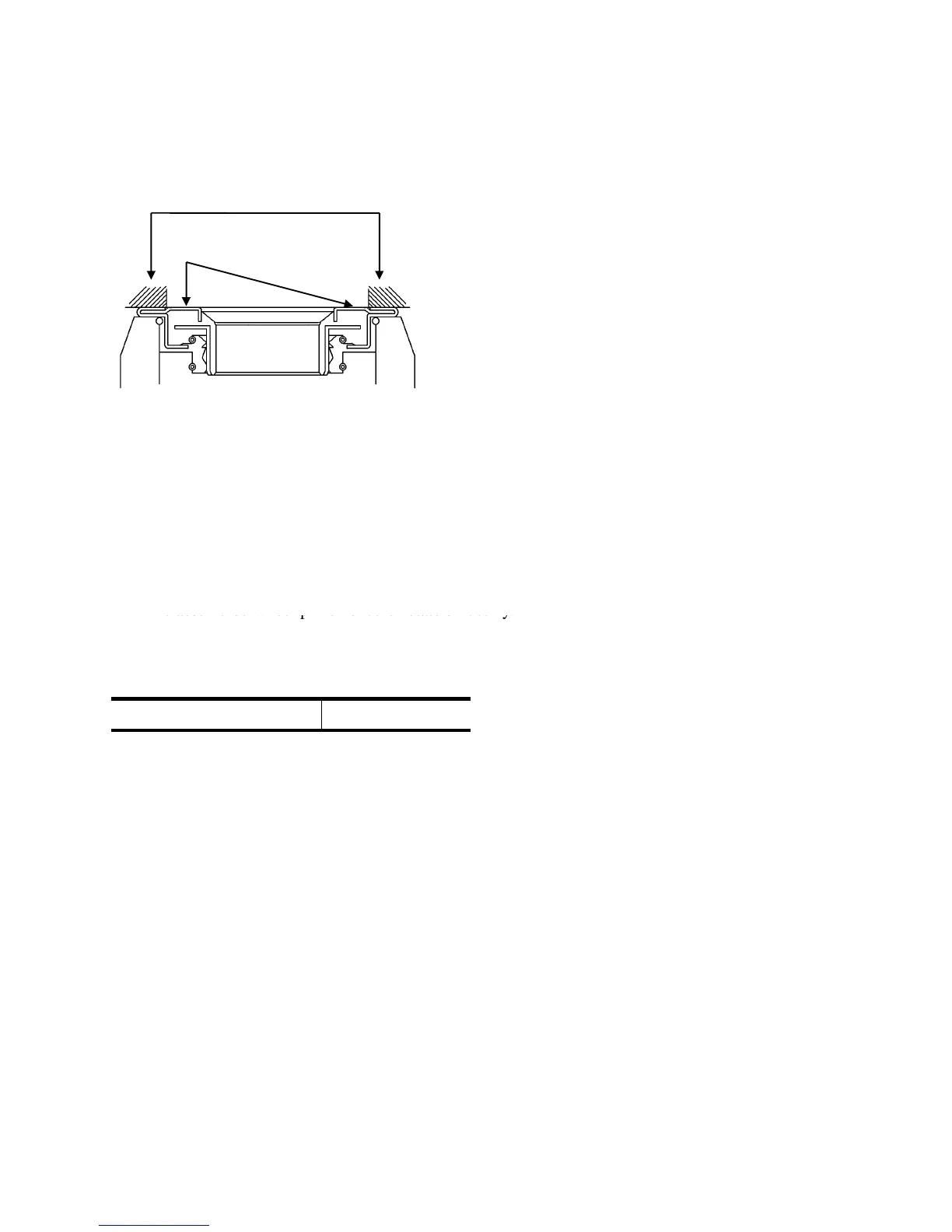

Fig.7-9
Apply force only to the shaded parts
Take care not to deform these portions
5) press the wheel shaft.
6) Install the wheel gear, the bearing, and snap ring on the wheel shaft and retain them.
7) Install the brake metal, the steel ball and the return spring
8) Install the friction plate, brake plate and the brake cover
Note : When installing the brake disc, Disc plate and separator should be arranged in correct order.
Apply an grease to the oil seal and take care not to be damaged when installing to the brake cam.
Pay particular attention to the installation of the snap ring
The assembled wheel pinion should rotate smoothly.
4) Replace the oil seal.
Install the bearing and the snap ring into the axle housing, and then press in the oil seal by applying
force only to the circumference as shown in the figure( Fig.7-9)
7-6
The assembled wheel pinion should rotate smoothly.
7) Apply adhesive (THREE BOND 1215) to the contact surfaces of the rear housing and rear transmission
case and then reassemble the rear housing by tightening the bolts to the specified torque.
Tightening torque 4.5-6.0 Kgf.m
