(4) GEAR
①With clean working fluid,surfaces are rarely scratched and should be smooth.
②If roughness can be felt by a finger nail, they are darkened,or the shaft diameter is less than 0.03 mm
replace the shaft.
③Usable shaft diameter is as below

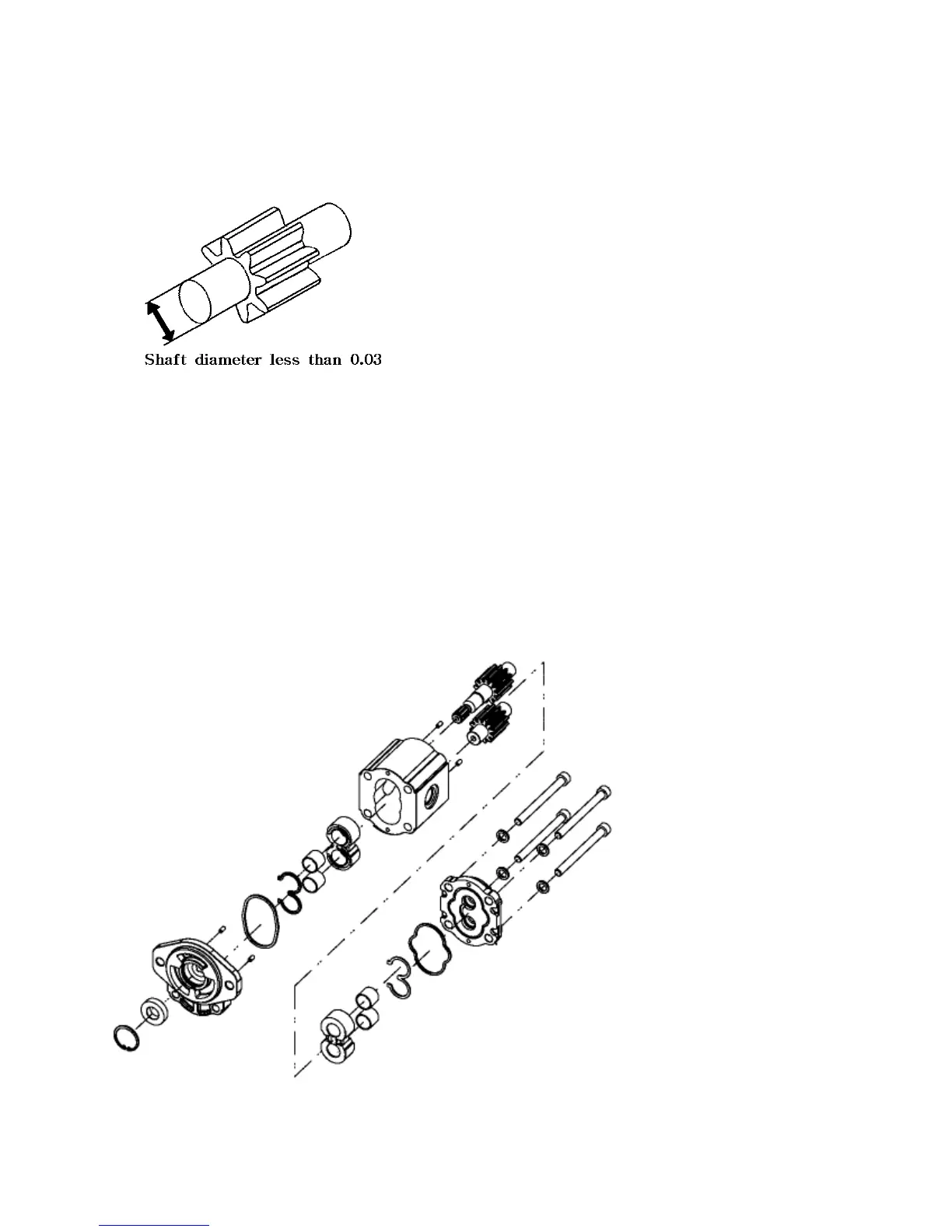

Fig.9-28 gear shaft
(5) Oil seal
The oil seal prevents oil leaks by its inner seal lip and dust from invading by its outer dust lip. Therefore if
an oil seal has damaged or deformed lips, it should be replaced.
(6)MEASUREMENT OF THE PUMP
The best way to measure for the pump is to use a special tester. But if it's not available, Use installed
Tractor Remove the plug in the delivery pipe on the right-hand side of the transmission case and install
a compression gauge to measure the pressure. Keep the engine speed at 2700 rpm and shift the position
To Next Page
