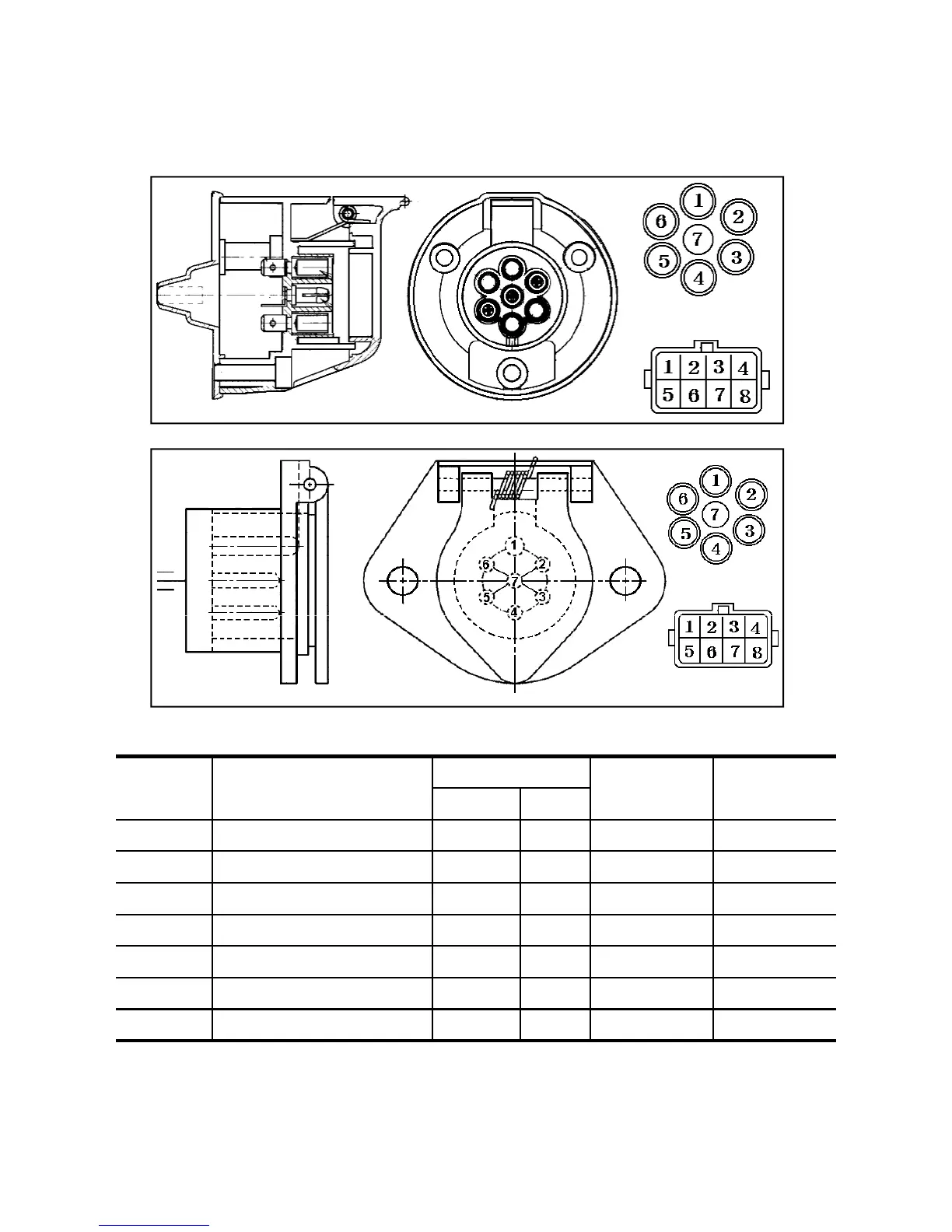

8.Trailer socket (Reference)
A hella’s 7-pin trailer socket is equipped as a standard equipment.Lamp on a trailer can be
operated through the socket.
A type
10-10
Note:
Lamp on the trailer should be of the same size or smaller than those on the trailer.
Fig.10-23
B type
Socket No. Description Color Specification Wire Housing
A type B type
1 Earth B W AV 1.25 1
2 Small light(Tail light) Y B AV 1.25 2
3 Turn signal (LH) GB Y AV 1.25 3
4 Stop Light WL R AV 1.25 4
5 Turn signal (RH) GY G AV 1.25 5
6 Rear Light (License plate) YW Br AV 1.25 6
7 Reserve light WG L AV 1.25 7
