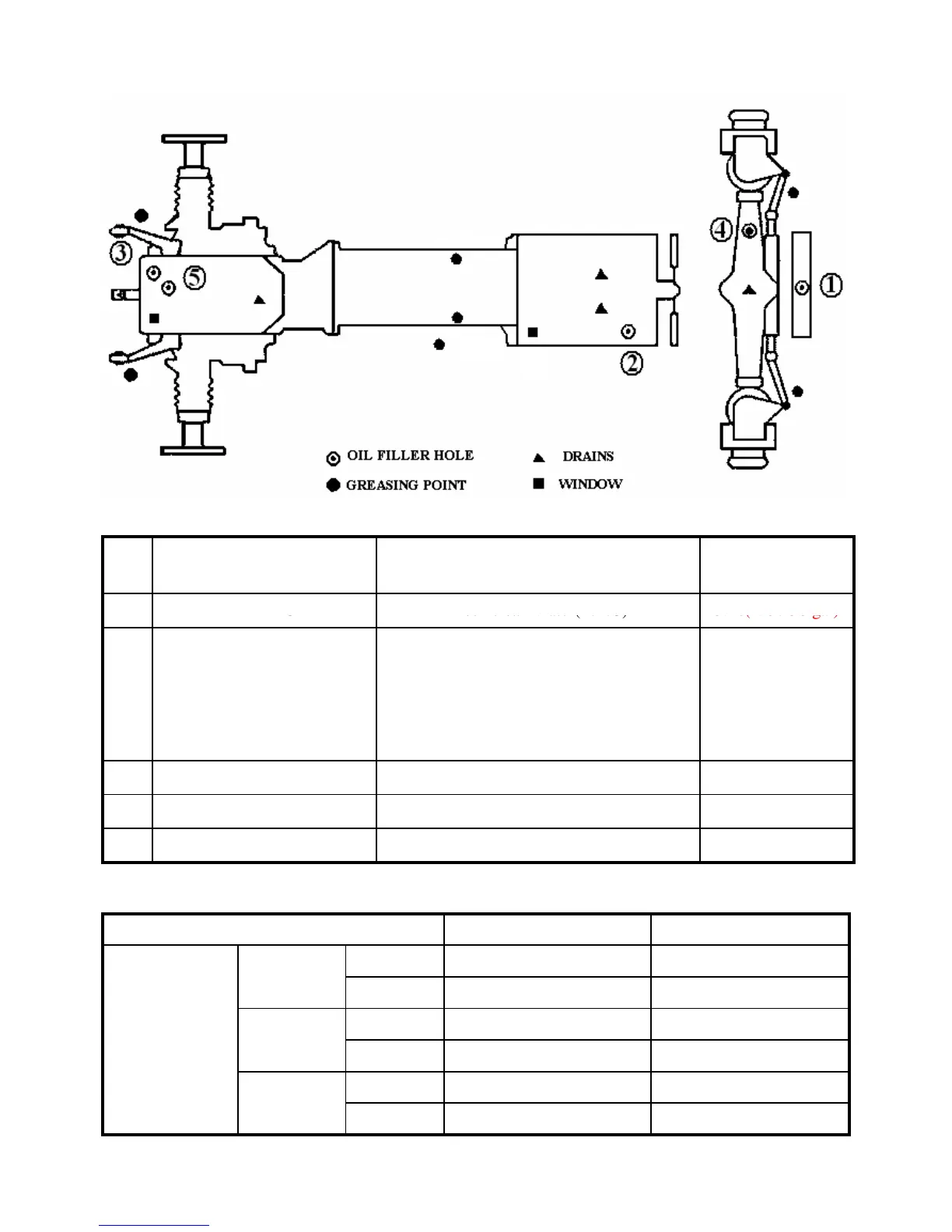

3. FILLING DIAGRAM & CAPACITY TABLE
TABLE 1-7
No. Filling point Fillings Quantity Liter
(US gal.)
1
RADIATOR
Fresh clean Water(L.L.C)
5.2ℓ(1. 37US gal)
1-23
Model T233 T273
Tread
R1 Front 6-12,4PR 6-14,4PR
Rear 9.5-16,4PR 11.2-20
R3 Front 23X8.50-12,4PR 23X8.50-12,4PR
Rear 12X16.5 ,4PR 12X16.5 ,4PR
R4
(Std.)
Front 23X8.50-12,4PR 23X8.50-12,4PR
Rear 12X16.5,6PR 12X16.5,6PR
Tire size and inflation
TABLE 1-8
1
RADIATOR
Fresh clean Water(L.L.C)
5.2ℓ(1. 37US gal)
2 ENGINE API : CD/CE grades
Above:25°C(77°F)…SAE30 or 10W-30
0°C to 25°C(32°F to 77°F)…SAE20 or
10W30
Below 0°C(32°F)…SAE 10W or 10W-30
4.3ℓ (1.14 gal)
3 TRANSMISSION CASE See next page* 17ℓ(4.49 US gal)
4 FRONT AXLE Gear oil #80 or #90 4.5ℓ(1.19 US gal)
5 Fuel tank Diesel fuel 25ℓ(6.6 US gal)
