TYM T233 HST User Manual

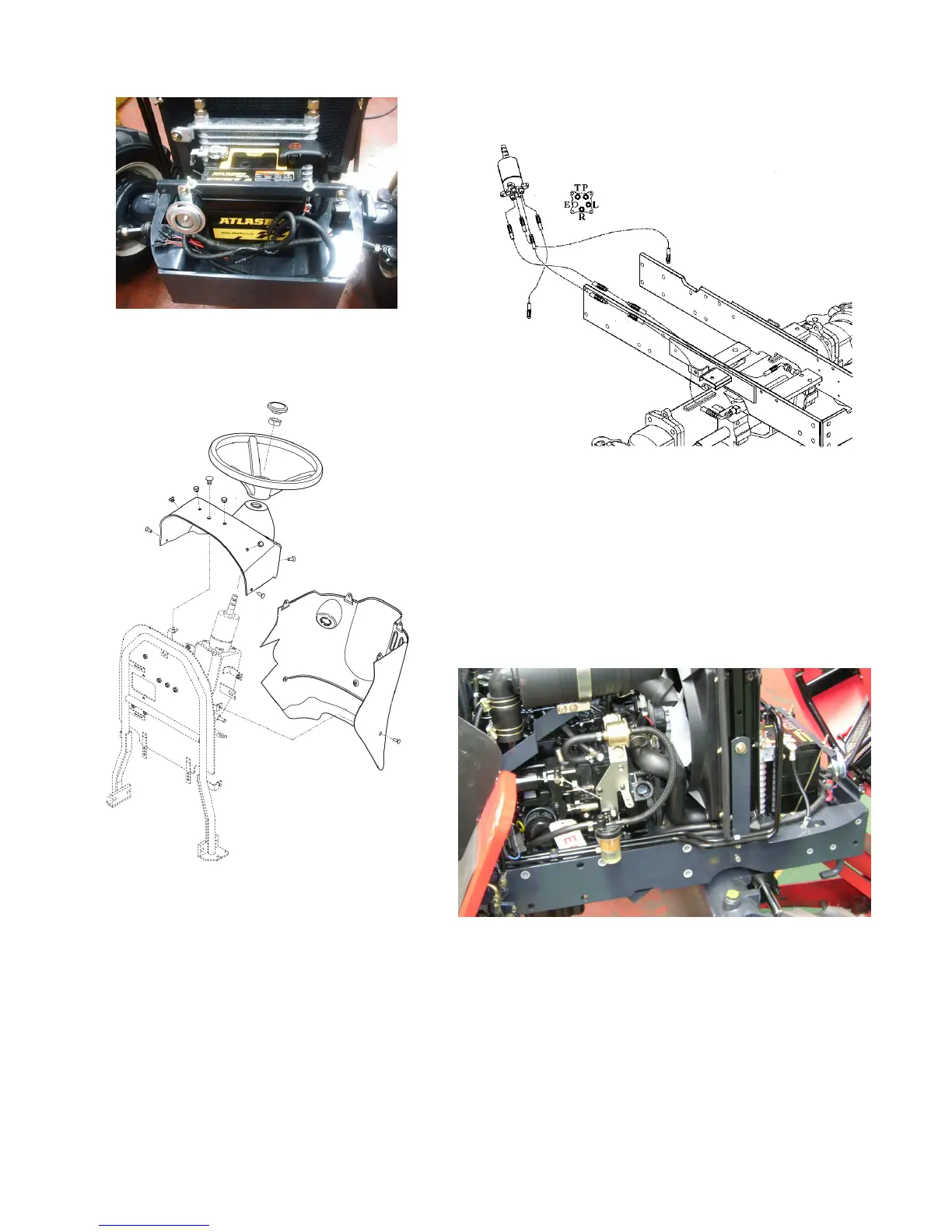

5) Disconnect the battery cables.
FIG.2-16
6) Disconnect the panel instrument set removing
bolts(4 nos.)
Note:
- Disconnect the linear shift control cable
- Disconnect the cable from both the steering lever side
and transmission.
9) Remove the mounting bolts and dismounting the
FIG.2-18
8) Disconnect the hydraulic hose from the power
steering (orbitrol)
FIG.2-17
Note:
-Lift up the panel set and disconnect
the wiring couplers.
7) Remove the cover.
9) Remove the mounting bolts and dismounting the
dash panel
FIG.2-19 hardware Disassembly
10) Disconnect the rubber hose from the suction
pipe.
2-9
