TYM T233 HST User Manual

2) Installation
Reassemble in reverse order of disassembly.
(1)Install the brake (LH and RH)
(2) join the rear axle and transmission
Note:
Make sure that the diff-lock shifter is fitted into
the groove in the dif-lock metal
(4) Reinstall the other removed parts.
(5) Mount the rear wheel.
(4) Refill the transmission with oil up to the
specified level
-Level up to fill the oil can be sought from the
rear side of rear transmission case(Window)
(6) Support the floor panel with a trestle or the
like.
(7) Remove the rear axle housing tightening bolts.

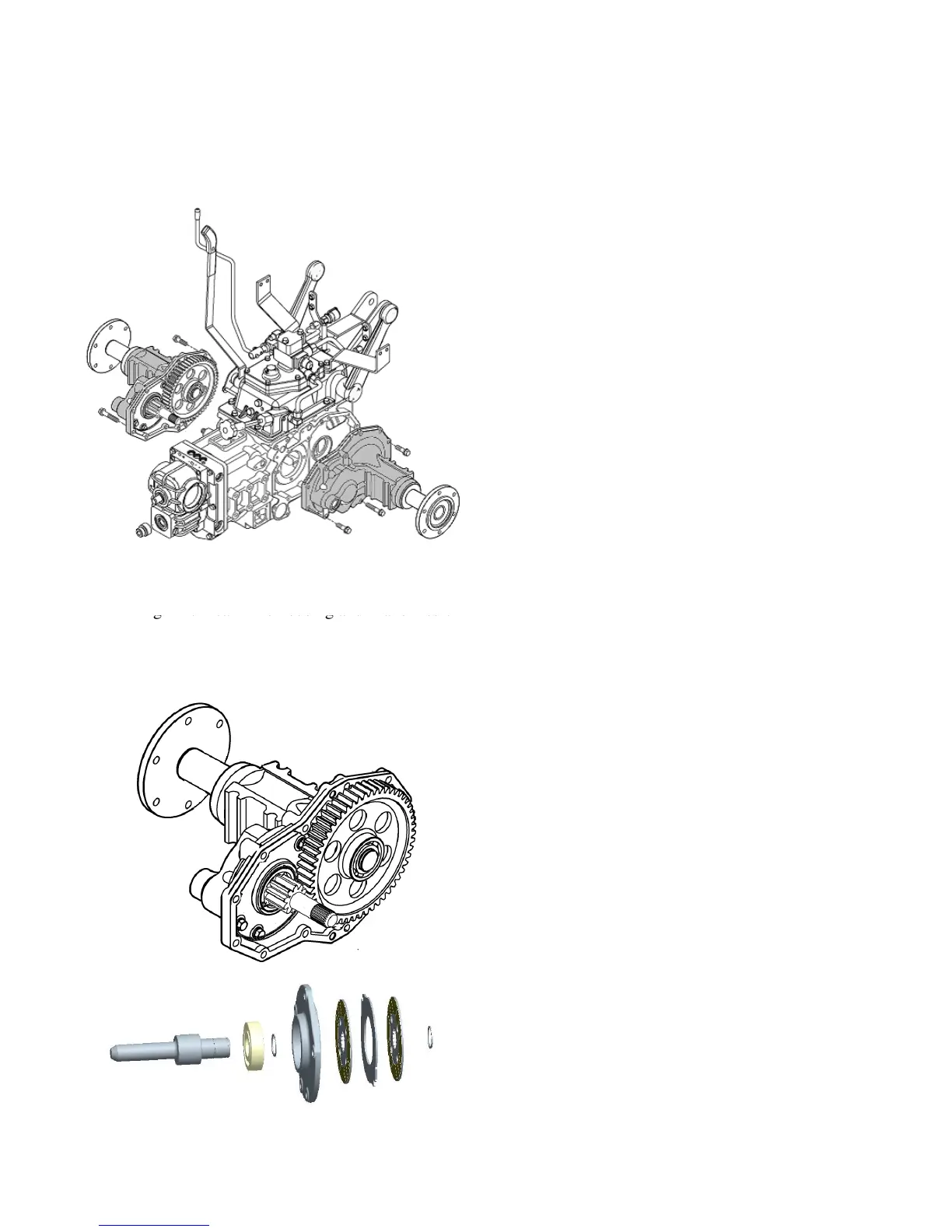

Fig.2
-
27 Rear Axle housing and Transmission
FIG.2-28Brake
2-12
(8) Detach the brake assembly from the
Rear axle housing(LH/RH)
Fig.2
-
27 Rear Axle housing and Transmission
