TYM T233 HST User Manual

2.ELEMENT AIR CLEANER
(1) SPECIFICATIONS.
Model T233HST/T273HST
Type Dry,paper element filtering type
Rated intake air volume (
㎡
/min.(cu.ft/min) 2.6(91.8)
air venting resistance (
㎜
Ag) 120 or less
Cyclone efficiency (%) 45 or over
Total filtering efficiency (%) 99.9 or over
Dust holding capacity(gr) 700
Filter material
Outer element P821575
inner element P822858
Remarks
Tested dust : SAE FINE
Dust density : 1.0 gr/
㎡
(0.93gr/sq.ft)
2) DISASSEMBLY
(1) Element removal
Remove the Clamping which clamps the cover
Remove the Clamping which clamps the cover
and take out the element.

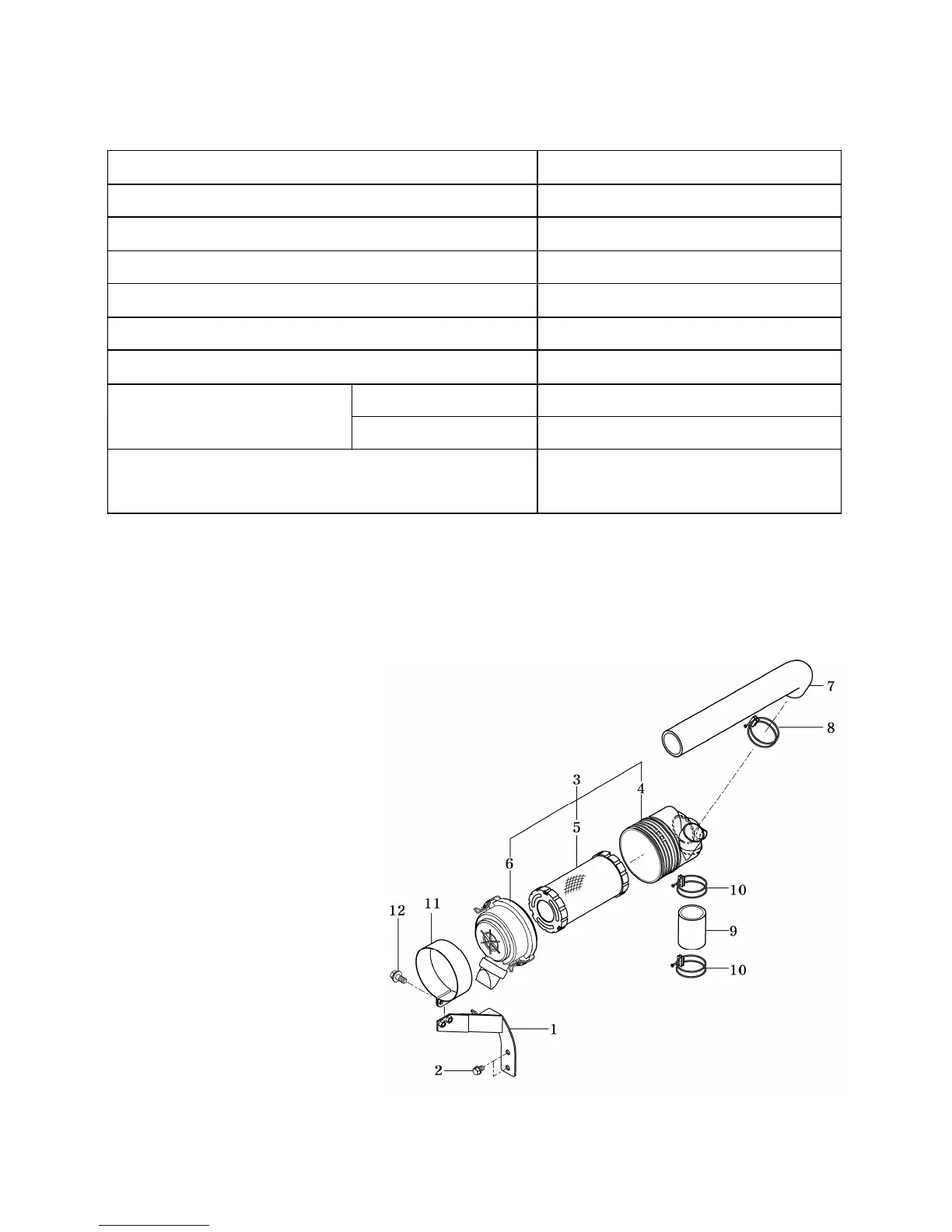

FIG.3-11
1:Bracket comp
2:Bolt
3:Air Cleaner assy
4: Body assy
5:Element
6:Cover assy
7: Hose air outlet
8: Clip ,60
9: Hose, air inlet
10:Clip 60
11: band,Air cleaner
12: Bolt,Hex/Sp
3-8
