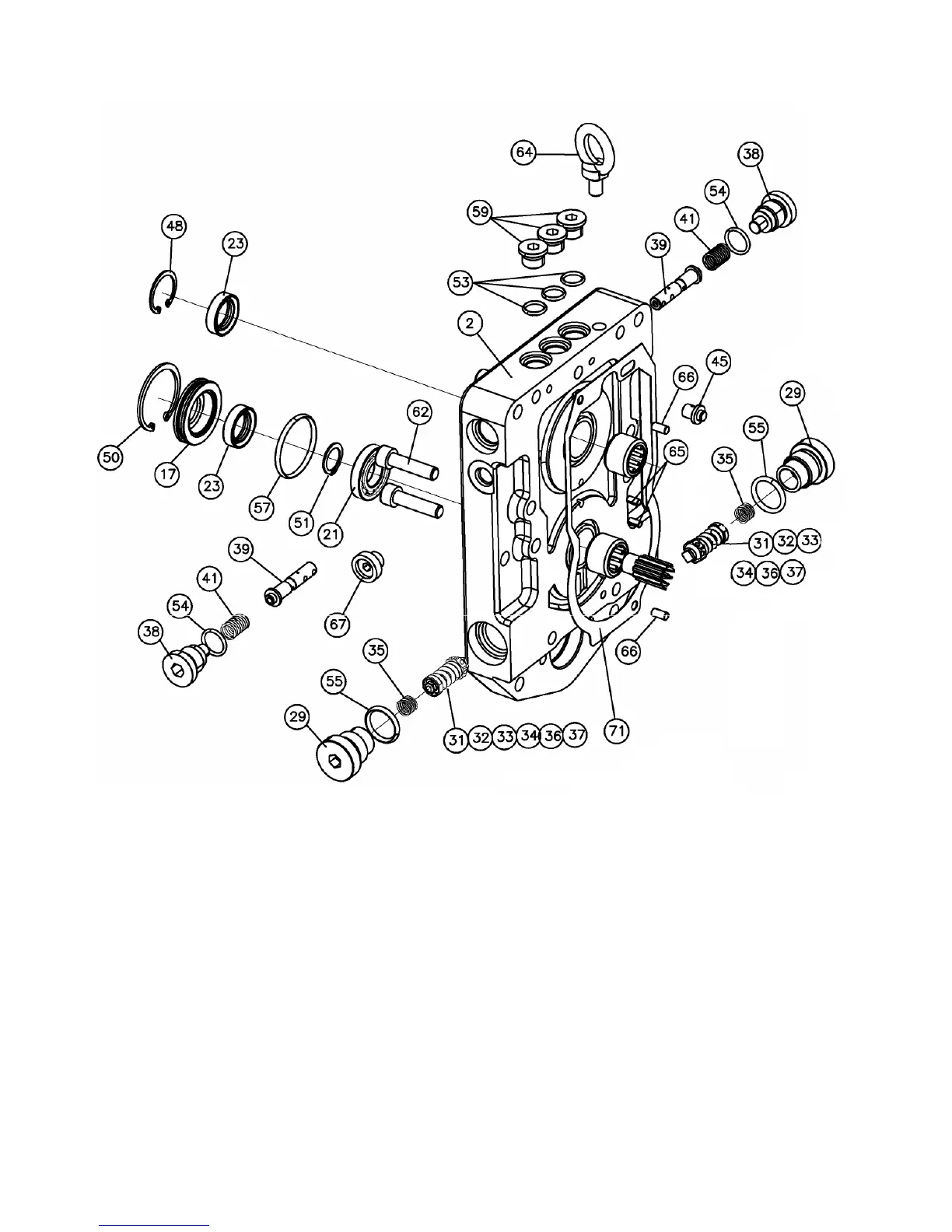

3. HST main pump case1
2.Body(Back plate) 17.Seal cover (M) 19.Needle bearing 21.Ball bearing 23.Oil seal
29.Plug(Relief) 31.Spring seat 32.Valve(Relief) 33.Seat(Relief) 34.Spring1(Relief)
35.Spring2(Relief) 36.Washer(Relief) 37.Nut(Relief) 38.Plug(Neutral) 39.Spool(Neutral)
41.Spring(Neutral) 48.Snap ring 50.Snap ring 51.Snap ring 53.O-ring
54. O-ring 55.O-ring 57.O-ring 59.RO Plug 62.Socket bolt
64.Eye bolt 66.Parallel pin 71.Filter
4-6 (1)
