Note : When removing the collar/coupling, take care
not to escape the balls or allow it to fall

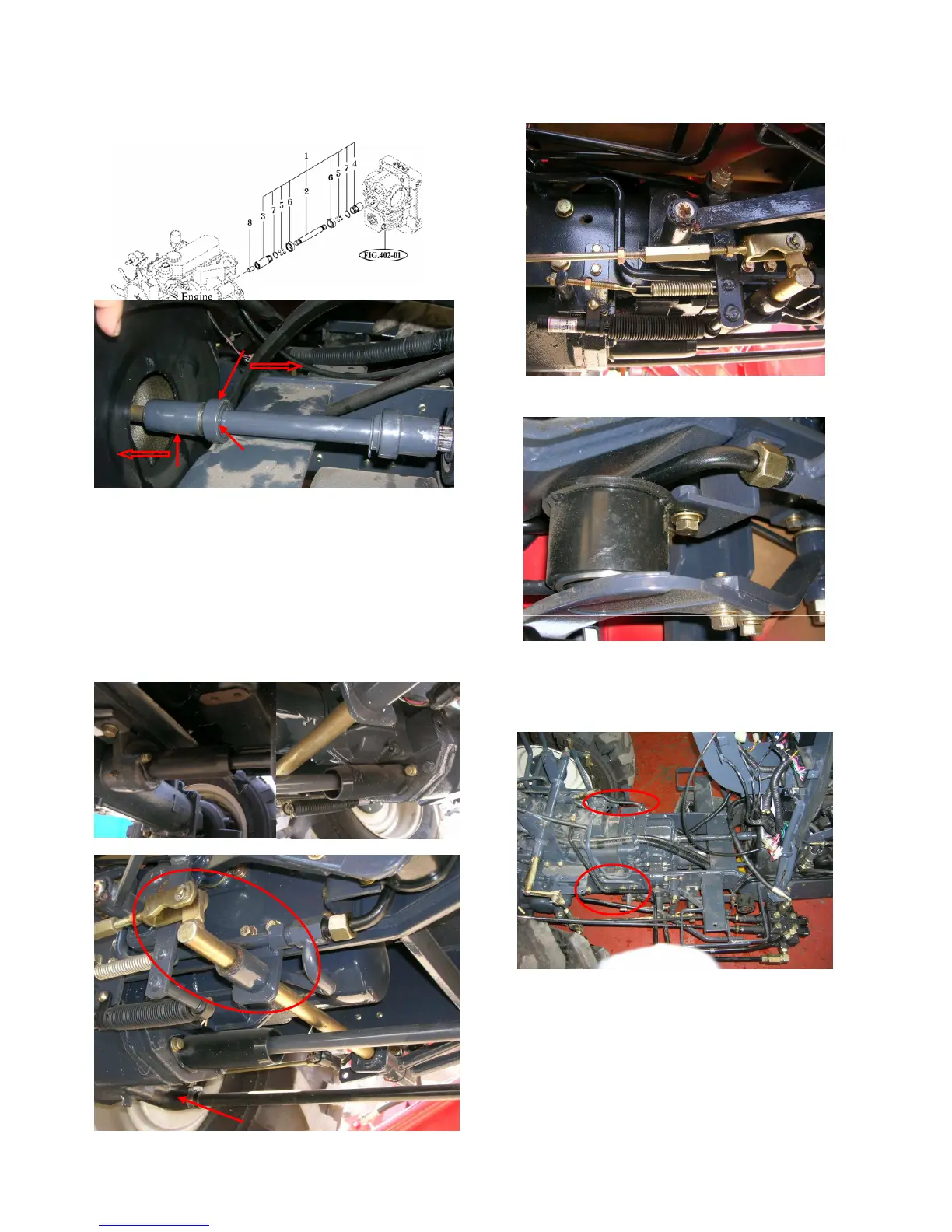

13.Remove the 4WD shaft couplers by removing snap
ring and sliding couplers onto shaft until clear of
16.Disconnect the linkage from hydrostatic
control system
Magnetic cruise
Snap ring
Collar, coupling
Coupling A
Disassembly
17.Remove a magnetic cruise next to hydrostatic
control pedal.
12.Disconnect the input drive shaft and couplers by
removing snap ring and sliding couplers onto
engine until clear of stub shaft.
14.Remove the brake linkage, and remove brake rods
from tractor
15.Remove hydraulic pressure tube clamp
4-18
Front 4WD shaft Rear
Tube
Brake linkage
IMPORTANT :
Check for ,and disconnect any additional accessory
wires or hydraulic tubes connecting rear half to front
half before splitting tractor.
Note length and location of screws when removing
18.Lift the engine with the hoist and hold the
front axle bracket with a stands or the like
19.Remove 12 screws connecting tunnel to the
rear transmission case.
20.Gently pry around edges of flanges to separate
tractor halves.
To Next Page
