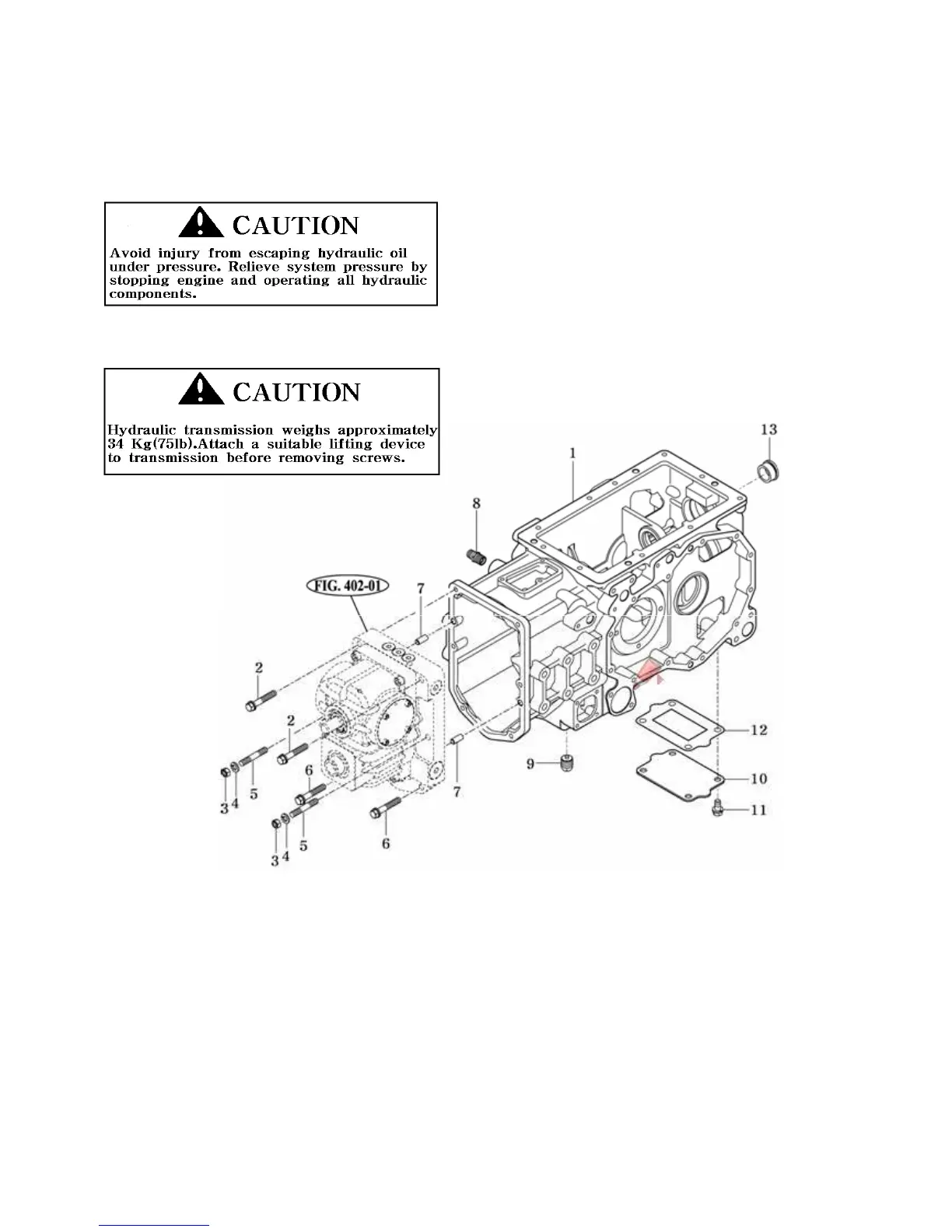

2. HYDRAULIC TRANSMISSION REMOVAL & INSTALLATION
Removal :
1.Park tractor on level surface.Stop engine and release hydraulic pressure by operating all controls.
2.Separate tractor engine and tunnel sections (See TRACTOR SPLITTING(FRONT).
3.Remove four bolts, two nuts, and two lock pins, and disconnect transmission forward
4. Note length and location of screws when removing.
NOTE : Oil may drain from the pump and motor unit after it is removed.Have a suitable container
ready to catch excess oil.
Installation : Installation is the reverse of removal.
- Clean flanges of transmission before applying sealant.
- Apply TB1215 sealant to flanges of transmission where it contacts the hydrostatic unit.
- Tighten the screws attaching transmission to hydrostatic unit.
IMPORTANT : If neutral adjustment locking screws was loosened, neutral adjustment procedure
must be performed.See “HYDROSTATIC PEDAL AND NEUTRAL ADJUSTMENT”
4-20
