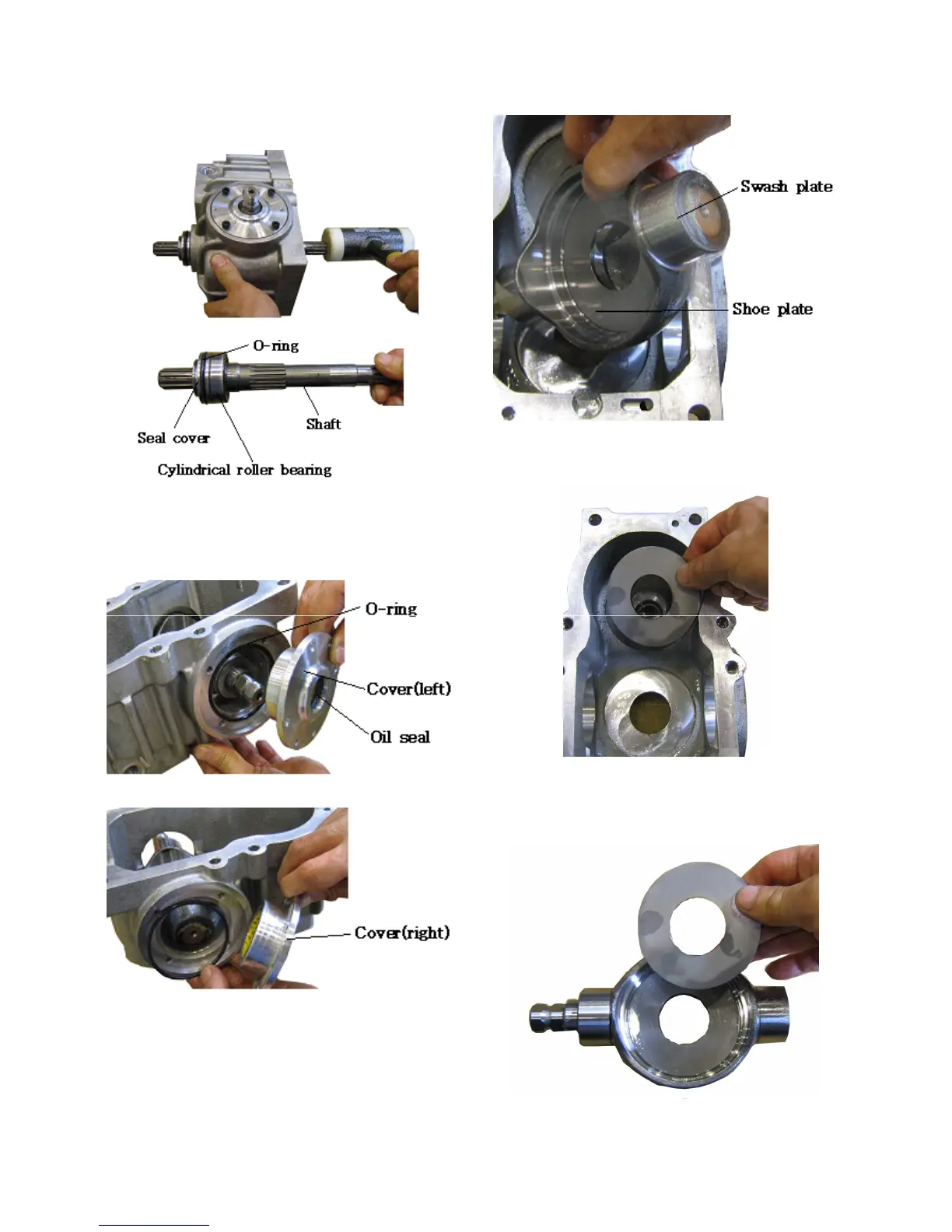

6. Remove snap ring of pump
at
rear side.
7. Remove the shaft of pump by usi
ng rubber
hammer
.
8.
Remove
the
cover
and
o-ring
of
right
and
left
side,
for
removing
swash
plate.
9. Remove swash plate obliquely
.
10. Remove shoe plate of motor side
in the
housing.
4-24
1
1. Remove
shoe plate of pump side
in the
swash
plate.
79
81
Table of Contents
Tymtym
2
Table of Contents
2
Chapter 1. Introduction
3
Safety Signs
8
Safety Decals
13
Maintenance Chart
27
Table of Contents
29
Before Operation
30
Precautions to be Followed When Installing Standardized Parts
30
Section 2. Operation Chart for Disassembly
33
And Reassembly by Major Blocks
33
Section 3. Separation of Major Components
34
Separation of the Front Axle and Axle Bracket
34
Separation of the Engine and Front Axle Bracket
35
Separation of the Engine and Transmission
37
Separation of the Transmission and Rear Axle Housing
40
Separation of the Transmission and MID PTO
42
Separation of the Transmission and Cylinder Case
43
Chapter 3 Engine Accessories
44
Chapter 2 . Disassembly and Reassembly of Major Point
45
Section 1. Radiator
46
Radiator
47
Specifications
47
Removal of the Radiator
47
Inspection of each Part
47
Radiator Reassembly
49
Daily Inspection
49
Trouble Shooting
50
Section 2. Air Cleaner System
51
General Description
51
Inspection of each Part
53
Cleaning of the Air Cleaner
53
Element Installation
54
Chapter 4. Hst System
55
Section 1. Specifications 1
56
Section 2. Component Location
58
Hydraulic Hoses and Lines
58
Hydrostatic Transmission
59
Hydrostatic Control Linkage
63
Hydrostatic System Schematic
64
Section 3. Troubleshooting
65
Section 4. Diagnostics
66
Section 5. Theory of Operation
67
Hydrostatic System
67
Section 6.Tests and Adjustments
68
Hydrostatic Pedal and Neutral Adjustment
68
Hydrostatic Pump Pressure Test
69
Charge Pump Pressure Test
70
Hydraulic System Bleed Procedure
71
Section 7.Repair
72
Tractor Splitting(Front)
72
Hydrostatic Transmission Disassembly
77
Chapter 5 Transmission
85
Section 1.General Description
86
Wheel Driving System
86
PTO Drive System
86
Power Train Diagrams
86
Section 2. Specifications
87
Wheel Drive System
87
PTO Drive System
87
Section 3.Disassembly,Inspection,And Reassembly
88
HST System and Change Gear(Front Transmission)
88
MID PTO Stopper
98
MID PTO Stopper Operation
99
Rear Transmission
100
Shifter and Related Parts
109
Section 4.Trouble Shooting
119
Wheel Drive System
119
PTO Drive System
120
Chapter 6 Front Axle
122
Section 1.General Description
123
Section 2. Specifications
124
Section 3.Disassembly,Inspection,And Reassembly
125
Center Pivot
125
Disassembly
126
Inspection
126
Reassembly
126
Front Differential
128
Disassembly
129
Inspection
129
Reassembly
130
Final Case
132
Inspection
134
Reassembly
135
Steering Cylinder
136
Section 4.Trouble Shooting
137
Chapter 7. Rear Axle and Brakes
138
Chapter 5 . Transmission
138
Section 1.General Description
139
Section 2. Specifications
140
Rear Axle Housing and Brake System
141
Disassembly
142
Inspection
142
Reassembly
143
Section 3.Disassembly,Inspection,And Reassembly
141
Section 4.Trouble Shooting
145
Chapter 8 Power Assisted Steering System
146
Power Assisted Steering System
147
Section 1.General Description
147
Section 2. Specifications
148
Gear Pump
148
Oil Tank
148
Section 3. Function
149
Technical Data
150
Section 4.Disassembly,Inspection,And Reassembly
152
Special Tools
153
Disassembly
153
Reassembly
154
Section 5. Troubleshooting
158
Chapter 9 Hydraulic System
161
Chapter 8 . Power Steering System
161
Section 1. General Description
162
Section 2.Specifications
163
Section 3. Major Component of the Hydraulic System
164
Hydraulic System
164
Flow-Divider
165
Flow-Control Valve(Slow-Return Check Valve)
168
Gear Pump
171
Filter
176
Section 4. Remote Hydraulic Control
177
Remote Hydraulic Control Valve(Optional)
177
Section 5.Hydraulic System
180
Hydraulic Cylinder
180
Linkage(Internal)
183
Linkage(External)
184
Main Control Valve
185
General Description
185
Specifications
185
Operation
189
Chapter 10 Electrical Accessory and Instruments
198
Section 1. General Description
199
Section 2. Specifications
199
Section 3. Battery
200
Inspection
200
Inspection of Electrolyte Level
200
Inspection of Electrolyte Specific Gravity
200
Battery Testing Chart
201
SECTION 4. Meters and Switches
203
Meters
203
Removal
203
Tacho/Hour Meter
203
Fuel Gauge and Fuel Gauge Sensor
203
Thermometer
204
Starter Switch
204
Combination Switch
205
Stop Light Switch
206
Relay Unit
206
Fuse
206
Section 5. Earthing Point
209
Section 6. Wiring Diagram
210
Section 7. Troubleshooting
211
Chapter 11. Service Standard and Other Information
216
Section 1. Service Standards
217
Engine Accessories
217
Clutch Damper
218
Rear Axle
220
Power Steering System
220
Hydraulic System
220
Electrical Equipment
222
Section 3. Conversion Tables
225
