TYM T233 HST User Manual

1.HST Unit
2.Pin
3.Case, rear transmission
4.Washer,spring
5.6.7.8.Bolt, Nut, Stud bolt
Fig.5-3
1.1 Disassembly.
(1) Removal of HST system and related parts.
Separate the engine from the rear transmission
referring to the paragraph of SECTION 7.
REPAIR in CHAPTER 4.
5-4
3.Clutch, PTO Clutch
4.Shaft PTO Clutch
5.Bearing,Ball

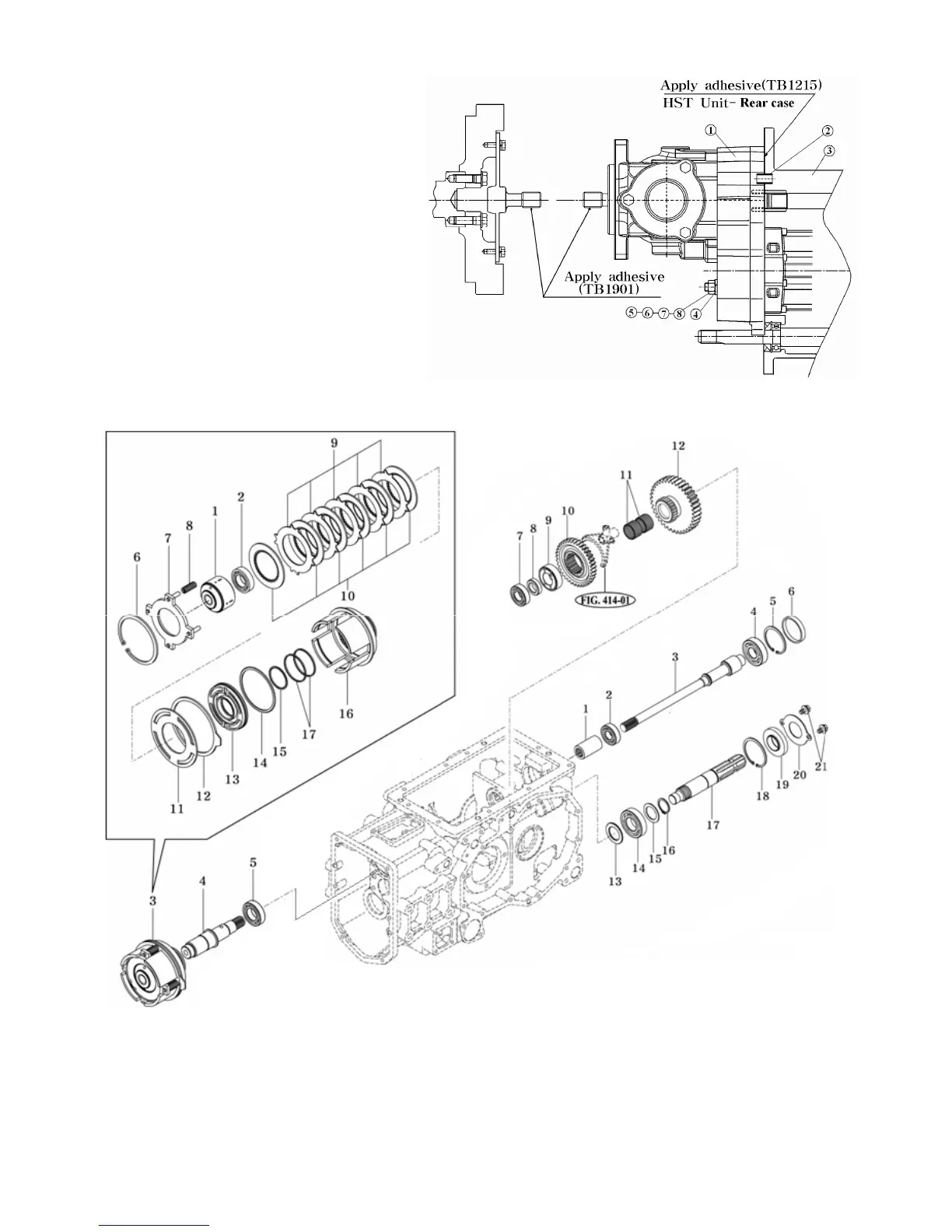

1.COUPLING 2.BEARING , BALL 3.SHAFT , PTO COUNTER
4.BEARING , BALL 5.C-RING , HOLE 6.SEAL , 62
7.BEARING , BALL 8.COLLAR ,25X40X12 9. HUB , 35X62X20
10.GEAR , SPUR 41T 11.BEARING , NEEDLE.ROLLER
12. GEAR , SPUR 53T 13.WASHER , 35X55X3 14.BEARING , BALL
15.COLLAR , 35X50X2 16.C-RING , SHAFT 17.SHAFT , PTO
18.C-RING , HOLE 19.SEAL ASSY , OIL
20.COVER 21. BOLT , HEX/SP
Fig.5-4
