2) Forward and reverse arm assembly
Magnetic cruise
Holder comp
1. HOLDER COMP
2. BOLT , HEX
3. WASHER , SPRING
4. NUT , HEX/2
5. PIN COMP, REVERSE
6. BOLT , HEX/S
7. PIN COMP , FORWARD
8. BOLT , HEX/S
9. C-RING , SHAFT
10. ARM COMP , FORWARD
12. WASHER , PLAIN
13. BUSH , 20X23X20
14. WASHER , PLAIN
15. BEARING , BALL
16. PIN , SPLIT
17. CAM SUB ASSY
18. ARM COMP , CAM
19. BEARING , BALL
20. WASHER , PLAIN
21. PIN , SPLIT
22. BUSH , 20X23X20
23. PIN , NEUTRAL
24. BOLT , HEX FINE
5-12
(1) when assembling the forward and reverse arm to pin , be sure to apply grease.
(2)Full grease after assembling the nipple, and apply grease to all surface in the linkage.
(3) Install Ball bearing carefully so as not to damage to them.
(4)When assembling the cam comp to the pin, be sure to apply grease.
(5)Be sure to check the spring has enough tension.
(6)When setting the hydrostatic control pedal with a neutral pin, tighten the bolt(24) after check
the pedal has neutral position (Refer to the section 6 in the chapter 4)

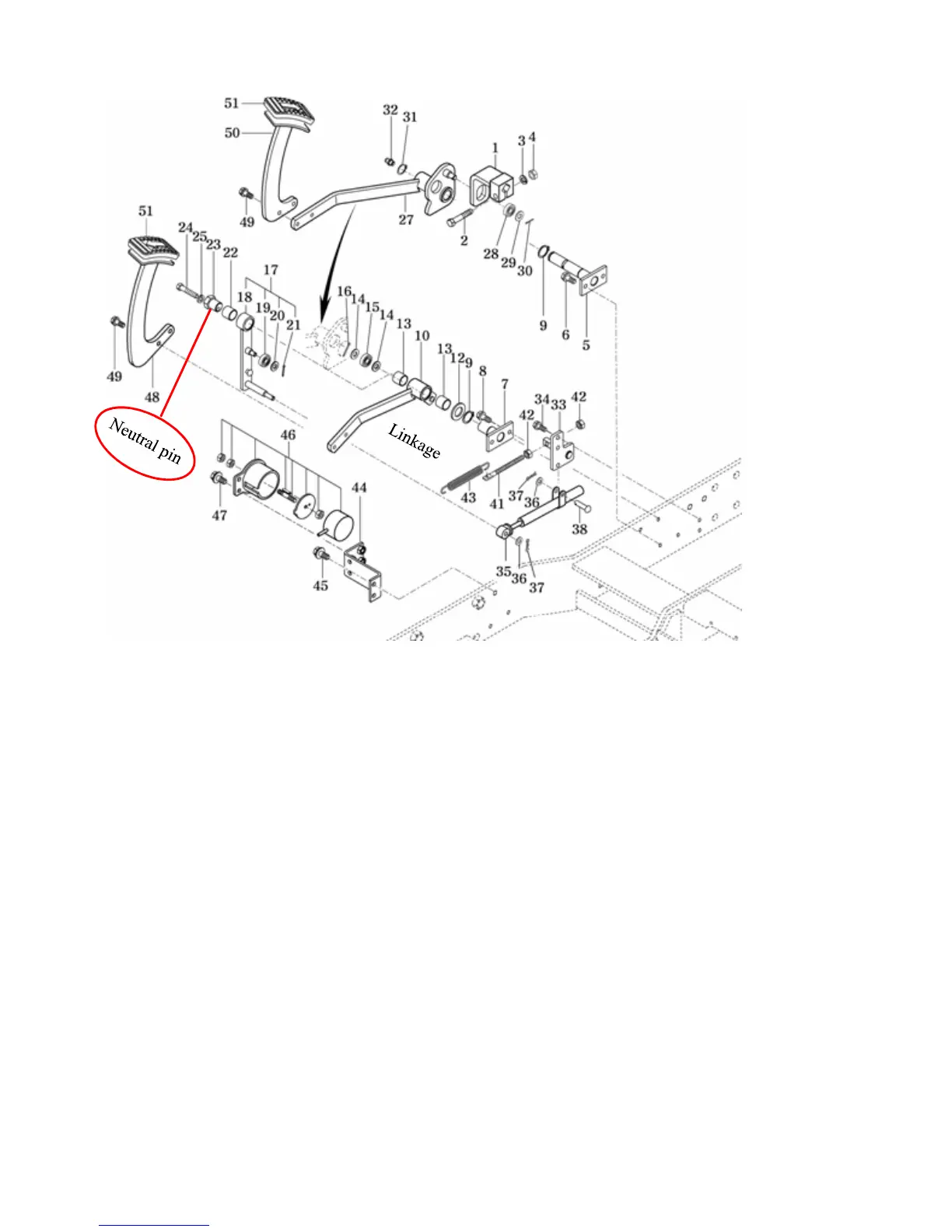

Fig.5-18
24. BOLT , HEX FINE
25. WASHER , SPRING
27. ARM COMP, REVERSE
28. BEARING , BALL
29. WASHER , PLAIN
30. PIN , SPLIT
31. C-RING , SHAFT
32. NIPPLE , GREASE/A-M6F
33. PIN COMP , SPRING
34. BOLT , HEX/S
35. DAMPER , OIL
36. WASHER , PLAIN
37. PIN , SNAP
38. PIN , YOKE
41. ROD , CHAIN(TENSION)(82)
42. NUT , HEX/2
43. SPRING , RETURN
44. BRACKET COMP , CRUISE
45. BOLT , HEX/SP
46. MAGNETIC ASSY , CRUISE
47. BOLT , HEX/SP
48. PEDAL COMP, FORWARD
49. BOLT , HEX/S
50. PEDAL COMP, REVERSE
51. PAD
